Sortimat SMS 150 - Page 10

10

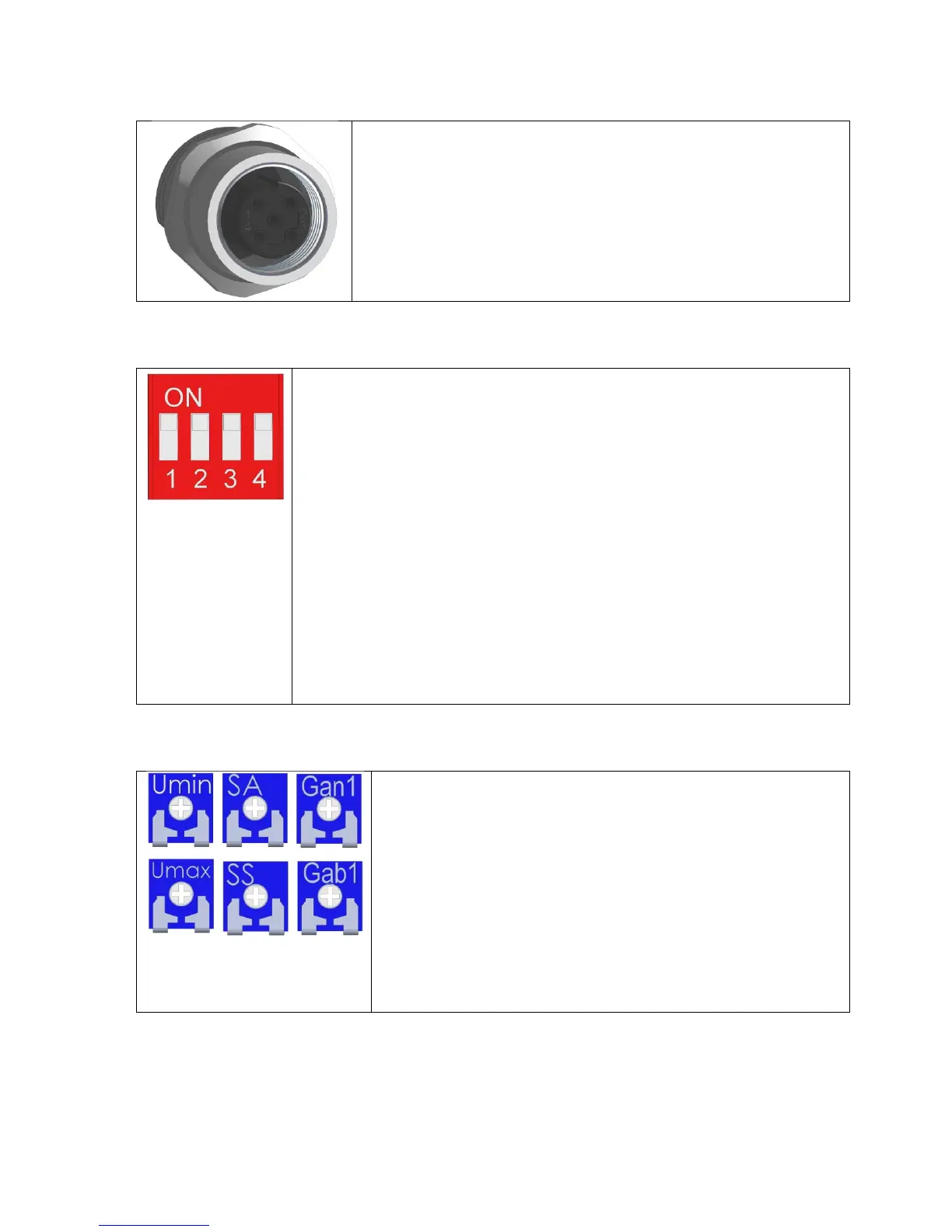

Connection
s
ensor /
control input
Pin 1 - +24 VDC / max.50mA / PNP
Pin 2 – NotConnected
Pin 3 - ground
Pin 4 - Input 1
The +24VDC supply is isolated to 230VAC und +5VDC side
of the CPU !
Programmi
ng
Dip 1 – Frequency 50/25Hz
OFF – 50Hz
ON – 25Hz
Dip 2 – Setpoint fixed
OFF - Setpoint-potentiometer active
ON - Setpoint-potentiometer inactive
Value fixed by switching
Dip 3 - Control
OFF - Output has reaction on control input and
Closer/opener
ON - Output always ON, no reaction on control
Input and closer/opener
Dip 4 - Input 1
OFF – value opener
ON - value closer (input 1 inverted)
Right rotary
Min – left limit stop
Max - right limit stop
Values
Umin – Low limit of the output
Umax – High limit of the output
SA – Soft start
SS – Soft stop
GAN 1 – Turn ON delay input 1
GAB 1 – Turn OFF delay input 1
