SORVALL®
Centrifuges
System Descriptions:
Electrical
6-6.
Power
Switch
(Circuit
Breaker
CB1)
(refer
to
figure
6-4)
The
power
switch
(circuit
breaker
CB1) controls
power
to
the
centrifuge
circuits.
When the
centrifuge
is
plugged
in
and
the
power
switch
is
set
to
"I"
or
ON,
the
power
indicator
lamp
lights,
thereby
signaling
to the
user
that
power
is
applied
to
the
centrifuge.
When
the
power
switch
CB1
is
on,
power
from
the wall
receptacle
passes
up
through
the
switch and out
to Plug/Jack connectors
P/J3 and
P/J
10
and terminal
block
TB
1.
P/J1
Ac In
11-
1
115Vac/60Hz
ft».\
3
220
Vac/50 Hz
V^V
rh
2T-
Ace
In
^T-^
--L^
-0^0<
^AcOut
————————————^- To
P3-1
2
>.——————————^
To
P10-1
——————————————^
To
P3-4
^
Ace
Out

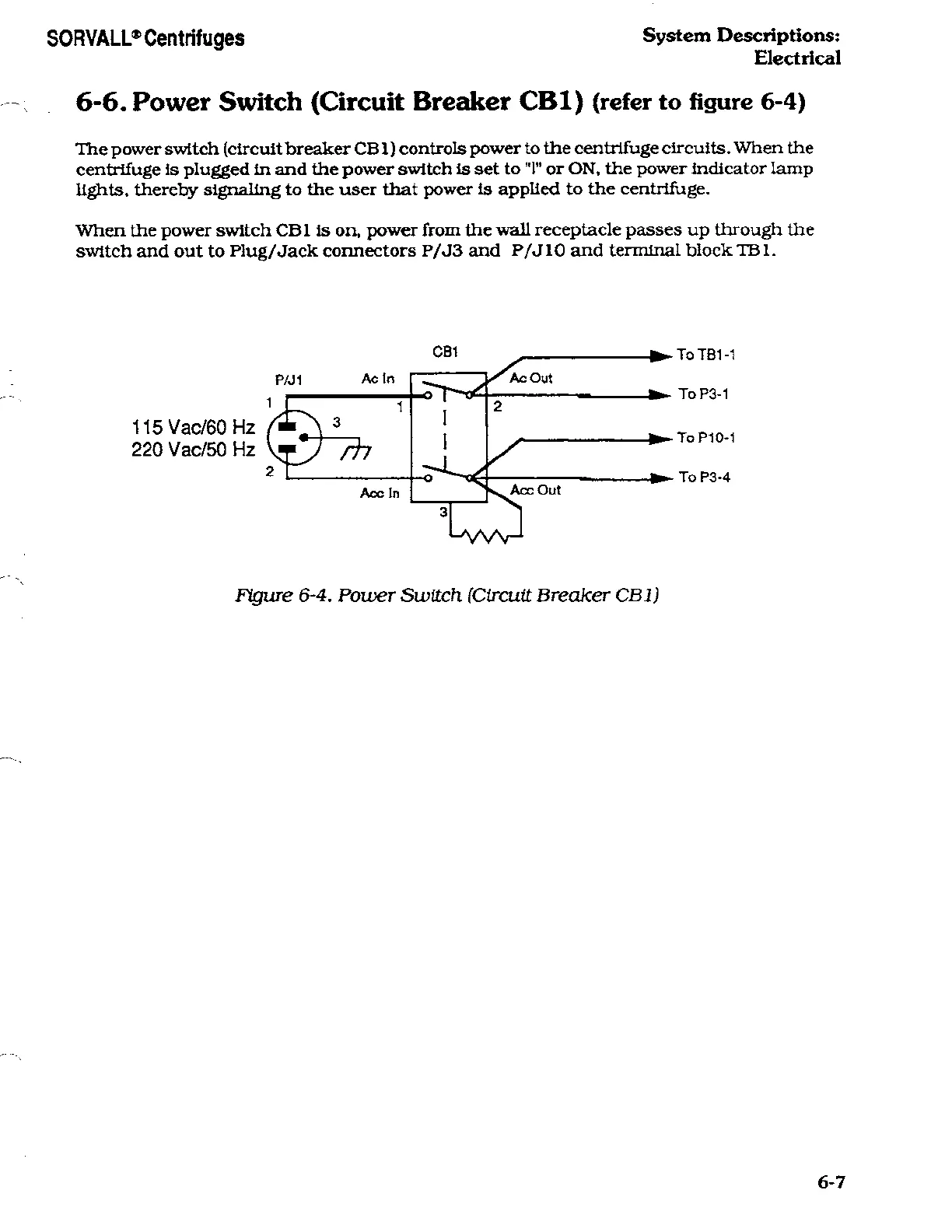

Figure
6-4.
Power
Switch (Circuit
Breaker
CB1)
6-7
