Sorvall RT/T6000D - Page 253

SORVALL®
Centrifuges
RT6000D. T6000D, RT6000B,
and
T6000B
Centrifuges
Serial Number
9101800
and
Above

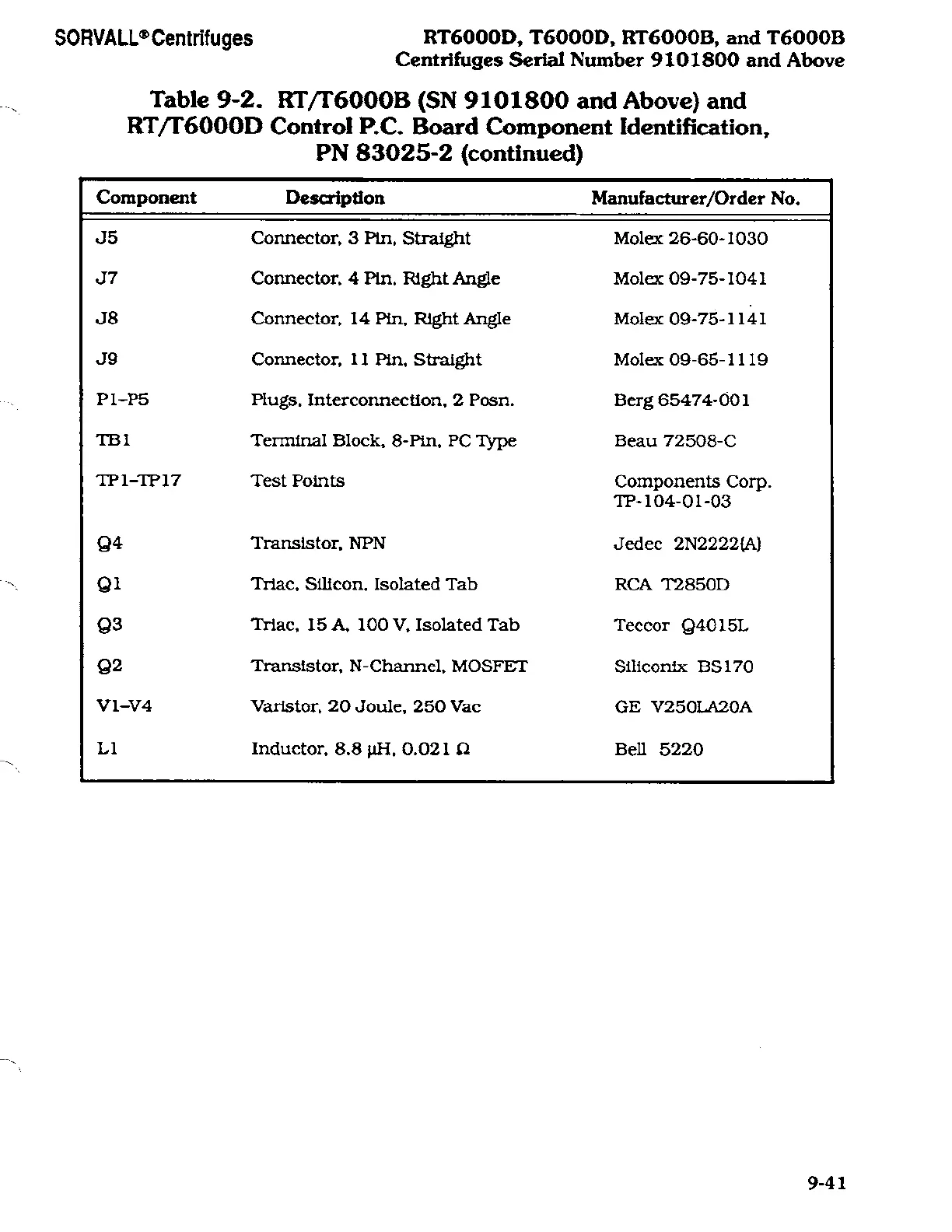

Table
9-2.
RT/T6000B
(SN
9101800
and Above) and
RT/T6000D
Control
P.C.
Board
Component
Identification,
PN 83025-2
(continued)
Component Description
Manufacturer/Order
No.
J5
J7
J8
J9
P1-P5
TB1
TP1-TP17
Q4
Ql
Q3
Q2
V1-V4
LI
Connector.
3
Pin.
Straight
Connector.
4
Pin,
Right
Angle
Connector.
14
Pin.
Right
Angle
Connector,
11
Pin.
Straight
Plugs,
Interconnection.
2
Posn.
Terminal
Block. 8-Pin.
PC
Type
Test Points
Transistor,
NPN
Triac, Silicon.
Isolated Tab
Triac.
15
A,
100
V,
Isolated
Tab
Transistor.
N-Channel,
MOSFET
Varistor,
20
Joule.
250
Vac
Inductor. 8.8
(iH,
0.021
n
Molex
26-60-1030
Molex
09-75-1041
Molex
09-75-1141
Molex
09-65-1119
Berg
65474-001
Beau
72508-C
Components
Corp.
TP-104-01-03
Jedec
2N2222(A)
RCA T2850D
Teccor
Q4015L
Siliconix
BS170
GE
V250LA20A
Bell
5220
