SORVALL®
Centrifuges
Operation

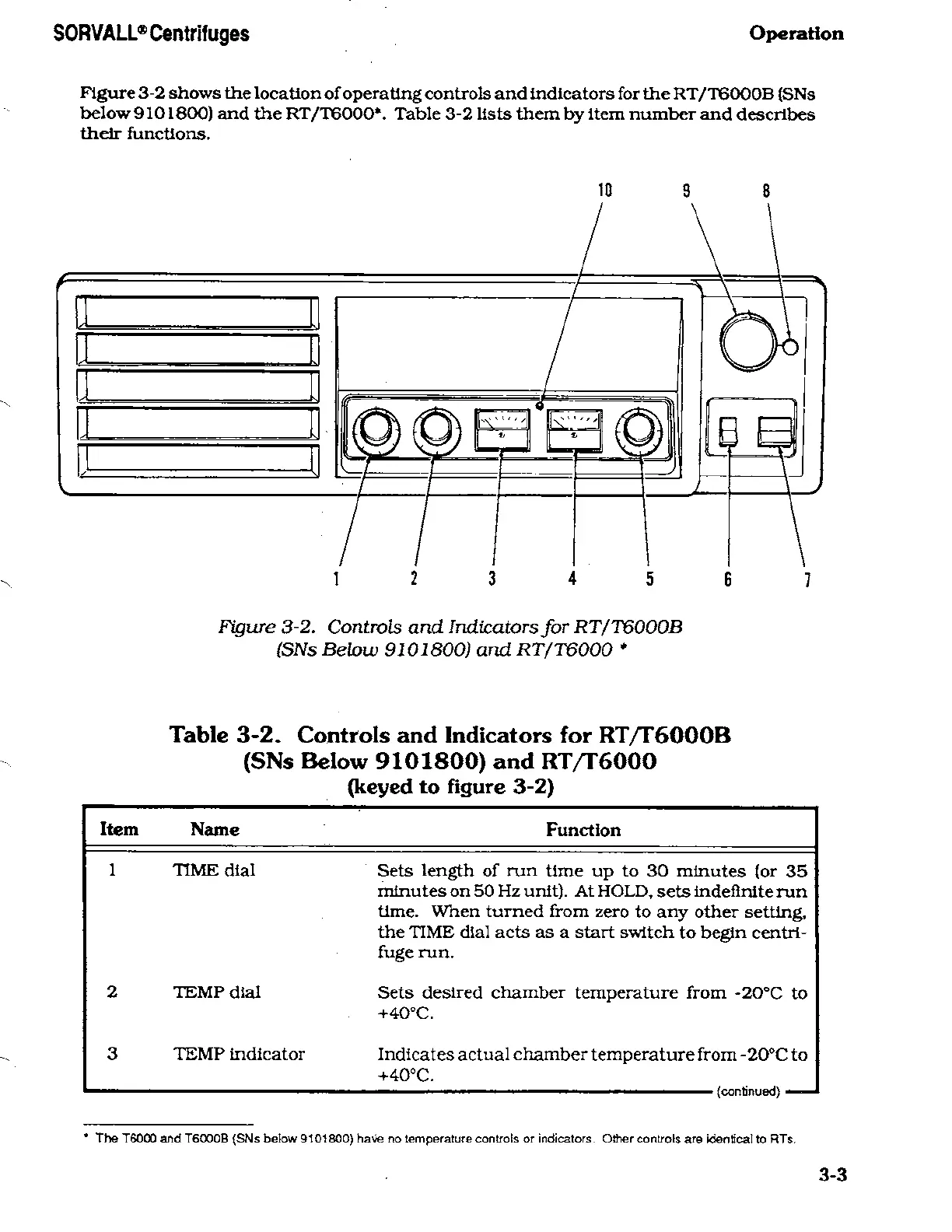

Figure
3-2
shows
the
location
of
operating
controls and
indicators for
the RT/T6000B
(SNs
below
9101800)
and the
RT/T6000*.
Table
3-2
lists them
by
item
number
and describes
their
functions.
Figure
3-2. Controls and Indicators for
RT/T6000B
(SNs Below
9101800)
and
RT/T6000
*
Table
3-2. Controls and
Indicators
for
RT/T6000B
(SNs
Below
9101800)
and
RT/T6000
(keyed
to
figure
3-2)
Item Name
Function
2
3
TIME
dial
TEMP
dial
TEMP
indicator
Sets
length of
run
time
up
to
30
minutes (or
35
minutes on
50
Hz
unit).
At
HOLD, sets
indefinite
run
time.
When turned from
zero
to
any
other
setting,
the
TIME dial
acts
as
a
start switch
to begin
centri¬
fuge run.
Sets
desired
chamber temperature
from
-20°C
to
+40°C.
Indicates actual
chamber
temperature
from
-20°C
to
+40°C.
•
(continued)
——
*
The
T6000
and
T6000B
(SNs below
9101800)
have
no
temperature controls
or indicators.
Other controls are identical to RTs.
