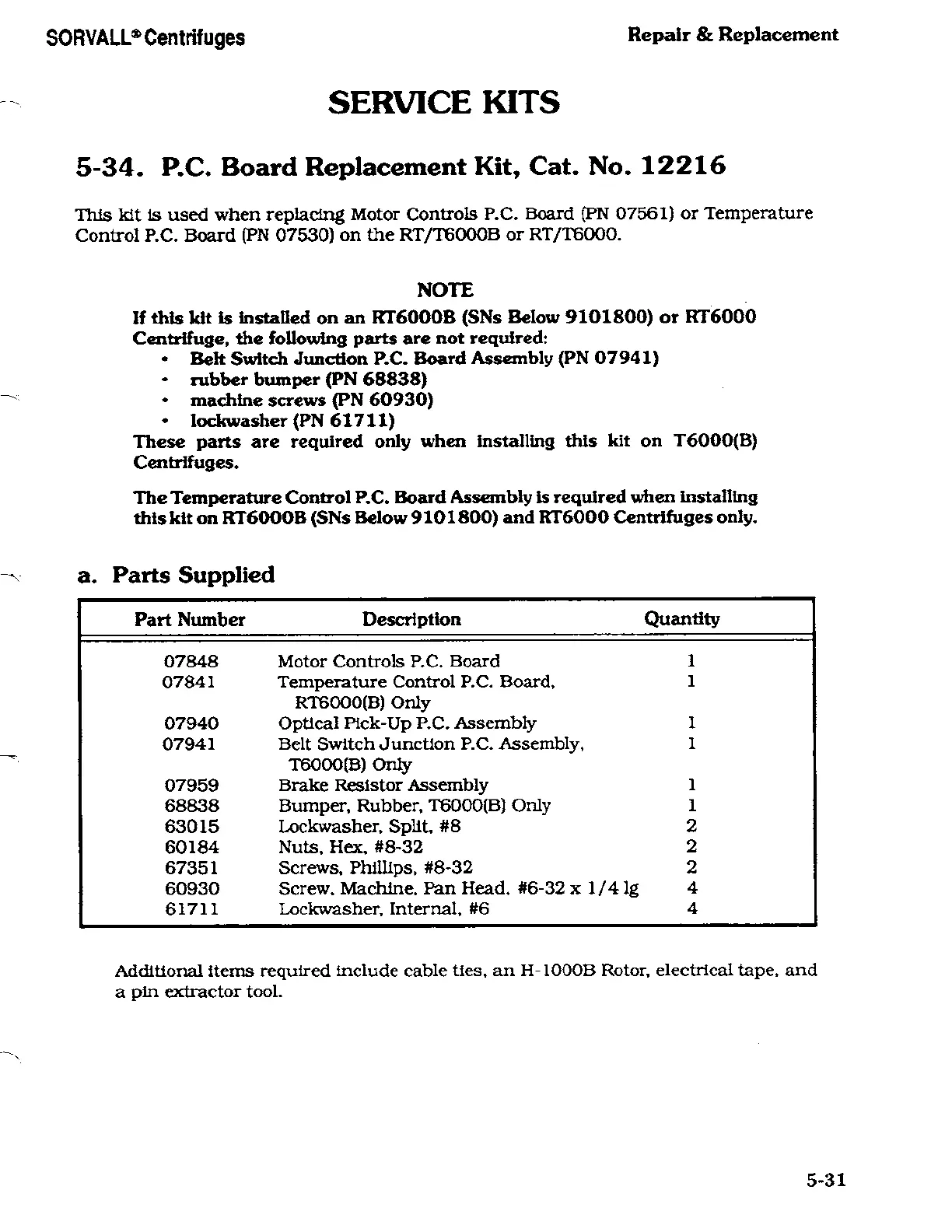

Repair
&
Replacement
SERVICE KITS
5-34.
P.C.
Board
Replacement
Kit,
Cat.
No.
12216
This kit
is used
when
replacing
Motor Controls
P.C.
Board (PN
07561)
or
Temperature
Control
P.C.
Board
(PN 07530)
on
the
RT/T6000B
or
RT/T6000.
NOTE
If
this
kit
is
installed
on an
RT6000B
(SNs
Below
9101800)
or
RT6000
Centrifuge,
the
following
parts
are
not required:
•
Belt
Switch
Junction
P.C.
Board Assembly (PN
07941)
•
rubber
bumper
(PN
68838)
•
machine
screws
(PN
60930)
•
lockwasher (PN
61711)
These
parts
are required
only
when installing
this
kit
on
T6000(B)
Centrifuges.
The
Temperature
Control
P.C.
Board Assembly is
required
when installing
this
kit
on
RT6000B
(SNs
Below
9101800)
and
RT6000
Centrifuges
only.
a.
Parts Supplied
Part
Number Description
Quantity
07848
Motor Controls
P.C.
Board
1
07841
Temperature
Control
P.C.
Board,
1
RT6000(B)
Only
07940
Optical Pick-Up
P.C.
Assembly
1
07941
Belt
Switch Junction
P.C.
Assembly,
1
T6000(B)
Only
07959
Brake
Resistor
Assembly
1
68838
Bumper,
Rubber.
T6000(B)
Only
1
63015
Lockwasher.
Split.
#8 2
60184
Nuts.
Hex.
#8-32 2
67351
Screws.
Phlllips.
#8-32 2
60930
Screw.
Machine.
Pan
Head.
#6-32
x
1/4
lg
4
61711
Lockwasher. Internal.
#6 4
Additional
items
required
include cable
ties, an
H-1000B
Rotor,
electrical
tape.
and
a
pin
extractor tool.
5-31
