8
OVERVIEW

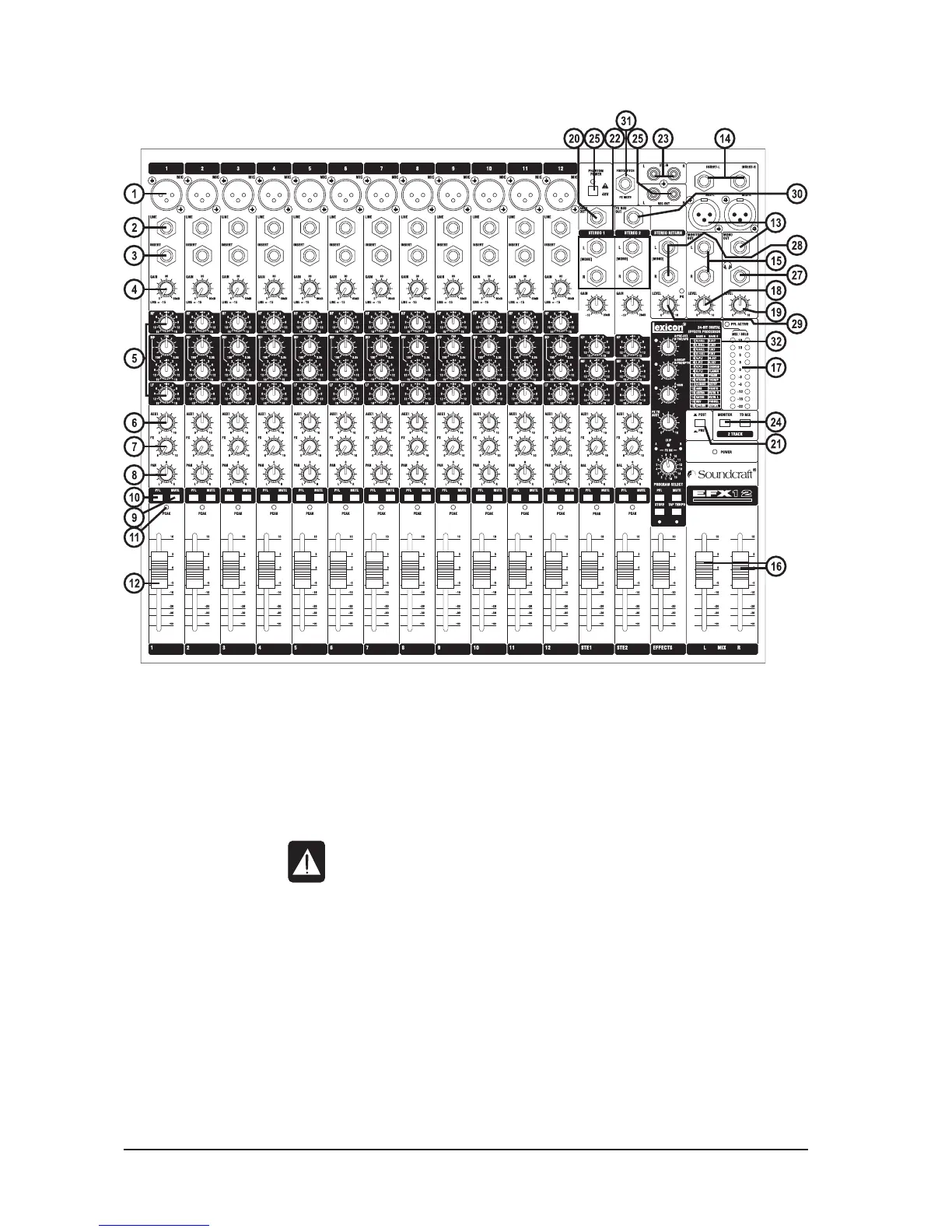

THE 60-SECOND GUIDE
1 MIC INPUT (XLR) Connect Microphones here. If you are using a condenser mic, ensure phan-
tom power is supplied by pressing the switch at the top of the master sec-
tion.
WARNING: Do Not apply Phantom Power before connecting a microphone.
2 LINE INPUT (¼” Jack) Connect Line level sources here, e.g. Synth, Drum Machine, DI etc.
3 INSERT POINT (¼” Jack) Connect Signal processors here, e.g. Compressor, Gate etc.
4 GAIN CONTROL Adjust this to increase or decrease the level of the incoming signal.
5 EQ STAGE Adjust these controls to change the signal tone (the character of the signal).
6 AUX 1 SEND Adjust this control to change the level of the signal to an artist’s monitors
(headphones/in-ear/stage monitors). Aux 1 is globally switchable pre/post
fade.
7 FX SEND This control sets the level of the post-fade signal being sent to the FX bus;
from there it is routed to the FX processor.
8 PAN CONTROL Use this control to position the signal within the stereo field.
9 MUTE SWITCH When this is pressed you will hear no signal from the channel (post-mute
signals).
To get you working as fast as possible, this manual begins with a 60-second guide. Here you can find quick
information on any feature of the console.
