DIRECT O/P
NSERT
I
HI-ZI/P
IC
M

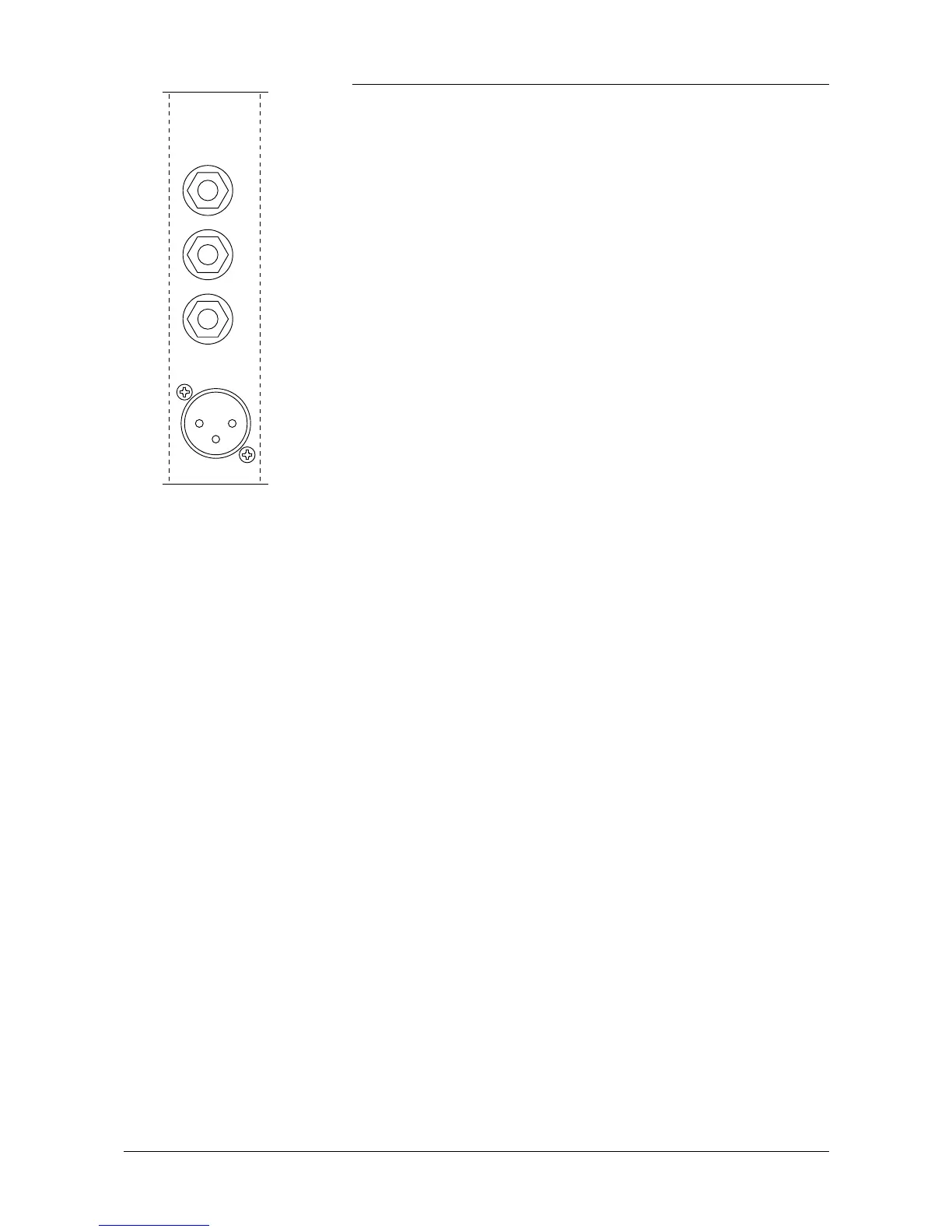

Rear Connectors
INPUT (3 pin female XLR)
Pin 1 Ground
Pin 2 Signal Hot
Pin 3 Signal Cold
JACK INPUT (1/4" TSR Jack)
Tip Signal Hot
Ring Signal Cold
Sleeve Ground
INSERT SEND/RETURN, (1/4" TSR Jack)
Tip Return signal
Ring Send signal
Sleeve Ground
DIRECT OUTPUT (1/4" TSR Jack)
Tip Signal Hot
Ring Ground
Sleeve Ground
4.4 December 1994 Functional Descriptions
