4.2: STEREO INPUT
CONSOLE ROUTING > STEREO INPUT
4.2: STEREO INPUT ROUTING
Stereo TRS Input
Channels
Stereo TRS channels
have two TRS input
jacks and have the same
routing options as mono
input channels.
Aux bus contributions
from stereo channels
are stereo such that
when the Aux output is
in headphone mode, a
stereo mix is heard.
These stereo channels
have trim controls.
Stereo RCA/USB Input
Channel
The Stereo RCA/USB
input channel is a stereo
sum of the RCA inputs
and USB channels 1
and 2. It is usually used
as a playback channel
and works for conven-
ient 2-track playback
functionality from unbal-
anced consumer audio
players into the RCA
jacks, or from computer,
tablet, or phone connec-
tions to the USB jack.
There is no trim or EQ
on this channel.
Stereo FX Return
Channel (Notepad
12FX only)
(See next section: FX
Return)
NOTEPAD 5, 8FX, 12FX User Manual

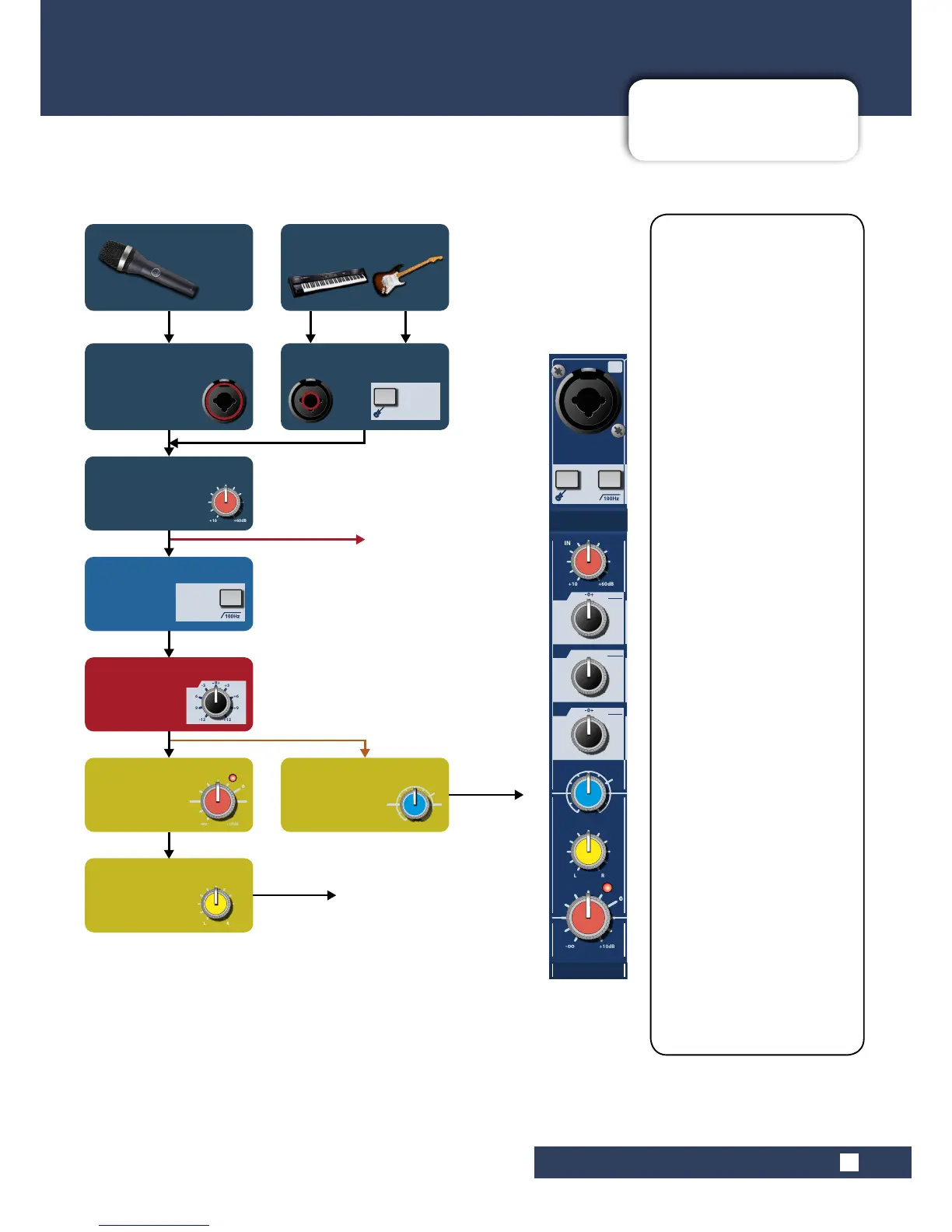

Microphone
Input
MIC INPUT
48V Phantom power is
provided for condenser
type microphones and DI
boxes on the XLR input
GAIN
Increase / decrease the
signal level
100Hz HPF
High Pass Filter -
lter out frequen-
cies below 100Hz
LF, MF, HF EQ
Three-band
equaliser
LEVEL ROTARY
Level control to
mix the source.
Peak light
indicates near clip
AUX/FX
Send an independent
signal level to the
eects module and
aux bus
Pre-fade aux send
To USB audio routing
To aux master
control and
eects
PAN
Adjust the left /
right mix position
LINE INPUT
Press the button for Hi-Z inputs
Line or HiZ source
+60dB+10
-12 +12
+9
+6
-9
-6
-3 +3
PK
00
+10dB
-
∞
RL
0
+10dB
-
∞
To master
level control
HI-Z
PAN
LEVEL PK
GAIN
HI-Z
+60dB+10
+10
RL
PAN
LEVEL
GAIN
AUX/FX
AUX/FX
LINE= -20dB
LINE= -20dB
00
0
MIC
MF
LF
HF
MF
LF
HF
12kHz
2.5kHz
80Hz
+10dB -
∞
-
∞
+10dB
-
∞
-
∞
