METERING
Input and Dynamics Metering
Signal level metering for the input channels is displayed on the OLED screens found above each channel
fader.
Output Metering
Signal level metering for all output buses is displayed on the 12-segment bar graph meters located at the
top of the console.
There is dedicated metering for the following:
Buses 1-24
Left, Right and Centre buses
Matrix Outputs 1-8
SOLO L+R

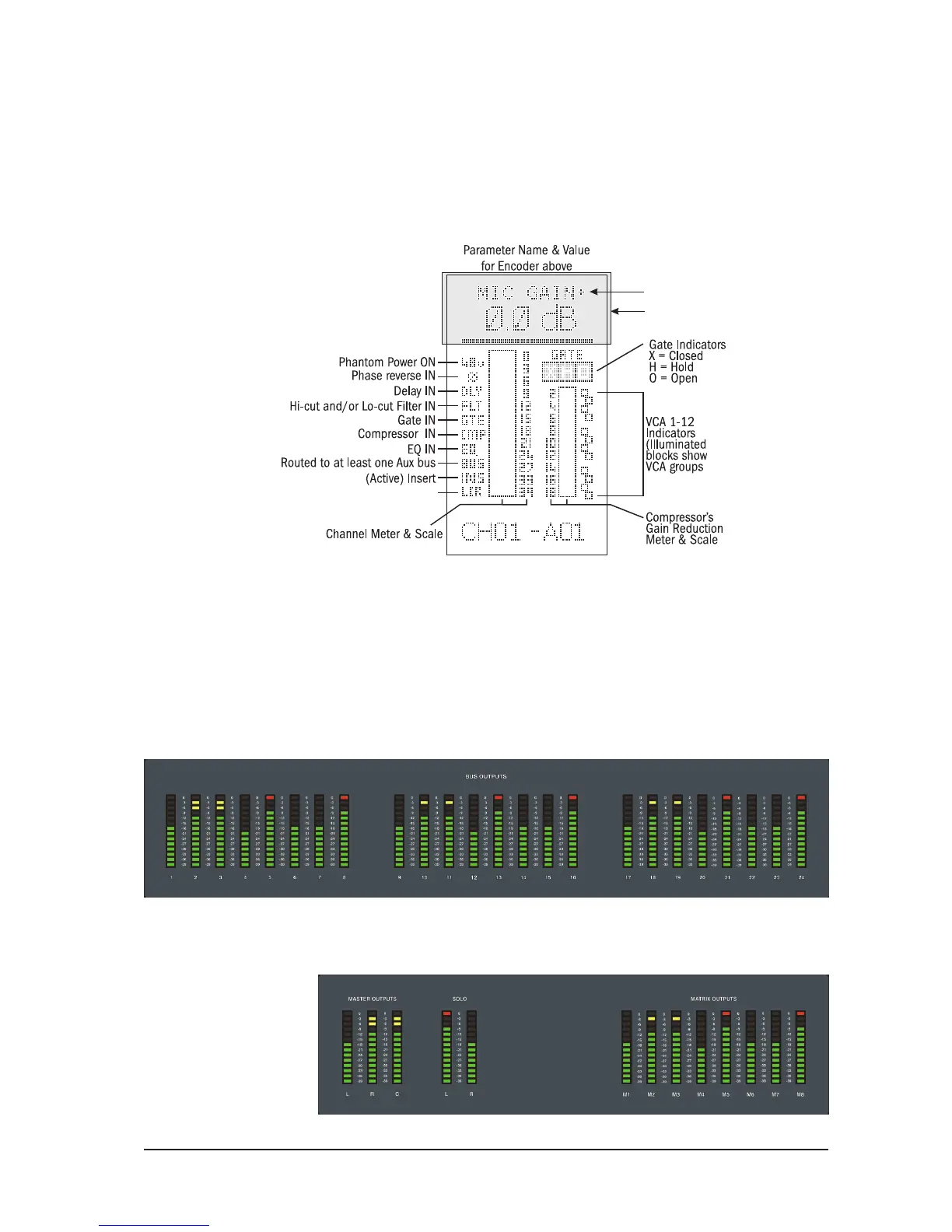

Upper OLED Zone
A + sign indicated a
second function is
available by pressing
the encoder
Channel Name or ID see page 2-7
Displays LR_, __C, LRC or LCR depending on
channel type and routing/pan mode selected
