SoundCraft Si3 User Manual

Page 6 - 9Soundcraft® Si3 User Guide

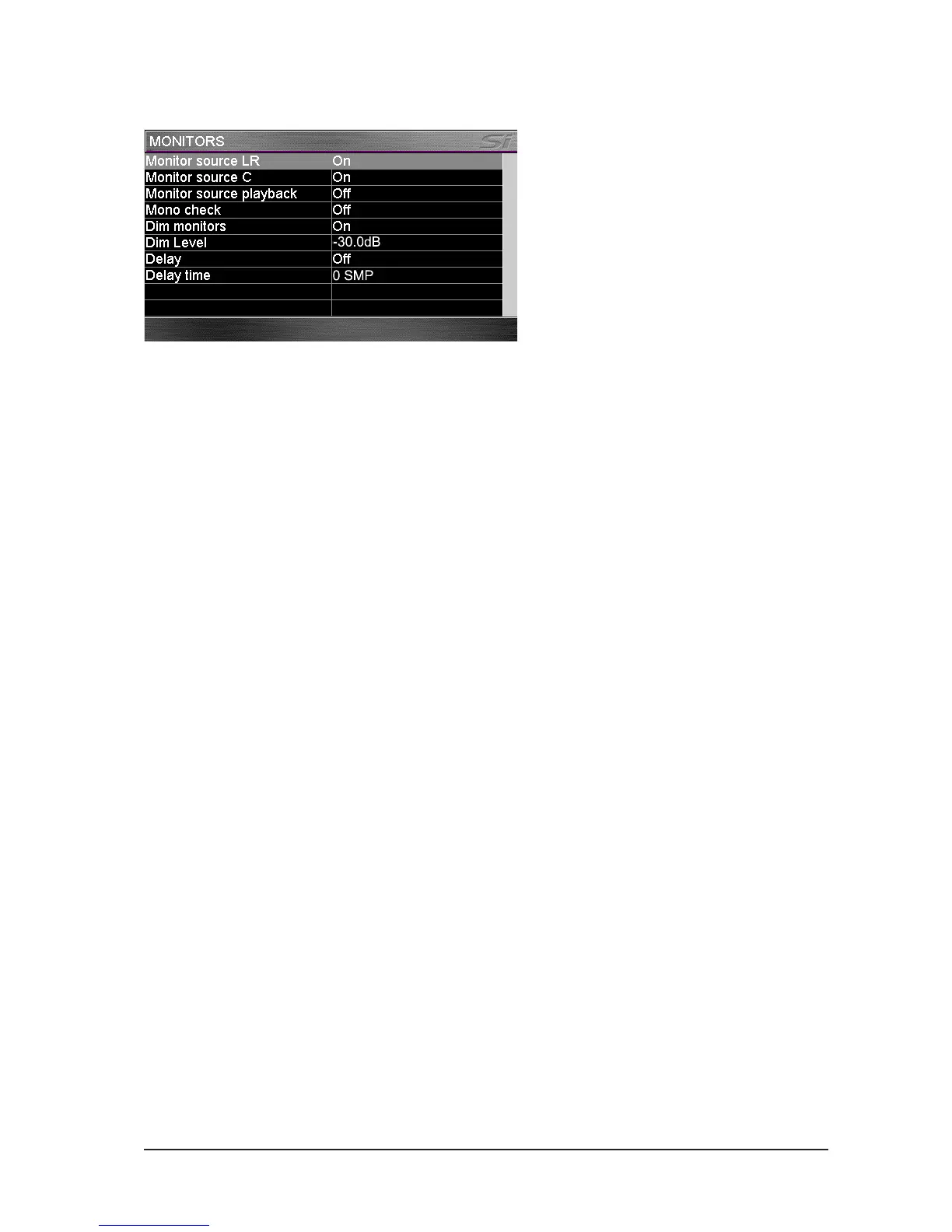

MONITOR
This page has the following fields:
The Monitor Source LR
This enables the routing of the main L & R signals to the monitor system.
Monitor Source C
This enables the routing of the main C signal to the monitor system.
Monitor Source Playback
For future funtionality.
Mono Check
It routes the monitor system’s left signal and the right signal to both left and right monitor outputs.
Dim Monitors
The monitor signal can be enabled to dim by the value set in this field below when the internal talkback
button and an output bus solo button are selected.
This prevents, for example, the engineer’s wedge signal being picked up by the int. talkback mic.
Dim Level
This sets the dimming level, see field above.
Delay
This field enables the delay which may be set in the field below.
Delay Time
This sets the delay time from 0 to 1 second. The units (frames/msec/sec) are auto-selected.

SoundCraft Si3 Specifications

General

Type	Digital Mixer
Channels	32
Outputs	16
EQ	4-band parametric EQ
Groups	8
Matrix Outs	8
Main Outs	2
USB Audio Interface	Yes
Word Clock	Yes
Dynamic Processing	Compressor and gate per channel
Digital I/O	ADAT
