NR912/ English instruction manual
4
PHONO OPERATION
1. Set FUNCTION SELECTOR to "PH”.
2. Put the record on the turntable flat.
Note: First insert the 45 rpm adaptor in the center of the turntable then place the record.
3. Set the SPEED SELECTOR to 33 ⅓ , 45 or 78 RPM according to the size of the record you are
playing.

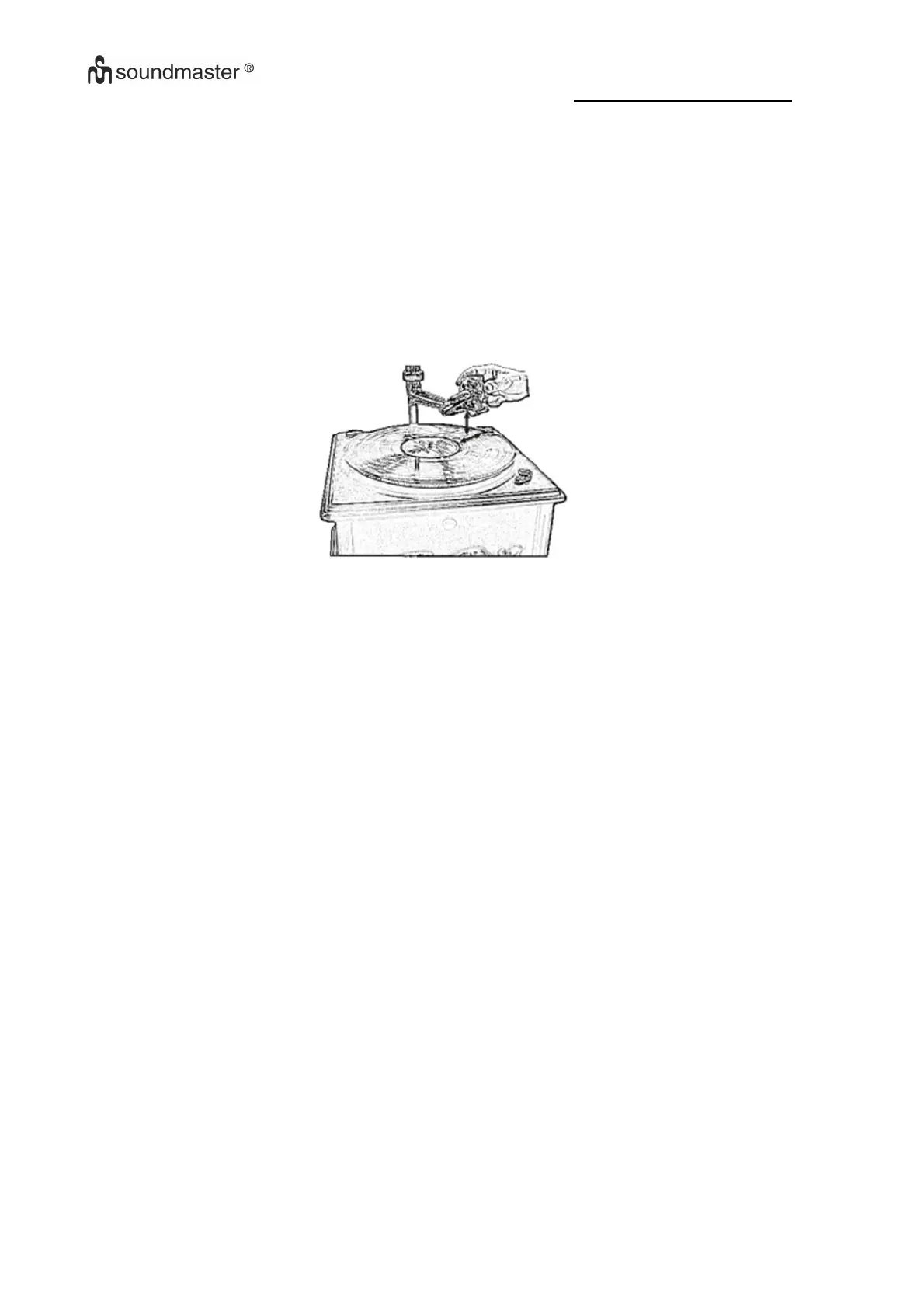

4. Taking out the stylus guard of the tone arm first, then place the electric tone arm on the record
carefully.
5. Adjust the VOLUME CONTROL to obtain the desired sound level from the Speakers.
6. To stop operation, carefully lift up the TONE ARM and return it to TONE ARM-REST.
TECHNICAL SPECIFICATIONS
FM frequency: 87,5 – 108MHz
AM frequency: 530 – 1600KHz
Power supply: AC 230V~50Hz
Power consumption: 19 Watt
Copyrights by Woerlein GmbH, D-90556 Cadolzburg, Germany
Any technical changes without any further announcement
