Pedal 2 is not available on Keylite 25

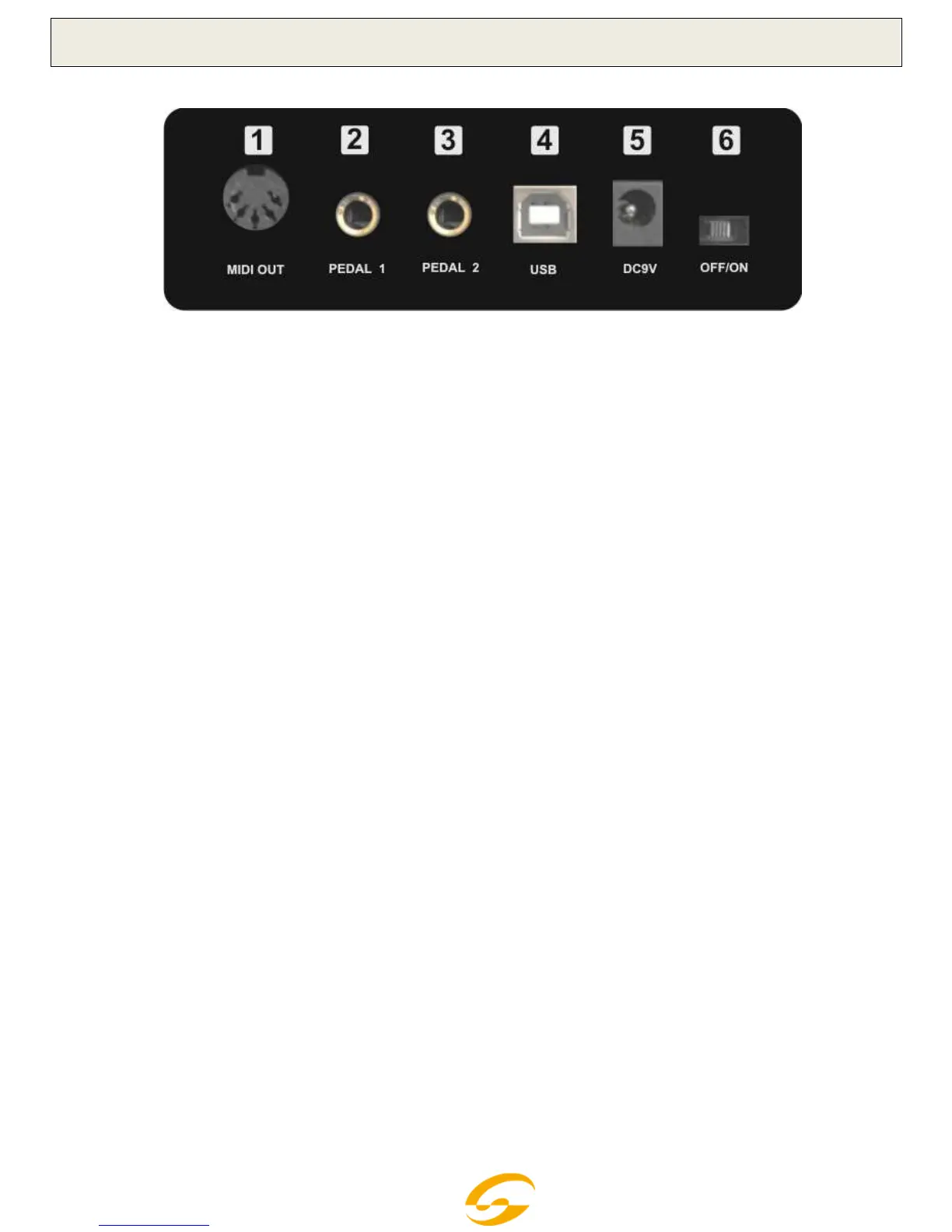

1 - MIDI OUT
MIDI output interface.
2 - PEDAL 1
PEDAL A input interface, which can connect to pedals of both switching type and continuous type. It
can be assigned as 152 controllers; the initial setting is soft pedal.
3 - PEDAL 2
PEDAL B input interface, which can connect to pedals of both switching type and continuous type. It
can be assigned as 152 controllers; the initial setting is sustain pedal.
4 - USB
USB interface
5 - DC 9V
9V power input interface. Center Positive. (PSU-20 is recommended)
6 - OFF/ON
Power Off/On
