soundsation PMX-8UBT - Outputs and Equalizer; Output and Return Controls; Graphic Equalizer and Connections

9
ENGLISH
PMX-8UBT User’s manual

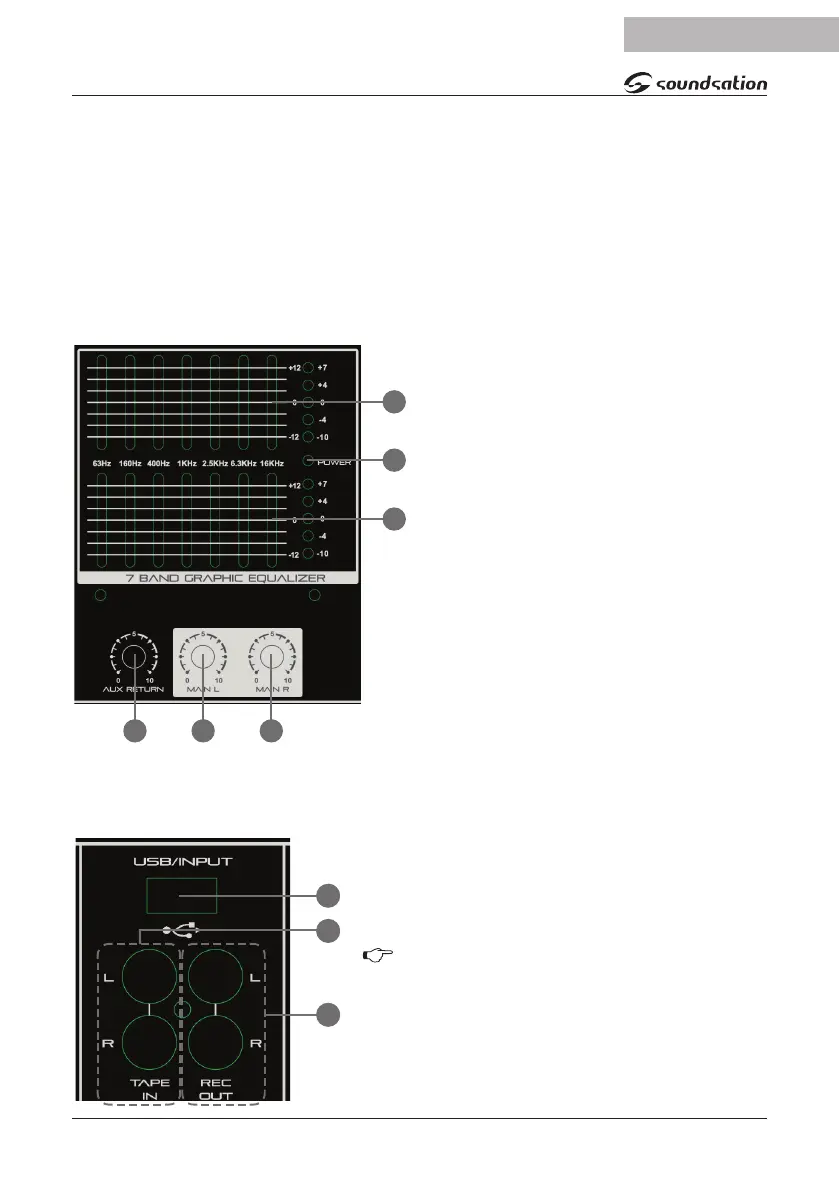

(14) AUX RETURN
Adjust the level of the signal connected to RETURN connector (for example the output
of an external eects processor).
(15) MAIN L
Adjusts the main output signal of the le channel.
(16) MAIN R
Adjusts the main output signal of the right channel.
(17) GRAPHIC EQUALIZER
The PMX-8UBT has two 7-band graphic
equalizers. The upper EQ controls the mon-
itor signal, the lower one the main signal.
Each band operates on a specic frequen-
cy range, respecvely 63Hz, 160Hz, 400Hz,
1kHz, 2.5kHz, 6.3kHz, 16kHz; with a boost /
aenuaon of +/- 12 dB.
(18) USB/INPUT
It accepts a USB storage device containing
MP3 audio les, whose reproducon can be
managed through the DIGITAL MEDIA PLAY-
ER control panel described in paragraph
(10).
(19) TAPE IN
This RCA input allows you to insert an exter-
nal stereo signal, for example a CD player, tape deck or other signal sources with line
level.
(20) REC OUT
This RCA output provides a line-level stereo signal
of the main mix used for sending to a recorder.
WARNING: If the REC OUT is connected
to a recorder whose output signal is sent
to the TAPE IN, a dangerous feedback may
occur when you acvate the recording func-
on. you must unplug the TAPE IN from the
recorder before recording.
18
19
20
17
17
14 15 16
26
