Soundstream VR-103 - Page 5

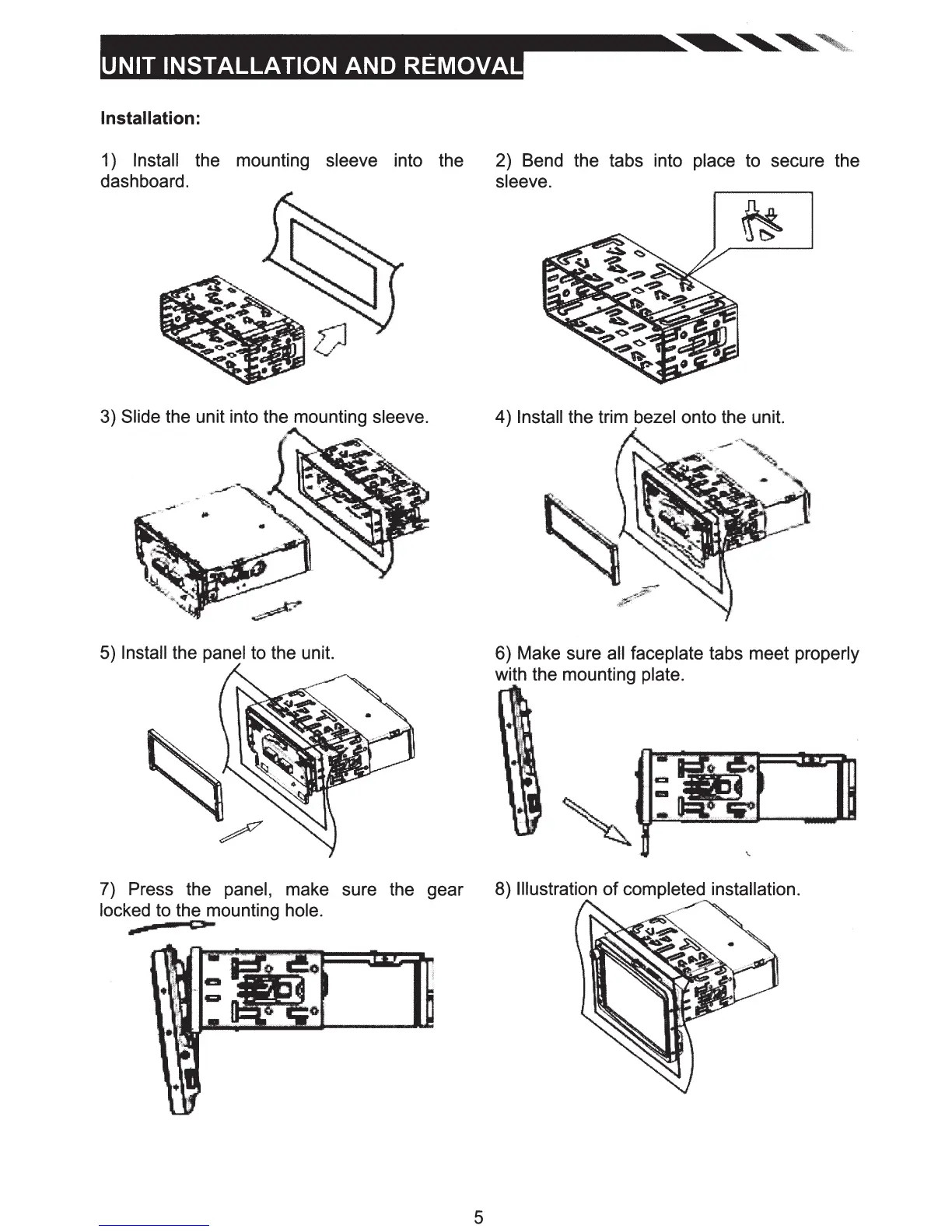

Installation:
1) Install the mounting sleeve into the
dashboard.
3) Slide the unit into the mounting sleeve.
5) Install the panel to the unit.
7) Press the panel, make sure the gear
locked to the mounting hole.
...... · CJl-
5
2) Bend the tabs into place to secure the
sleeve.
4) Install the trim bezel onto the unit.
6) Make sure all faceplate tabs meet properly
with the mounting plate.
8) Illustration
of completed installation.
~(·
_,.r·
"
