South-Tek Systems N2Blast FPS-650

FPS-650 and FPS-1250 South-Tek Systems
Version: 7
Revision Date: 9/6/19 Page 14 of 29
PANEL LAYOUT AND GAS CONNECTIONS
See figures below for panel layout and gas connections. Double-check all
connection locations before turning on the system or opening any valves.
Note: All N
2
-BLAST® models are factory equipped with ½” NPT Female
connections. For FPS-650 Layout See Figure 4. For FPS-1250-Layout See
Figure 6.

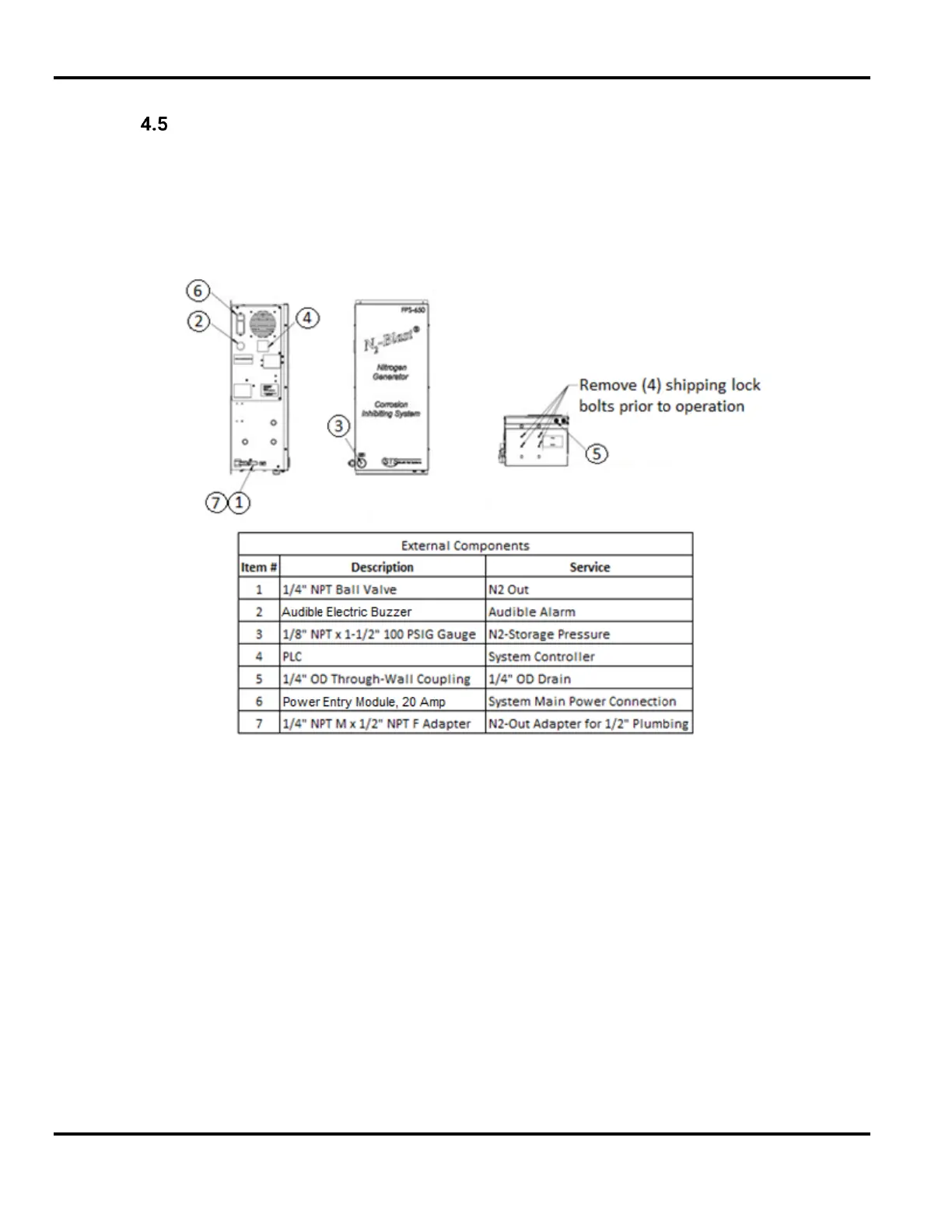

Figure 4: FPS-650 Panel Layout
