South-Tek Systems N2Blast FPS-650 User Manual

FPS-650 and FPS-1250 South-Tek Systems
Version: 7
Revision Date: 9/6/19 Page 13 of 29

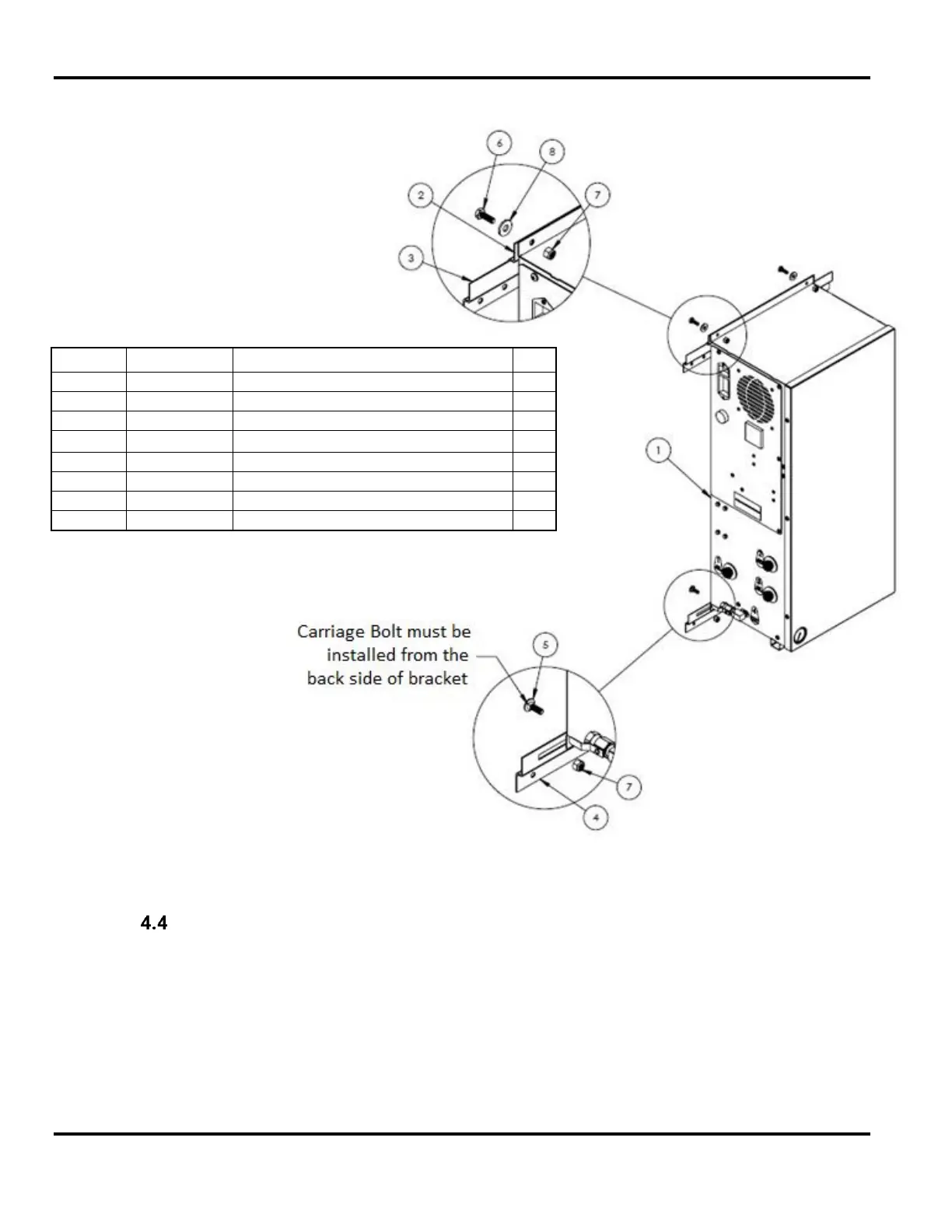

Figure 3: FPS-650 Wall Mounting Diagram
INSTALLATION (FOR FPS-1250)
The N
2
-BLAST® FPS-1250 must be installed on a flat level hard surface
as there are no wall mount options available. Anchoring to the floor is not
required (unless by local code). Make sure there is clearance room on the
top for N2 gas connection, clearance room on the left side for access to
the panel, and clearance room on the front for maintenance access.
See Figure 6 for dimensions and overall connections to the system.
Item #
STS Part #
Description
Qty
1
FPS-650
Mini PSA
1
2
800-133
S-100/200 12" Mounting Bracket
1
3
800-134-B
S-100/200/400 18" Mounting Bracket
1
4
800-129
Type 1 Lower Wall Mount Bracket
1
5
Misc
0.250" -20 x 0.750" Carriage Bolt
2
6
Misc
0.250" -20 x 0.750" Hex Cap Screw
2
7
Misc
0.250" Nylock Nut
4
8
Misc
0.250" Flat Washer
2
