Chapter 2 Hardware Component
2.1 Appearance
Net S10mini receiver appearance is as shown in figure 2-1. Receiver is rectangular in shape like
the previous generation—Net S9, in yellow and black color; the front panel provides buttons and
LCD display function, and LED indicators; Rear panel provides multiple interface functions: RS
- 232 interface, RJ45 interface, antenna interface, power supply interface, USB interface, etc.
S10mini adopts aluminum alloy materials for the receiver shell, and the black thick plastic ring
wraps each corner of receiver that it can prevent inner components damage from instrument
falling down.

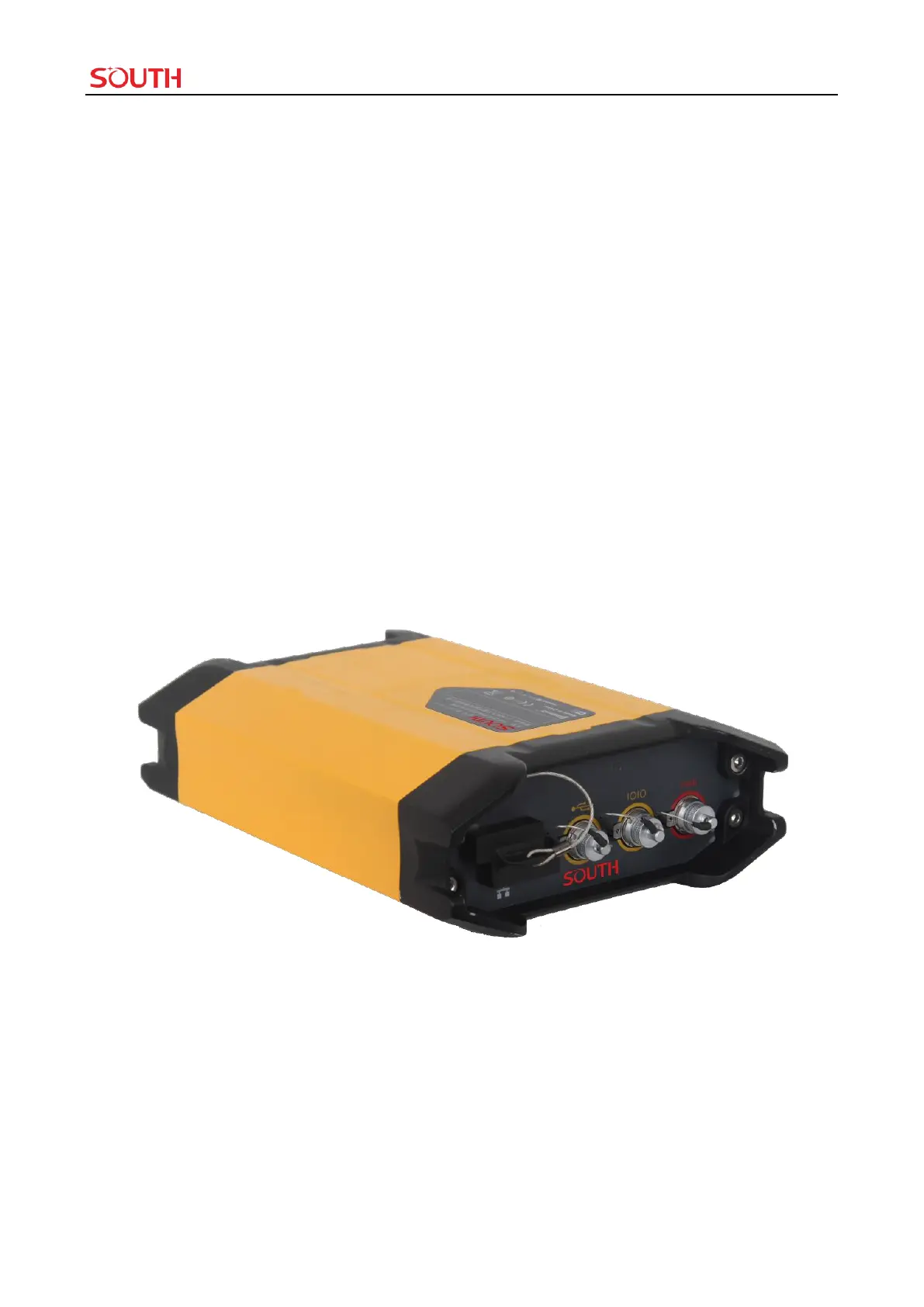

Fig. 2-1 Net S10mini
