Operation cont.
9
Operation cont.

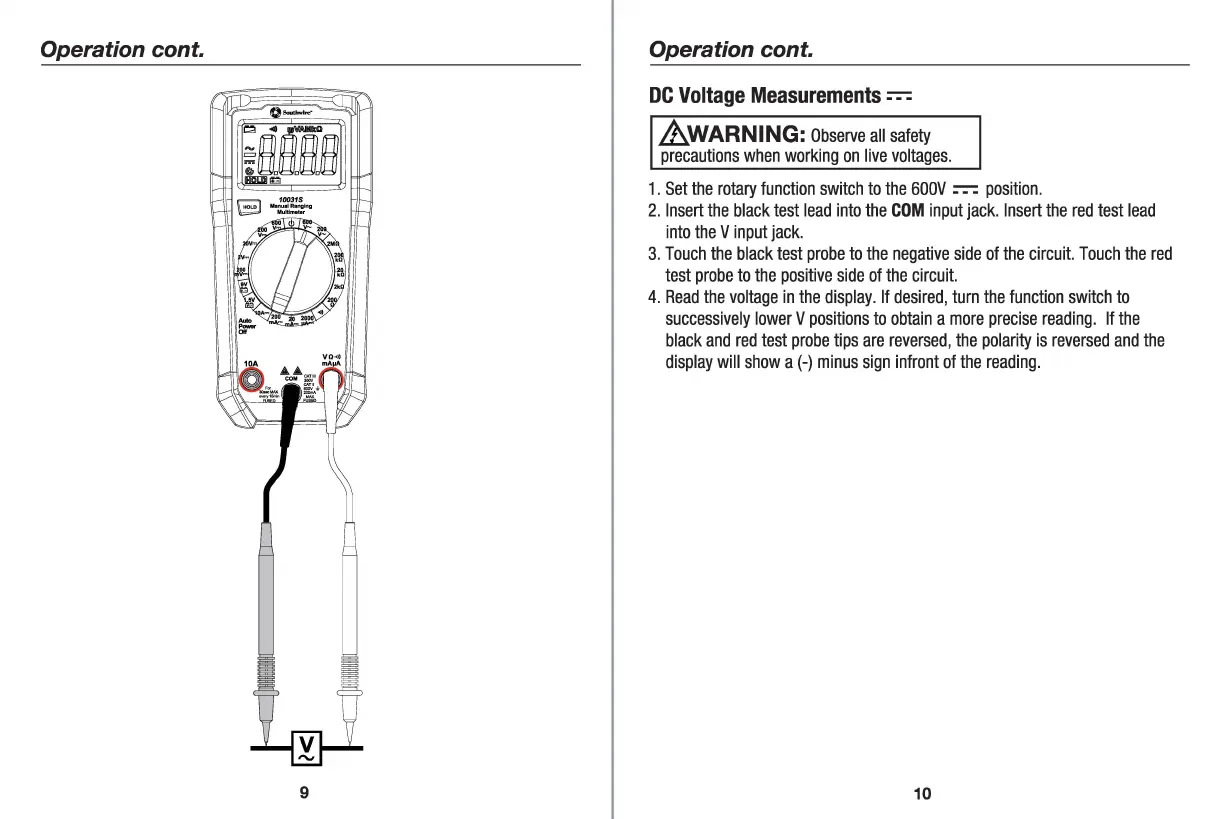

DC Voltage Measurements =-=-=
,&_WARNING: Observe all safety
precautions when working on live voltages .
1. Set the rotary function switch to the 600V =-=-= position .
2. Insert the black test lead into the COM input jack . Insert the red test lead
into the V input jack .
3. Touch the black test probe to the negative side of the circuit. Touch the red
test probe to the positive side of the circuit.
4. Read the voltage in the display. If desired, turn the function switch to
successively lower V positions to obtain a more precise reading . If the
black and red test probe tips are reversed , the polarity is reversed and the
display will show a(-) minus sign infront of the reading .
10
