Description of the stud chuck
42 Operating Instructions Soyer Bolzenschweißtechnik

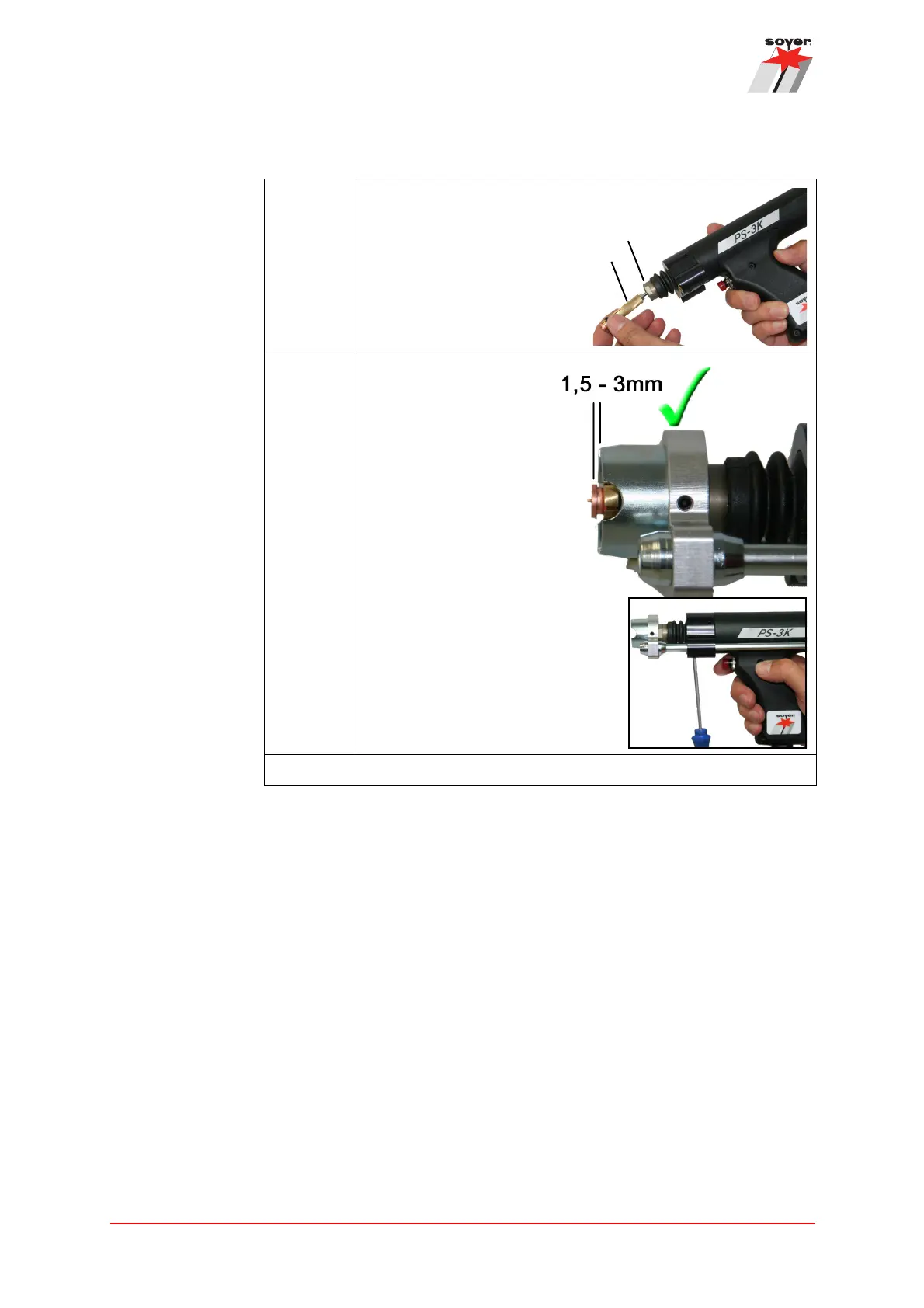

Step 5: Slide the stud chuck (a) up to
the stop into the spring piston of
the gun.
Tighten the union nut (b).
Step 6: Insert a stud and check
the stud protrusion.
The stud / stud flange
must protrude 1.5 - 3 mm
from the support tube.
If applicable, correct the
settings of the stud chuck by moving
the support.
After adjusting the stud protrusion,
tighten the clamp screws of the sup-
port.
The assembly is complete.
Installing the stud chuck (gun with support).
b
a
