SOYO SY-6BA+ Quick Start Guide

SY-6BA+ Quick Start Guide
4
Introduction

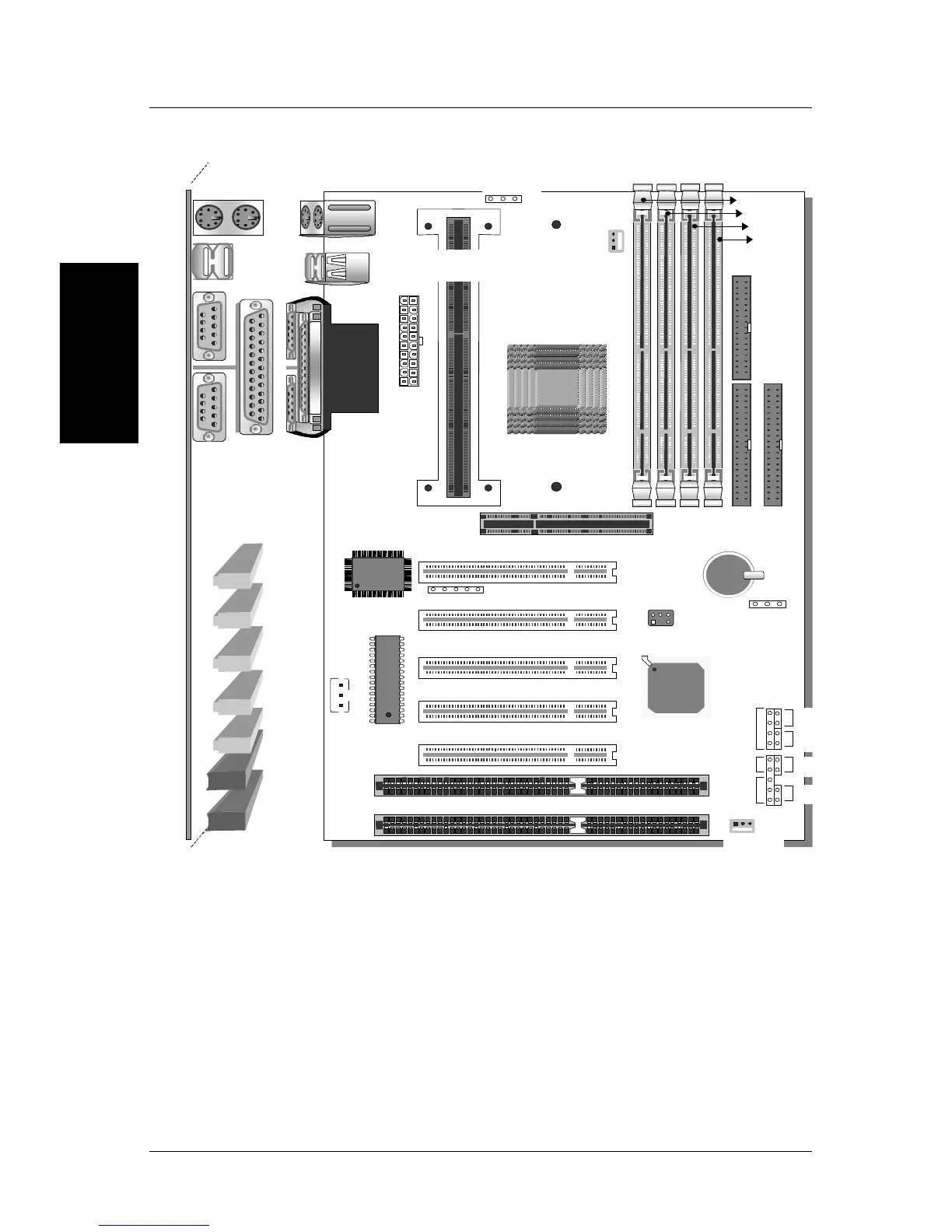

SY-6BA+ Mainboard Layout
Key Features
Ø Supports Intel Pentium
®
II processor
(233-550MHz) & Celeron
TM
processors(266-366MHz)
Ø Auto-detect CPU voltage
Ø PC97, ACPI, Ultra DMA/33MHz
Ø Power-on by modem or alarm
Ø SOYO COMBO Setup
Ø Supports Wake-On-LAN (WOL)
Ø Supports onboard hardware monitoring
and includes Hardware Doctor™ utility
Ø Supports Creative SB-LINK™ for PCI
audio card
Ø 1 x 32-bit AGP slot
Ø 5 x 32-bit bus mastering PCI slots
Ø 2 x USB ports onboard
Ø 1 x IrDA port
Ø Supports multiple-boot function
Ø DMI utility
COM 1
COM 2
PRT
USB 1
USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector
JP10
PCI Slot #1
PCI Slot #2
PCI Slot #3
PCI Slot #4
PCI Slot #5 (Slave)
ISA Slot #1
ISA Slot #2
JP5
3V Lithium
Battery
JP44
1 3
Intel
®
82371 EB
SB-LINK™
Intel
®
82443 BX
IR1
1
5
1
CPUFAN
Ultra
I/O Chipset
Flash BIOS
CHAFAN
1
IDE 1IDE 2
1
1
1
FDC
Slot 1 for
Pentium
®
II
Processor
1 3
AGP Slot
ATX
Power
DIMM 1
DIMM 2
DIMM 3
DIMM 4
Speaker
Keylock
Power
LED
Reset
PWRBT
Turbo
LED
HDD LED
_
_
_
3
1
WOL
Header
CMOS Clear
Jumper
Power-On by Keyboard
Jumper
