Hardware Installation
SY-K7VEM+
21

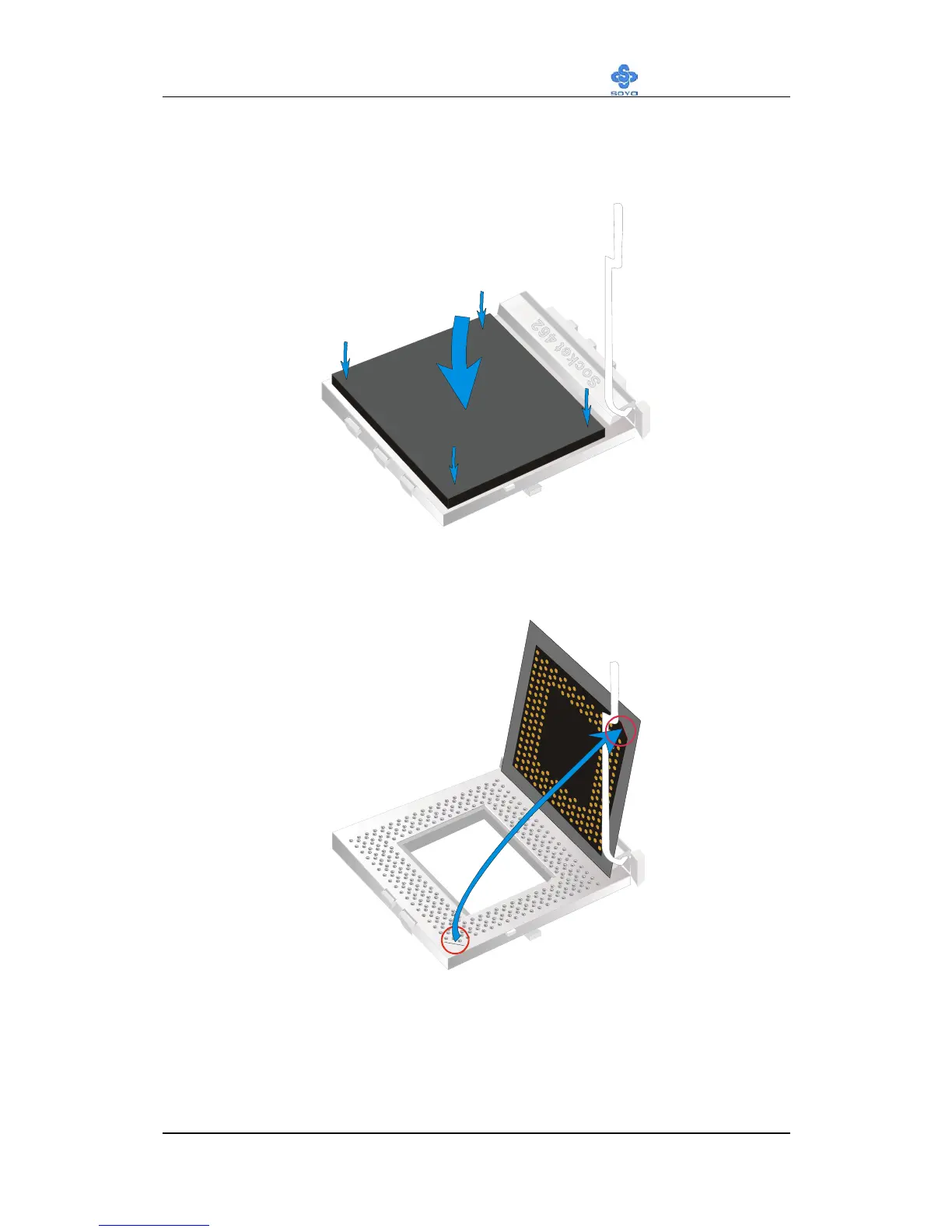

2. Align the blunt edge of the CPU with the matching pinhole
distinctive edge on the socket.
3. Seat the processor in the socket completely and without forcing.
4.
