– 20 –
SIM Inverter Monobloc Air-to-Water Heat Pump
SECTION 5: REMOTE TOUCHSCREEN DISPLAY
Overview of the Remote Touchscreen
Display
The remote touchscreen display is the Operation and Service
interface to the SIM control.
The full-color screen displays current water inlet and outlet
temperatures, outdoor ambient temperature, and DHW tank
temperature (if this feature is enabled).
It also allows the user to query the operating status of multiple
system characteristics, as well as providing the ability to view
and adjust operating parameters through various menu screens.
Port No. Name Terminals No. Function
CN2
Signal port 485A/485B
Communicate with
PC8002
Power input +12V/GND
Power supply of wire
controller, 12V DC

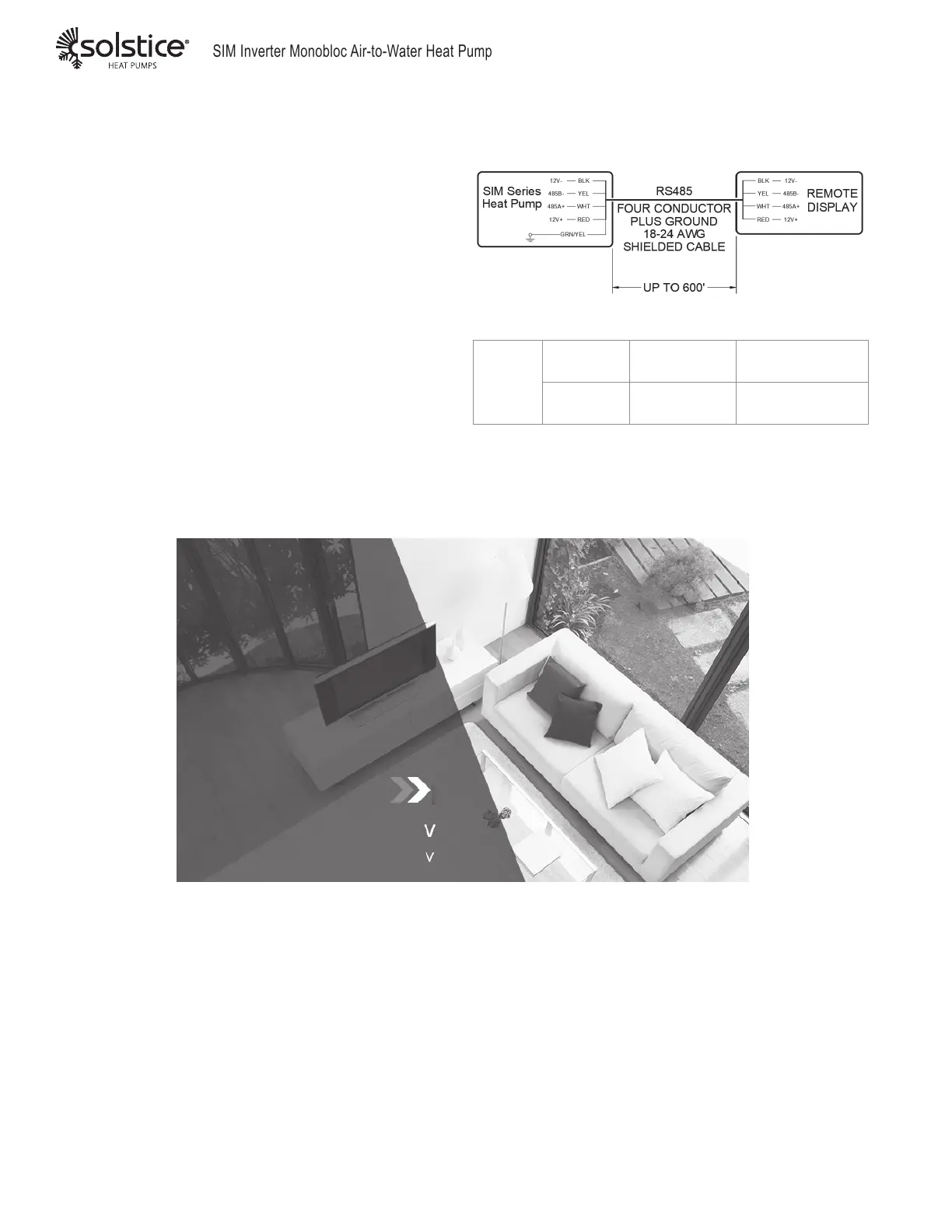

Remote Display Connection Diagram
Function of the Ports
Display Windows and Functions
If the display screen is not touched in 30s the screen will dim. The screen will go to sleep after 2 minutes of no operation. Touching
the screen will "wake" up the controller again. If the units selected is deg F, the date and time will be displayed as MM/DD/YY, Hr/Min/
Wk. If the units selected is deg C, the display date and time will be displayed as DD/MM/YYY and Hr/Min/Wk.
Power on Display Window
The display will show controller and display versions after several seconds at start up. The top number, after the upper-case V, is
the Control Software version, the bottom number, after the lower-case v, is the Display Software version. These will be displayed for
about four seconds, then show the Home Screen.
If communication fails, the version numbers won’t be displayed and the Home Screen will appear after 15s. In this case, the home
screen will show all zeros, or inaccurate default values.
