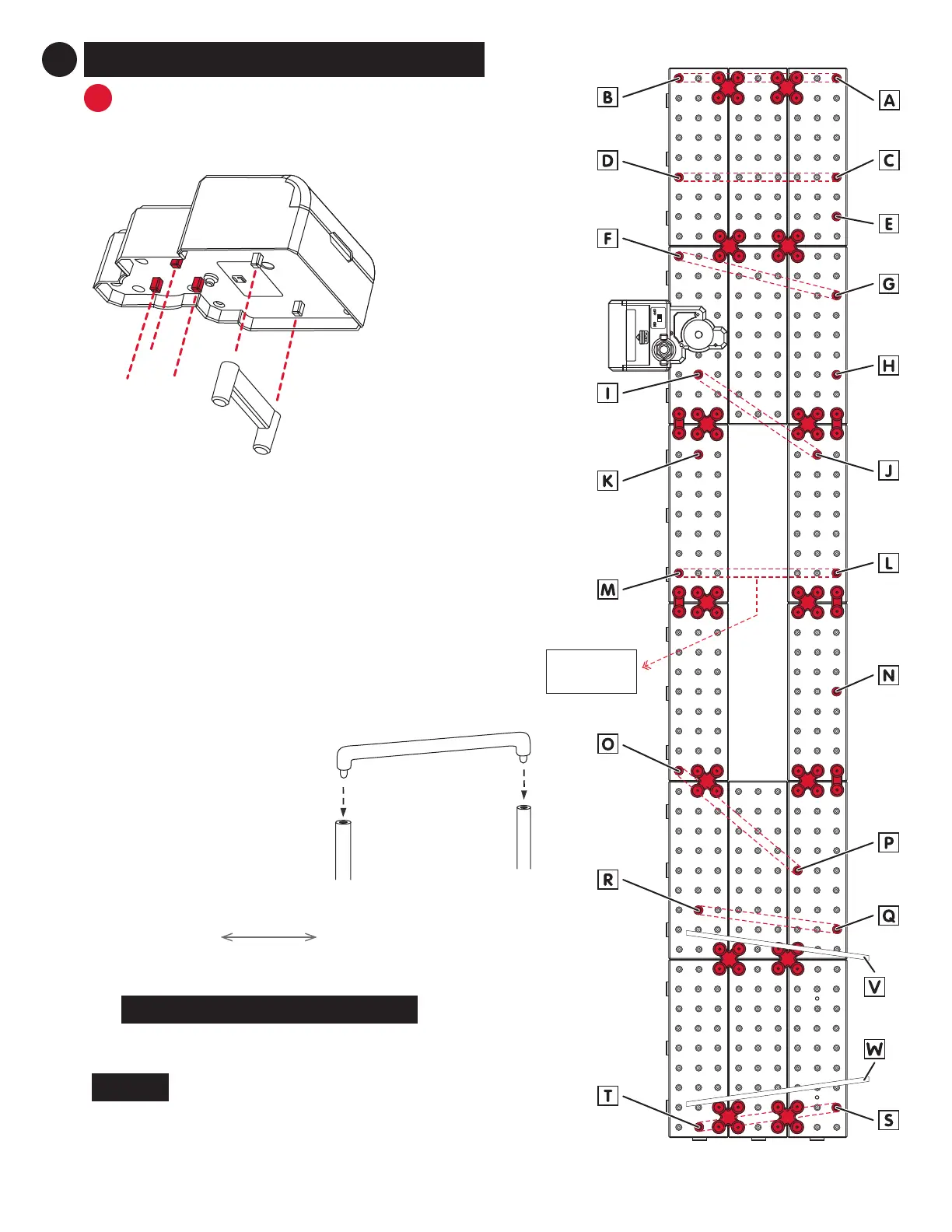

INSTALL ELEVATOR AND SHAFTS TO BASE
Illustrations are approximately 28% of actual size.
Step 1: Attach Power Box Stand to the Power Box.
Step 2: Firmly seat the posts from the Power Box
in the holes on the base.
Step 3: Use diagram on the Right for location
of each shaft. Push shaft into holes on base
until sturdy. Refer to drawings on pages 5-8 for
orientation to install shafts.
Step 4: Install shaft
connectors (dashed red lines)
to help stabilize shafts as rails
are installed and tension
is increased.
Posts attach
to Base
2
CONSTRUCTING THE ROLLER COASTER
A
NOTE:
Shaft V and shaft W are suspended above the base using
Arm B connections from shafts Q, R, S, and T.
FRONT
OF BASE
BACK
OF BASE
SHAFT TO BASE ORIENTATION
Shaft
Connectors
To Next Page
