CUT THE RAIL TO SIZE
15 cm
a
b
27 cm
c
36 cm
d
75cm
e
100cm
f
341 cm
g
410 cm
h
480 cm
i
495 cm
j
550 cm
Step 1: Measure each section and mark the cutting point with a pen. Rail measurements
are in Centimeters.
Step 2: Cut each section according to your measurement. Make sure to cut at a 90° angle.
Tip: To help avoid do-overs and using too much rail, cut generously (slightly longer than
required) to begin with. You can always cut a long rail shorter.
NOTES:

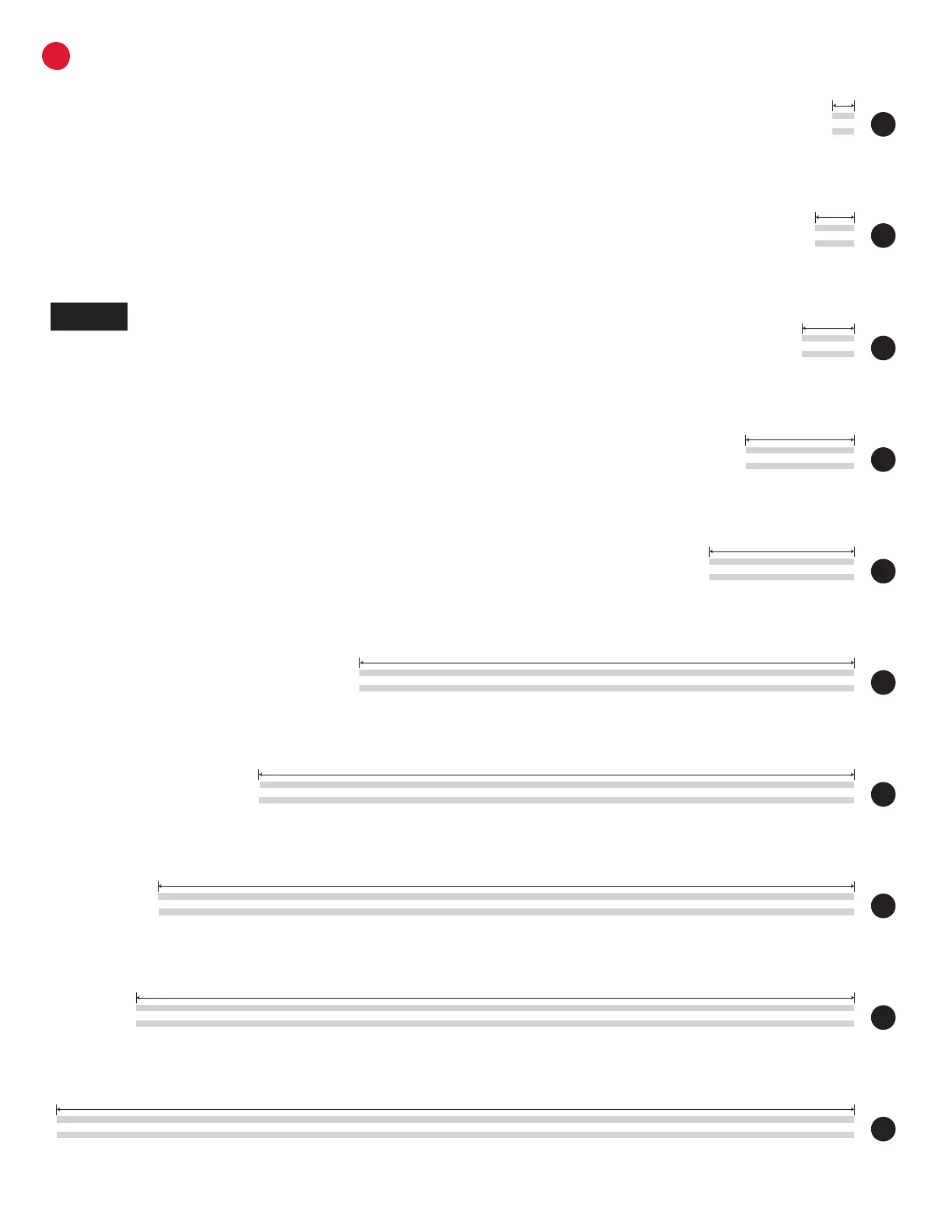

Illustration of rail lengths is 3% of actual size.
Please see the included full size drawings. This will simplify the
positioning of the base, arms, shafts, and the rail cut lengths.
