Rail Section 6:
Splitter C
Splitter C

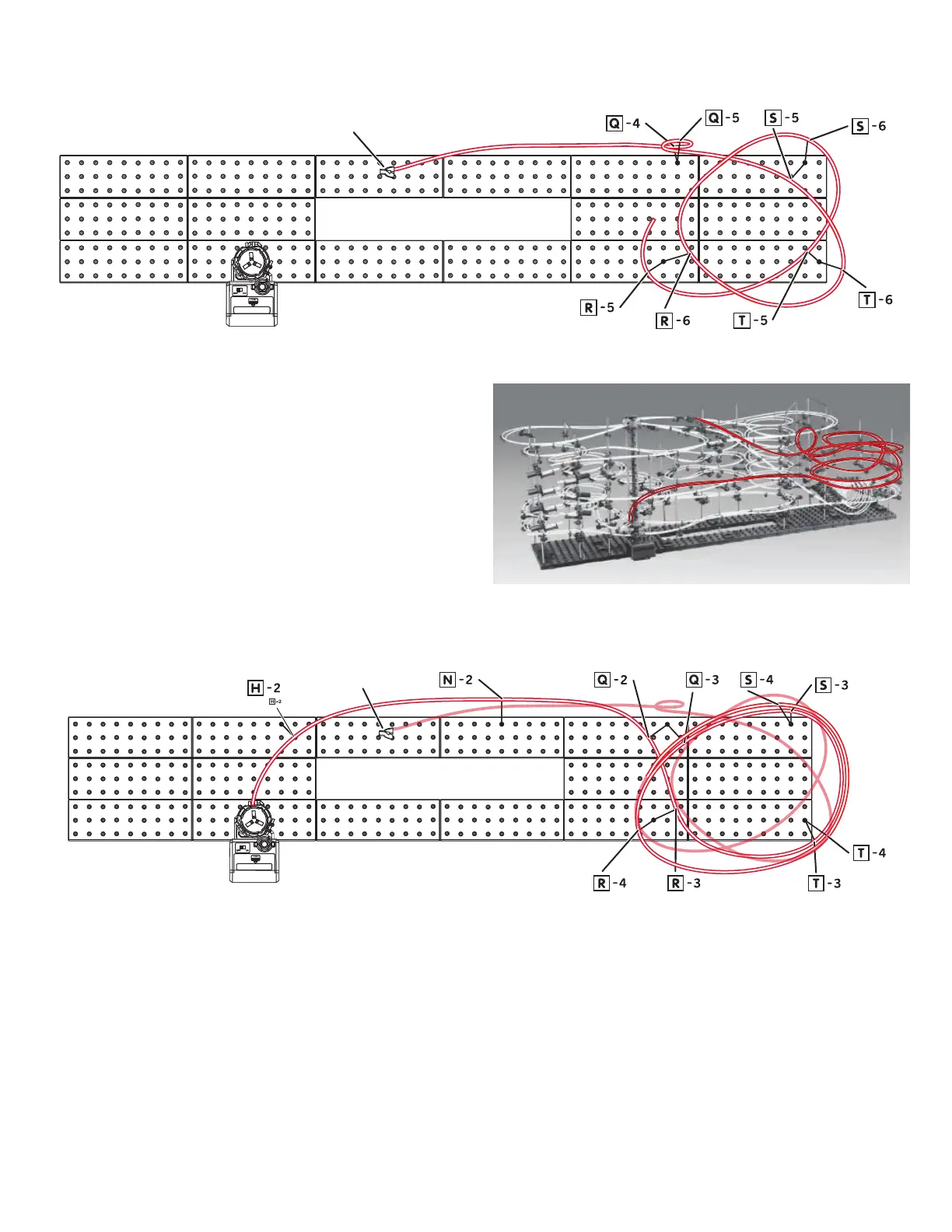

Step1: Start by attaching Rail I (495 cm) to the Rail Clip of
Splitter-C facing the back of the Base. Connect rst to
Arm Q-4 and loop up to Arm Q-5 and shift loop inside
closer to shaft Q and up through Arm S-5. Continue
through Arms T-6, S-6, T-5, and R-5. See next illustration to
continue.
Proceed from Arm R-5 to Arms S-4, T-4, R-4, Q-3, S-3, T-3,
R-3, Q-2, N-2, H2, and enter the back facing rail clip on the
second Elevator Ring. Repeat entire step for second rail.
