Rail Section 7:
Splitter B

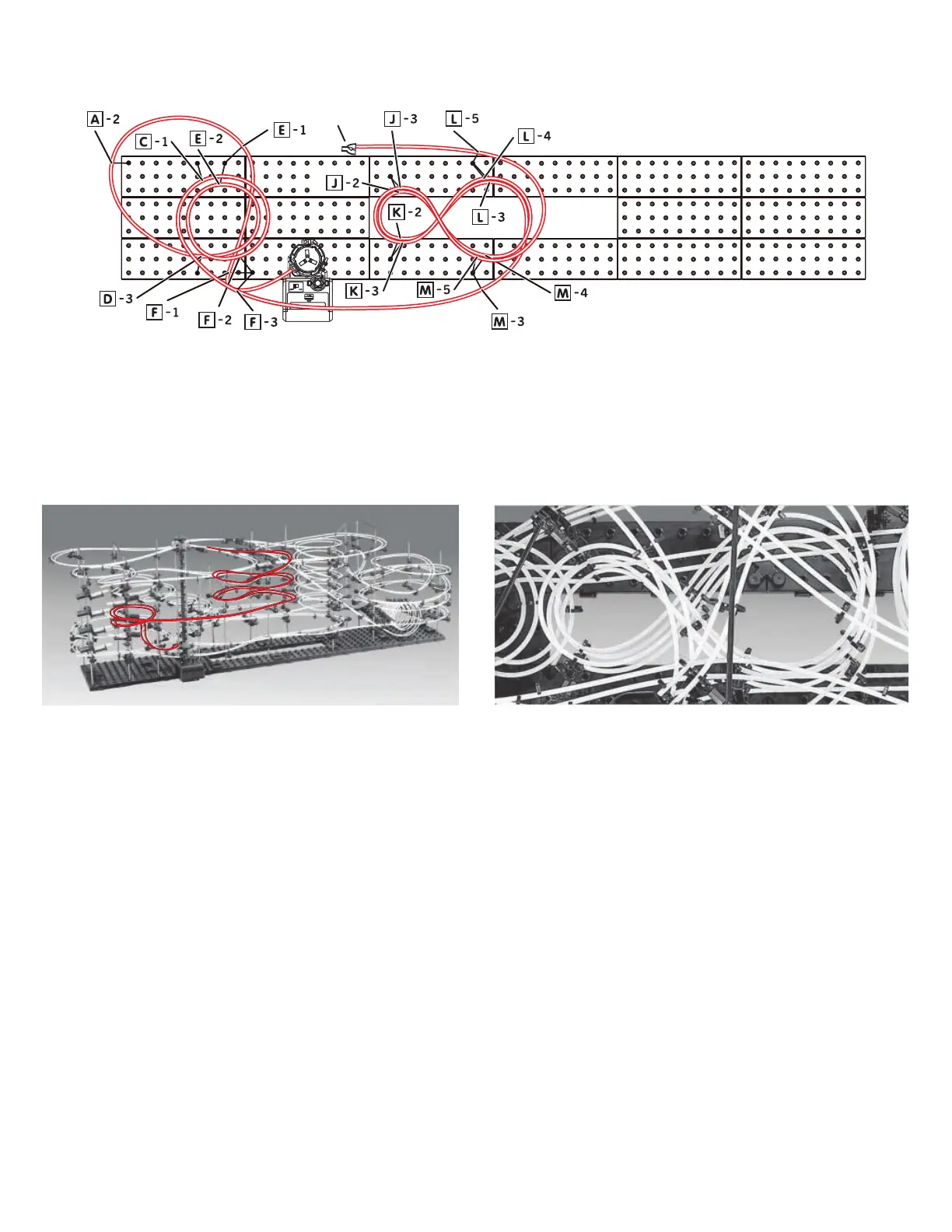

Step1: Start by attaching Rail G (410 cm) to the inside Rail Clip of Splitter-B facing the back of the Base. Connect rst to Arm
L-5 and then create a gure 8 pattern by connecting through M-5, J-3, K-3, L-4, M-4, J-2, L-3, and out to M-3. Continue past
the elevator to F-3, C-1, F-2, E-2, D-3, A-2, E-1, F-1 and enter Elevator Ring 2 on the Left side. Repeat step for second rail.
Step1:
