INSTALL ELEVATOR AND SHAFTS TO BASE
Illustrations are approximately 28% of actual size.
Step 1: Attach Power Box Stand to the
Power Box.
Step 2: Firmly seat the posts from the
Power Box in the holes on the base.

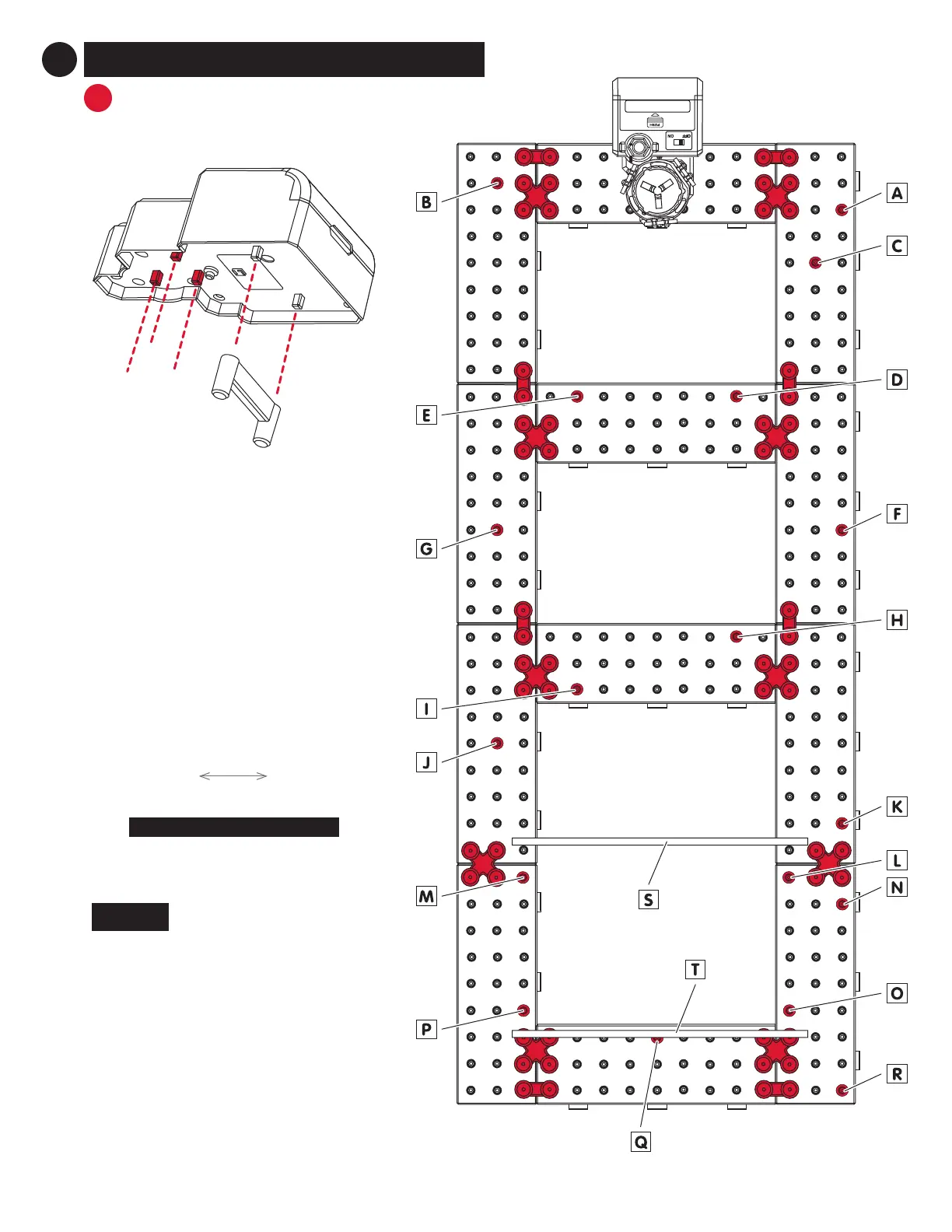

Step 3: Use diagram on the left for
location of each shaft. Push shaft into
holes on base until sturdy. Refer to
drawings on pages 5 through 7 for
orientation to install shafts.
FRONT
OF BASE
BACK
OF BASE
Posts attach
to base
2
CONSTRUCTING THE ROLLER COASTER
A
NOTE:
Shaft S and shaft T are suspended above
the base using Arm B connections from
shafts L, M, O, and P.
BACK
OF BASE
FRONT
OF BASE
SHAFT TO BASE ORIENTATION
