1

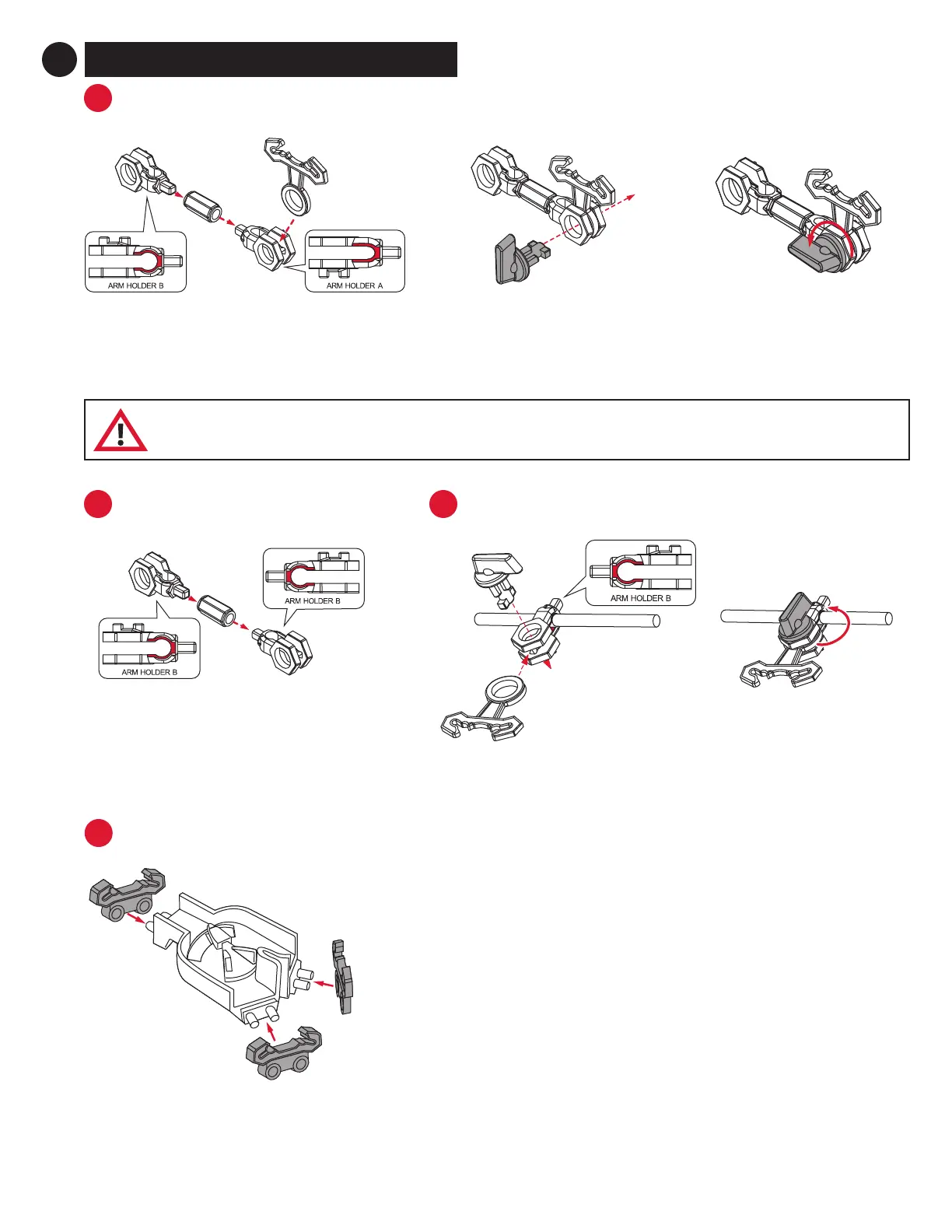

PREPARE ARMS AND RAIL SPLITTER
Attach one Arm Holder B on each side
of the Arm Sheath.
B ARM B QTY: 4
RAIL SPLITTERS
Step 1: Attach one Rail Clip on each
of the Rail Splitter posts.
A
ARM A QTY: 66
Slide Arm holder B onto shaft. Insert Arm Lock through Arm
Holder B and Rail Clip. Turn the Arm Lock counter-clockwise to
secure the Rail Clip in place. (These will be assembled during the
shaft assembly step.)
ARM C QTY: 10
Step 1: Attach one Arm Holder A and one
Arm Holder B with one Arm Sheath. Insert
one Arm Clip into Arm Holder A.
Step 3: Turn the Arm Lock
counter-clockwise to secure
the Arm Clip in place.
Step 2: Insert Arm Lock through
Arm Holder A and Arm Clip.
To avoid damaging parts, do not move or adjust the Rail Clip while locked in the arm. To move the Rail Clip, release
Arm Lock by turning clockwise, position Rail Clip as desired, then secure Arm Lock again.
C
D
