30
18.

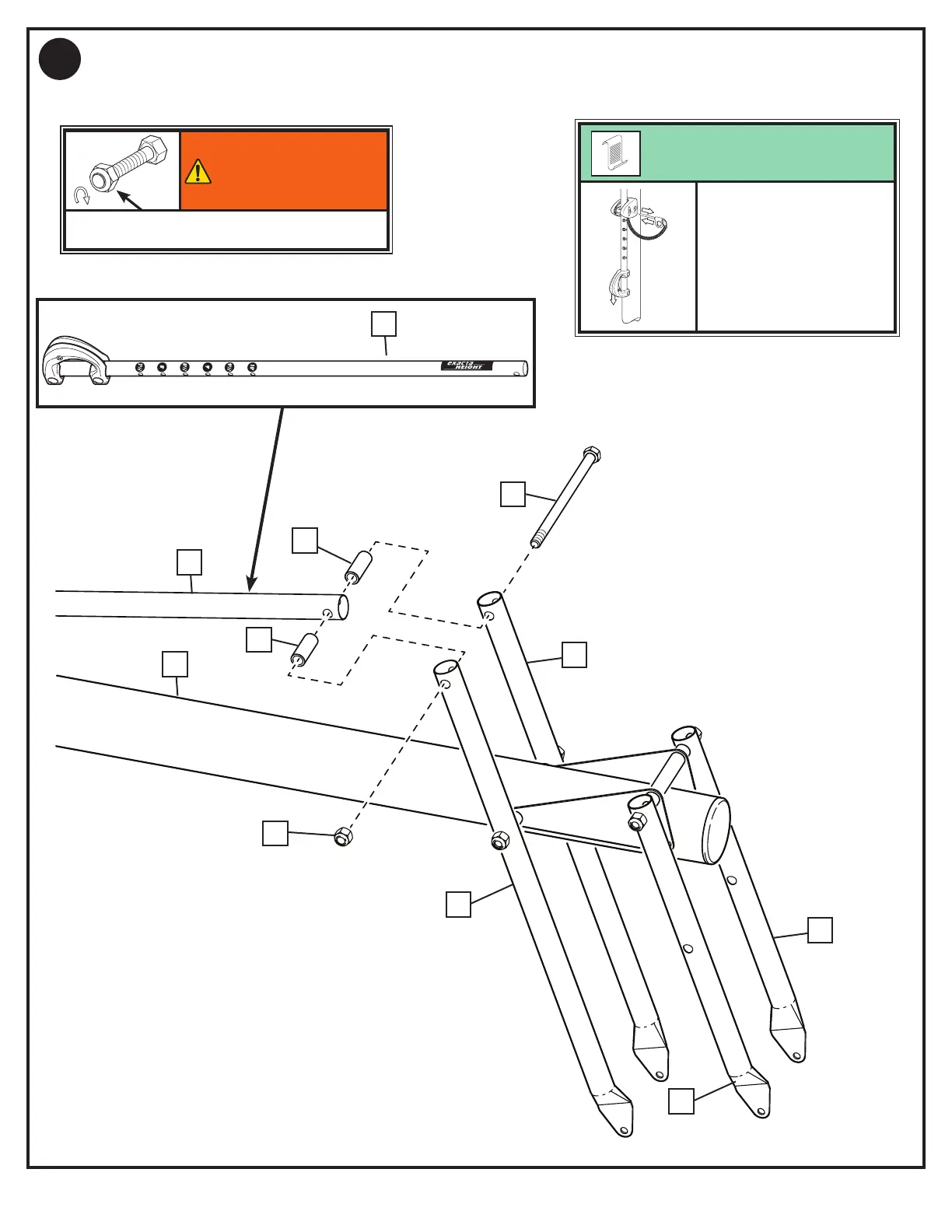

Install handle assembly to lower elevator tubes (32) using bolt (29), spacers (36), and nut (31)
as shown.
NOTE:
Before moving on to
next step, make sure
adjustable system
assembly is set to the
10’ (3.05 m) setting.
29
32
31
32
36
36
4
3
35
35
TIGHTEN BOLT (29) IN LOCK NUT (31) UNTIL
FLUSH (EVEN) WITH LOCK NUT’S OUTER EDGE.
WARNING!
3
