SPAN F500P - Features and Overview

2 3
WARNING!
• NO modi cation of this equipment is allowed. It is unsafe to modify the
equipment from its original state. This product is deemed safe to use with
only the original parts as delivered. Unauthorized use of any modi ed
equipment may result in serious injury or death.
• DO NOT replace any components of the lift without consulting with Span,
and follow proper instructions when replacing any components.
• DO NOT service any parts of the lift while in use with a patient.
• It is NOT safe to load the equipment more than the indicated maximum safe
working load.
• IF any accessories with lower load capacity than the equipment itself is used,
DO NOT load the equipment more than the lowest maximum safe
working load.
• REMOVE the battery pack if the lift will not be used for some time, to prevent
battery leakage. Periodically check the battery pack as well as the charger if
necessary
• This equipment DOES NOT consist of any materials or ingredients to
which patients are exposed, that may cause bodily harm or injury.
• Prolonged exposure or physical contact with any part of the equipment will
not cause skin irritation, allergic reaction, etc.
• Using accessories, detachable parts, or materials not described in the
instruction manual MAY RESULT IN SERIOUS INJURIES.
• Keep the equipment away from children and pets when in use. IT MAY
CAUSE SERIOUS INJURY OR DEATH.
• Keep the equipment away from pests or pest infested area. Diseases
transferred from pests to the equipment MAY CAUSE SERIOUS ILLNESS
to patients upon contact.
• If the lift is left under the sun for long period of time, be CAUTIOUS as the
surface of the lift may be hot.
• There are no risk if the lift is exposed to reasonably foreseeable
environmental conditions
• Caution! The controller contains parts and assemblies that could be
susceptible to damage by electrostatic discharge (ESD). To reduce
the likelihood of this from happening, one should be grounded prior to
operate the controller.
• DO NOT use the lift on a inclined surface that that greater than 5°

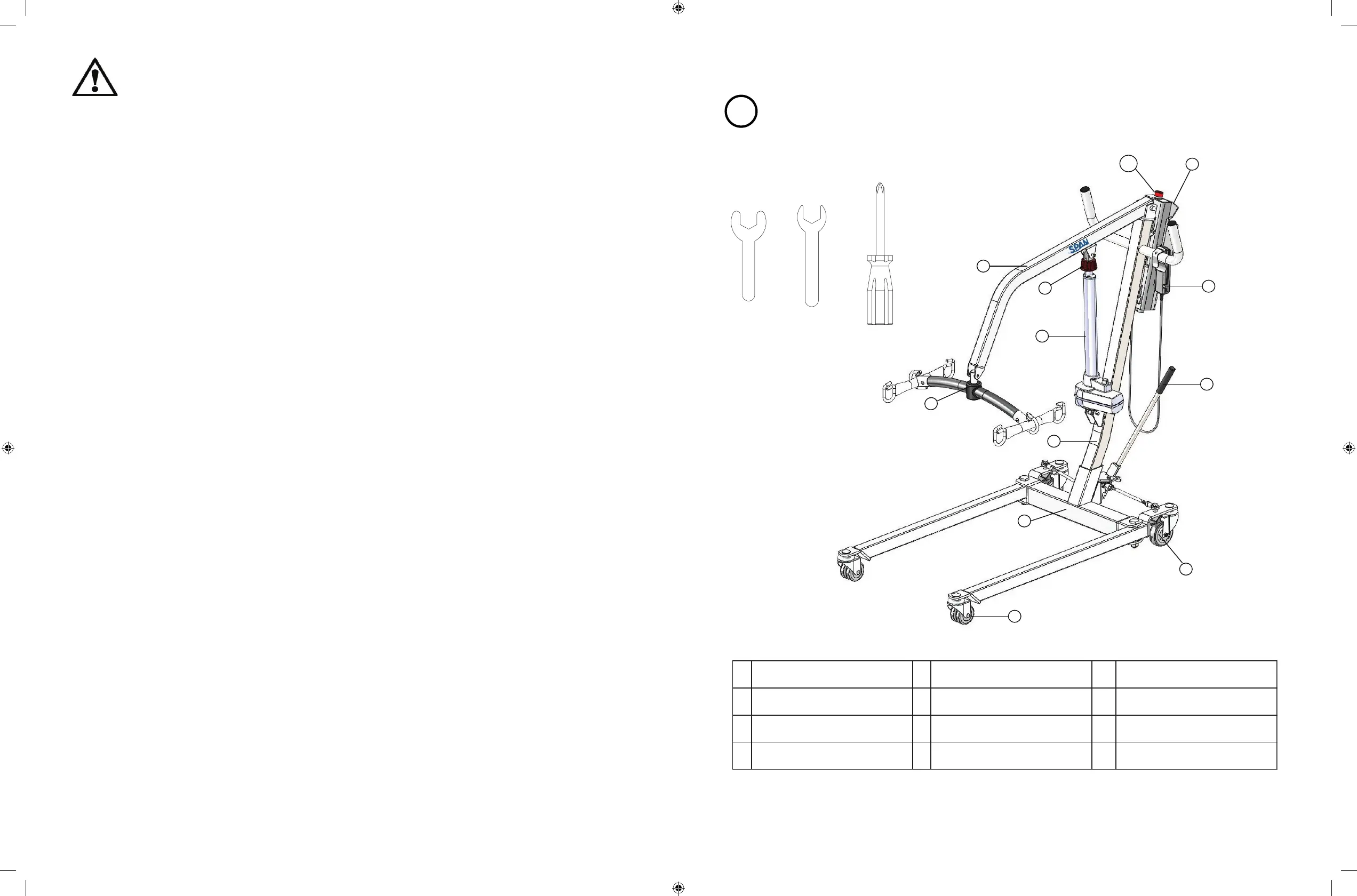

FEATURES & OVERVIEW
i
Prior to assembly, unpack all parts from the shipping carton and check for any
missing parts. Contact you dealer immediately if a part is missing.
1
4
2
5
7
9
10
8
6
3
12
11
1 Spreader Bar
8.6 lb
(3.9 kg)
5 Leg Opening Handle
1.1 lb
(0.3 kg)
9 Mast
14.3 lb
(6.5 kg)
2 Boom
9.9 lb
(4.5 kg)
6 Rear Caster 10 Actuator
8.4 lb
(3.8 kg)
3 Control Unit
11 lb
(5 kg)
7 Front Caster 11 Emergency Lowering
4 Hand Control
0.7 lb
(0.3 kg)
8 **Base
46.5 lb
(21.1 kg)
12 Emergency Stop Button
* F500P model shown
UNLESS OTHERWISE SPECIFIED:
SHEET: SCALE:
PART NUMBER:
DESCRIPTION:
DATE: DRAWN BY:
MATERIAL:
FINISH:
2920 PACIFIC DRIVE
NORCROSS, GA 30071
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
BESTCARE LLC. ANY REPRODUCTION IN PART
OR AS A WHOLE WITHOUT THE WRITTEN
PERMISSION OF BESTCARE LLC IS PROHIBITED.
8/24/2017
1 of 1
16mm Wrench
ALL DIMENSIONS IN MM
1-6
6-30
30-120
120-400
0.1
0.2
0.3
0.5
16mm
Wrench
17mm
Wrench
Screwdriver
** Heaviest detachable part
