SPAN F500P - Specifications and Options

4 5
C
A
B
D
600
E G 700
H
F
K
J
I
L
M
mm (in)

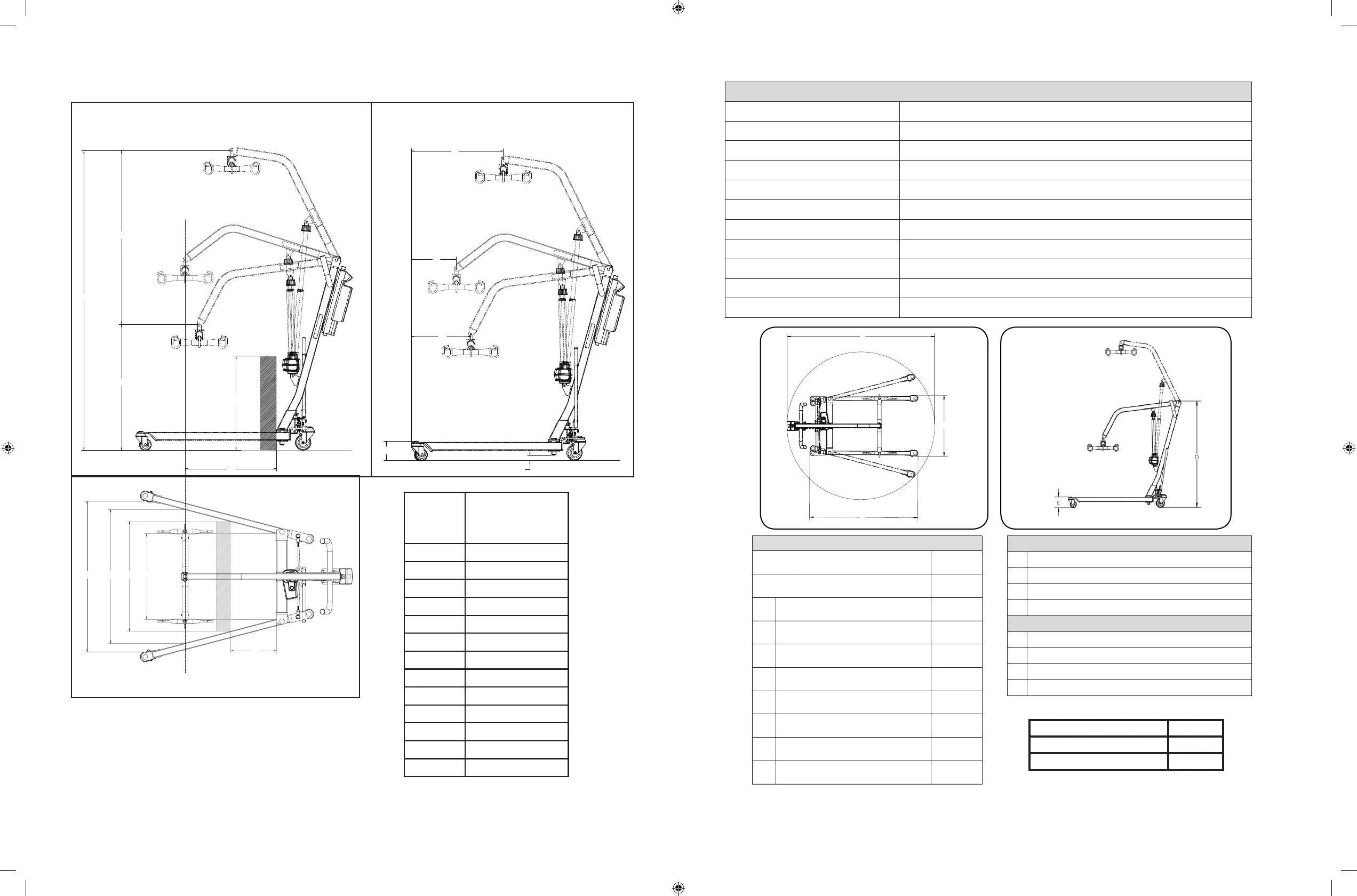

A 1910.8 (75.2)
B 1108.4 (43.6)
C 802.4 (31.6)
D 582.9 (22.9)
E 963.2 (37.9)
F 852.5 (33.6)
G 547 (21.5)
H 291.9 (11.5)
I 583.2 (23.0)
J 285.3 (11.2)
K 377 (14.8)
L 123.4 (4.9)
M 33.4 (1.3)
F500P
SPECIFICATIONS & OPTIONS
* Span-America is committed to continuous improvements of our products therefore the specs,
dimensions, and features listed above are for guidance only and subject to change without prior notice.
B
A
H
Specications of Control Unit
Input Voltage 220-240VAC 50Hz / 110-120VAC 60Hz
Output Voltage 24 VDC
Battery Pack 24 VDC 5AH
Lift Control Handset and Panel
Protection Class IP54 (Protection against dust and splash of water)
Sound Level Under Full Load 16db
Sound Level Under No Load 11db
Lift Cycles Per Charge 25 full cycles under full load
Overload Warning by LCD
Battery Status by LCD
Duty Cycle 10% Duty cycle (Max 2 minute ON,18 minute OFF)
Standard Features
1 6-Point Spreader Bar
2 4” Rear Caster with Brake
3 3” Dual Front Caster
4 Power Control Unit
Optional Features
1 2-Point Spreader Bar
2 Charging Cradle
3 Digital Scale
4 Additional Battery pack
Dimensions & Specifications
Model
F500P
Safe Working Load
500 lb
A
Base Length
44.9"
B
Base Ext. Width - Closed
24.9"
C
Base Ext. Width - Opened
42.9"
D
Mast Height
48.3"
E
Front Caster Height
4.5"
F
Lifting Height - Lowest
25.8”
G
Lifting Height - Highest
69.1”
H
Turning Diameter
61.3”
F500P
Lift Weight Unloaded (lb)
100.6
Lift Weight Unloaded (kg)
45.7
