Double check all assemblies for tightness and read operating
instructions carefully prior to use.
Twist the RED EMERGENCY STOP BUTTON clockwise.
Verify the Lifting and Lowering Functions by pressing either the UP or
rst few times the lift is used to transfer a new user.
For optimum performance the lift should be transported and stored in
following condition range:
-25°C to +5°C (-13°F to 41°F), and
+5°C to +35°C (41°F to 95°F) at a non-condensing relative humidity 0% to 90%
For optimum performance the lift should be operated in following condition
at a temperature range of +5°C to +40°C (+41°F to +104°F)
The lift will not have any potential electromagnetic or other interference with
other devices.
Actuator
Battery Pack
Release Handle
Emergency Stop Button
Up / Down Button
LCD Display Panel
Battery Pack
Charger
DC In
Not Used
Hand Control
Charging Cradle
(Optional)
Additional Battery Pack
(Optional)

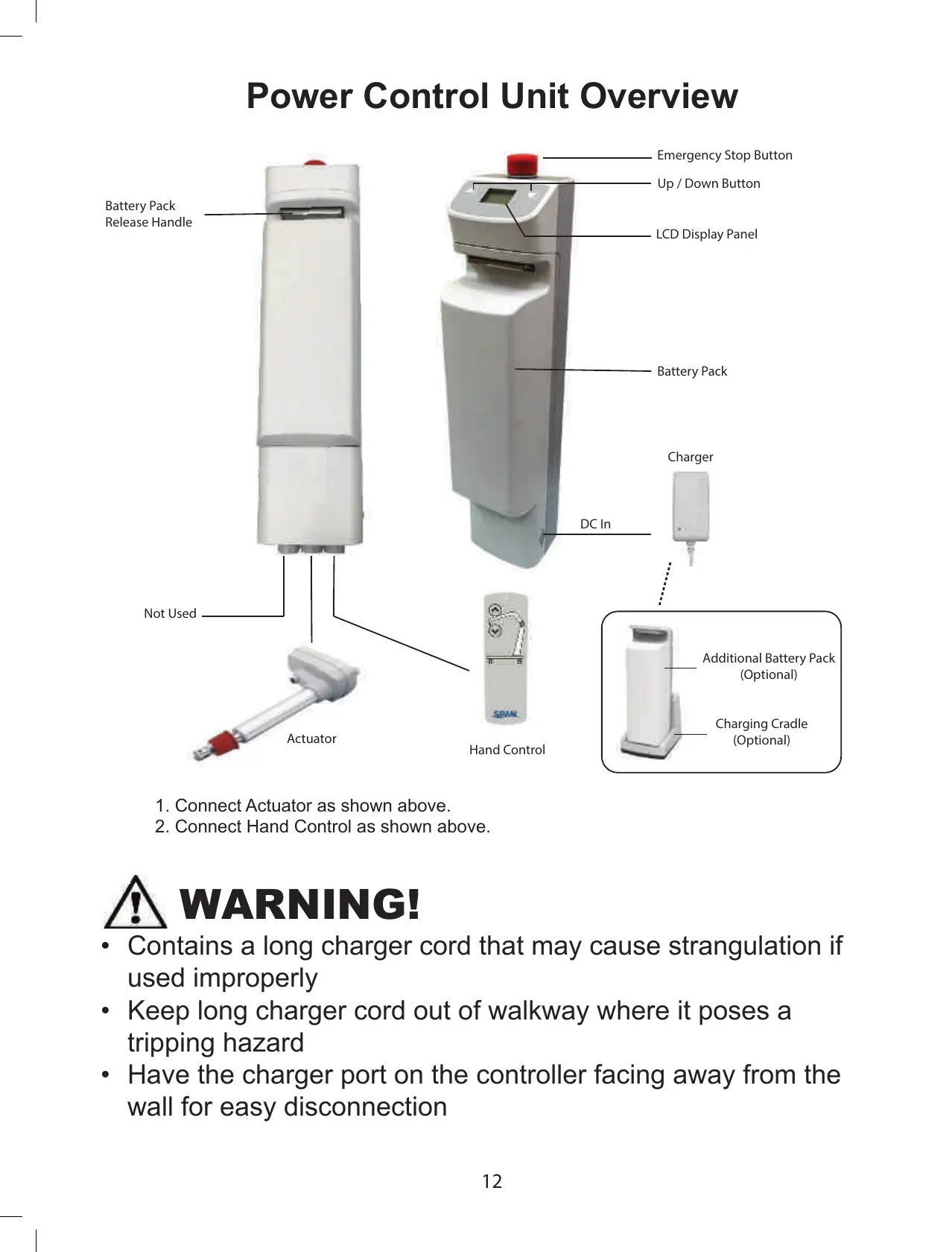

Power Control Unit Overview
1. Connect Actuator as shown above.
2. Connect Hand Control as shown above.
WARNING!
• Contains a long charger cord that may cause strangulation if
used improperly
• Keep long charger cord out of walkway where it poses a
tripping hazard
• Have the charger port on the controller facing away from the
wall for easy disconnection
