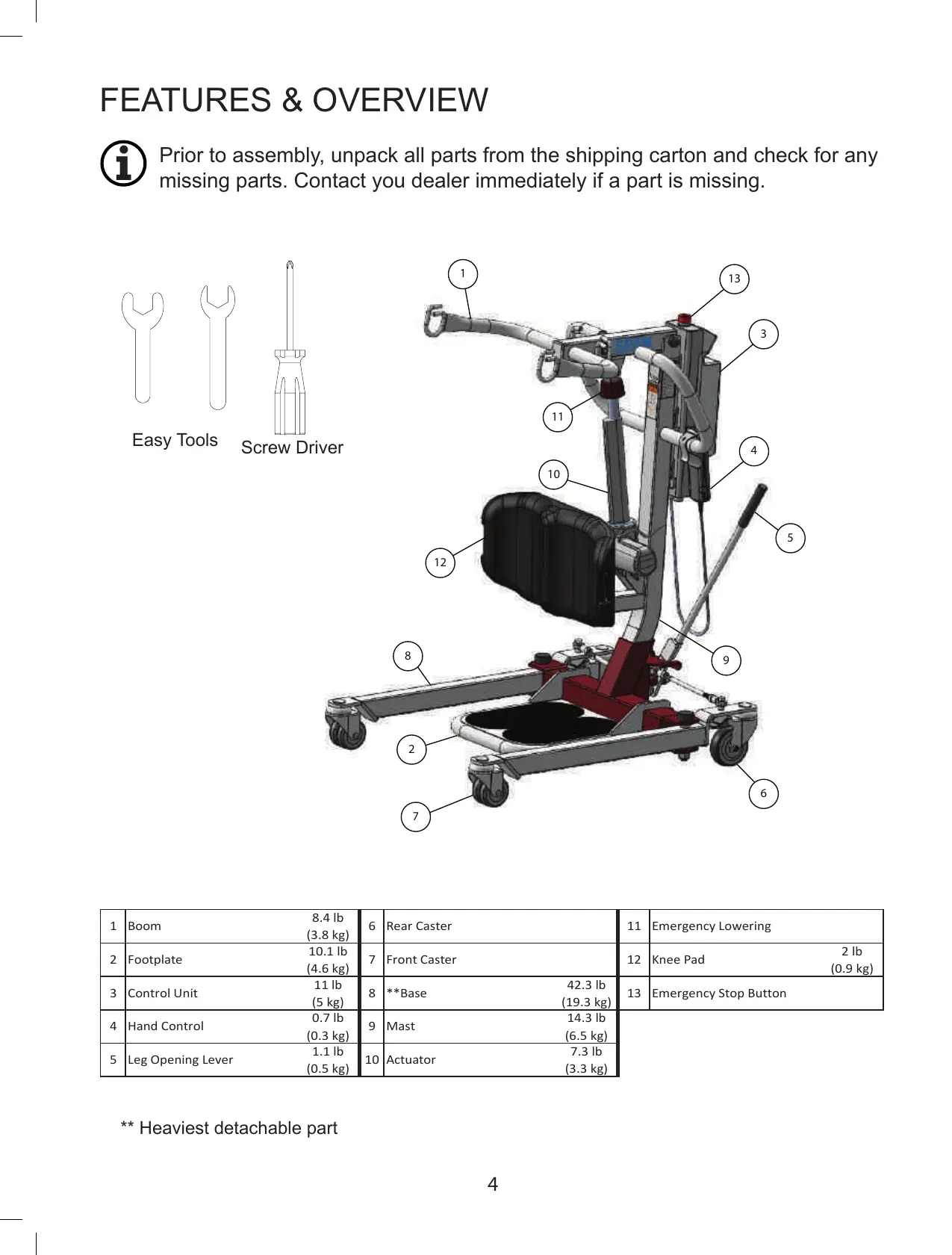

FEATURES & OVERVIEW
i
Prior to assembly, unpack all parts from the shipping carton and check for any
missing parts. Contact you dealer immediately if a part is missing.
2
8
7
6
9
5
4
3
13
11
10
12
1
1 Boom
8.4 lb
(3.8 kg)
6 Rear Caster 11 Emergency Lowering
2 Footplate
10.1 lb
(4.6 kg)
7 Front Caster 12 Knee Pad
2 lb
(0.9 kg)
3 Control Unit
11 lb
(5 kg)
8 **Base
42.3 lb
(19.3 kg)
13
4 Hand Control
0.7 lb
(0.3 kg)
9 Mast
14.3 lb
(6.5 kg)
Emergency Stop Button
5 Leg Opening Lever
1.1 lb
(0.5 kg)
10 Actuator
7.3 lb
(3.3 kg)
** Heaviest detachable part
