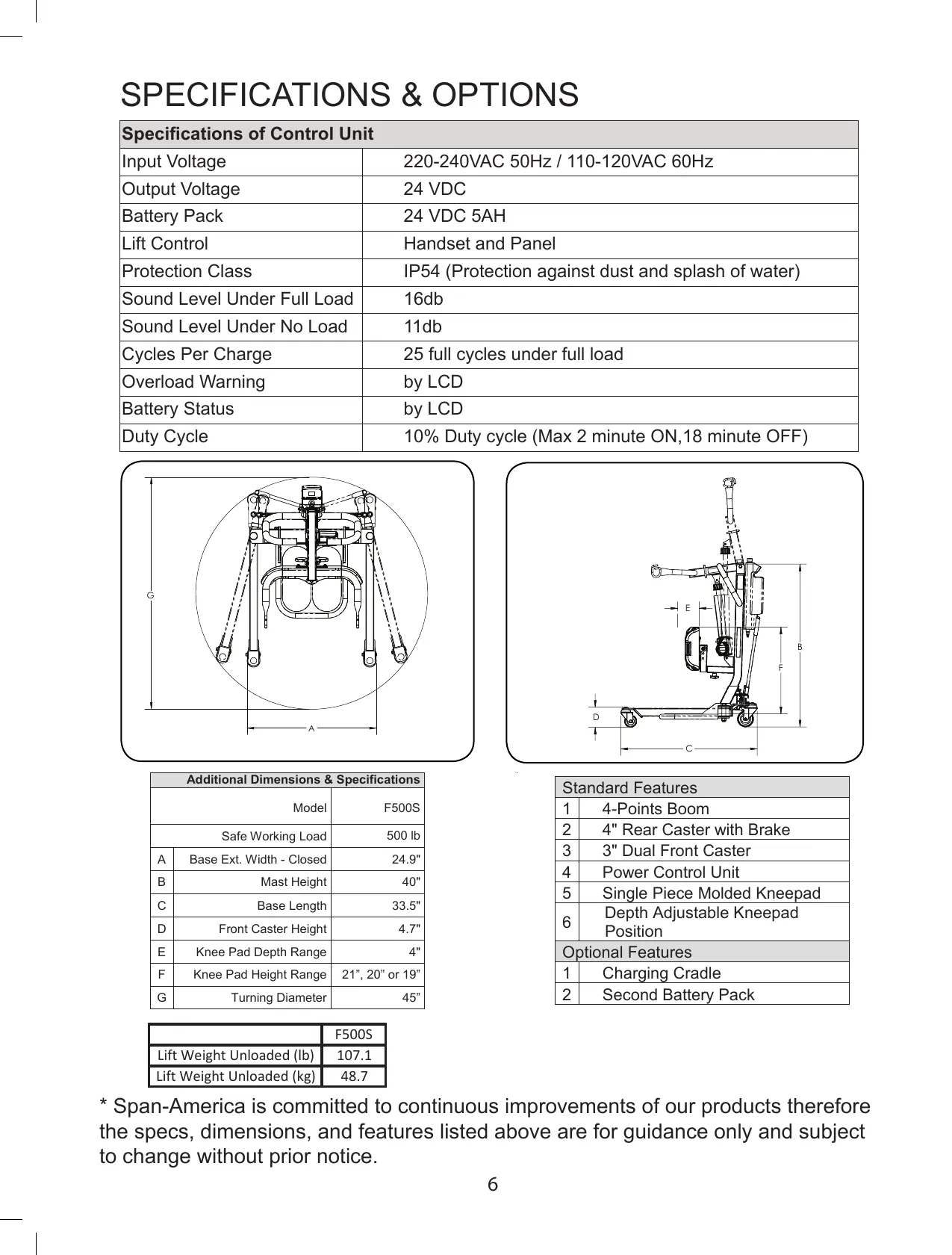

SPAN F500S - Specifications and Options; Control Unit Specifications; Additional Lift Specifications; Standard Features

6
* Span-America is committed to continuous improvements of our products therefore
the specs, dimensions, and features listed above are for guidance only and subject
to change without prior notice.
A
G
C
F
E
B
D
Additional Dimensions & Specifications
Model F500S
Safe Working Load
500 lb
A
Base Ext. Width - Closed
24.9"
B
Mast Height
40"
C
Base Length
33.5"
D
Front Caster Height
4.7"
E
Knee Pad Depth Range
4"
F
Knee Pad Height Range
21”, 20” or 19”
G
Turning Diameter
45”
Standard Features
1
4-Points Boom
2
4" Rear Caster with Brake
3
3" Dual Front Caster
4
Power Control Unit
5
Single Piece Molded Kneepad
6
Depth Adjustable Kneepad
Position
Optional Features
1
Charging Cradle
2
Second Battery Pack
F500S
Lift Weight Unloaded (lb)
107.1
Lift Weight Unloaded (kg)
48.7
TC12 Control Box
SPECIFICATIONS & OPTIONS
Specifi cations of Control Unit
Input Voltage 220-240VAC 50Hz / 110-120VAC 60Hz
Output Voltage 24 VDC
Battery Pack 24 VDC 5AH
Lift Control Handset and Panel
Protection Class IP54 (Protection against dust and splash of water)
Sound Level Under Full Load 16db
Sound Level Under No Load 11db
Cycles Per Charge 25 full cycles under full load
Overload Warning by LCD
Battery Status by LCD
Duty Cycle 10% Duty cycle (Max 2 minute ON,18 minute OFF)
