SPAN F500S - Control Box and Actuator Overview

7
F500S
oad
A sed
B ight
C Length
D ight
F ge
G eter
F500S
F500S

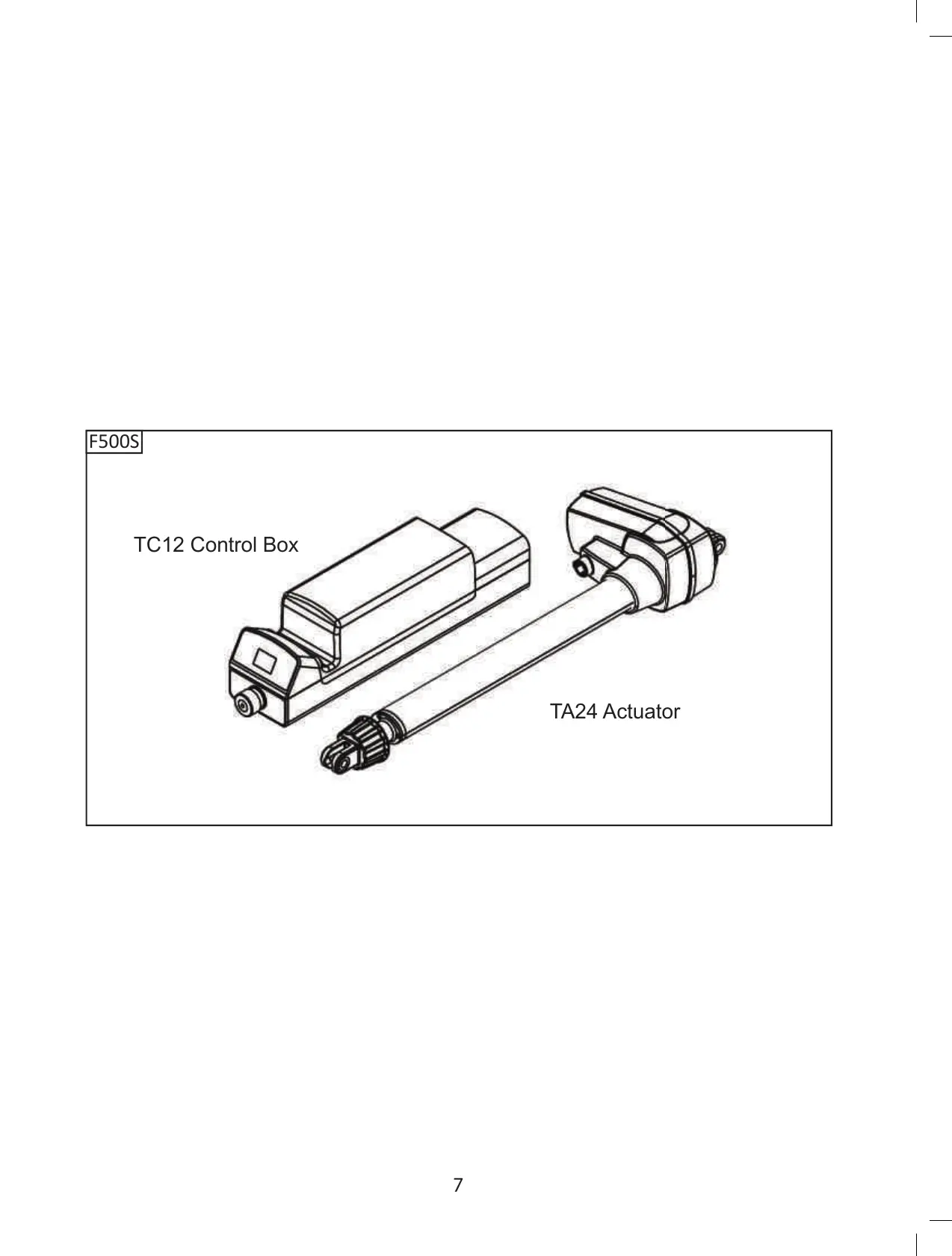

TA24 Actuator
TC12 Control Box
SPECIFICATIONS & OPTIONS
Specifi cations of Control Unit
Input Voltage 220-240VAC 50Hz / 110-120VAC 60Hz
Output Voltage 24 VDC
Battery Pack 24 VDC 5AH
Lift Control
Sound Level Under Full Load
Sound Level Under No Load
by LCD
Battery Status by LCD
10% Duty cycle (Max 2 minute ON,18 minute OFF)
