SP-B80HI / SP-B80I Planetary Mixer
1
SP- B80HI / SP-B80I PLANETARY MIXER
SPECIFICATION
Model SP-B80HI / SP-B80I
Bowl Size
80 Quarts
(I.D. 50 x H. 46.8 x TH. 2 cm)
Motor 3 H.P.
Electrics
220V/380V/415V
50/60HZ 3PH
Speeds - Agitator
(1) 1
st
Speed 60 rpm
(2) 2
nd
Speed 105 rpm
(3) 3
rd
Speed 176 rpm
(4) 4
th
Speed 310 rpm
Speeds –
Attachment Hub*
(1) 1
st
Speed 67 rpm
(2) 2
nd
Speed 118 rpm
(3) 3
rd
Speed 198 rpm
(4) 4
th
Speed 349 rpm
Dimensions (cm)
(LxWxH)
105 x 77 x 152
125 x 90 x 180 carton
Weight
Gross 455 kg
Net 550 kg
Standard
Accessories*
Stainless Steel Bowl
with Beater, Whisk,
Spiral Hook, and Bowl
Truck
Optional
Accessories*
Attachment Hub, Bowl
Guard, Meat Mincer,
Vegetable Slicer…
Unitcm
Because of continual improvements, strict
accuracy of description cannot be guaranteed.
* Attachment Hub and Bowl Guards are
standard accessories for Model SP-B80HI
Note: Parts could be different subject
to different models.
CONTENTS
Specification……………………………….1
Installation…………………………………3
Electrical Connection……………………...3
Safety………………………………….……4
Correct Use of the Mixer………………….4
Gear Oil Meter……………………………...4
Annual Maintenance and Gear Oil Renewal….4
Fitting the Bowl…………………………..5
Bowl Lift & Bowl Guard………………...5
Tool Selection………………………………5
Fitting Mixing Tools………………………5
Speed Selection………………………..6
Controls and Operation…………………..6
Attachments………………………………...7
Care of the Mixer……………………….7
Mixing Capacities……………………..8
Maintenance………………………………...9
Fault Finding chart………………………..9
Electrical Wiring Diagram……….…...11~14

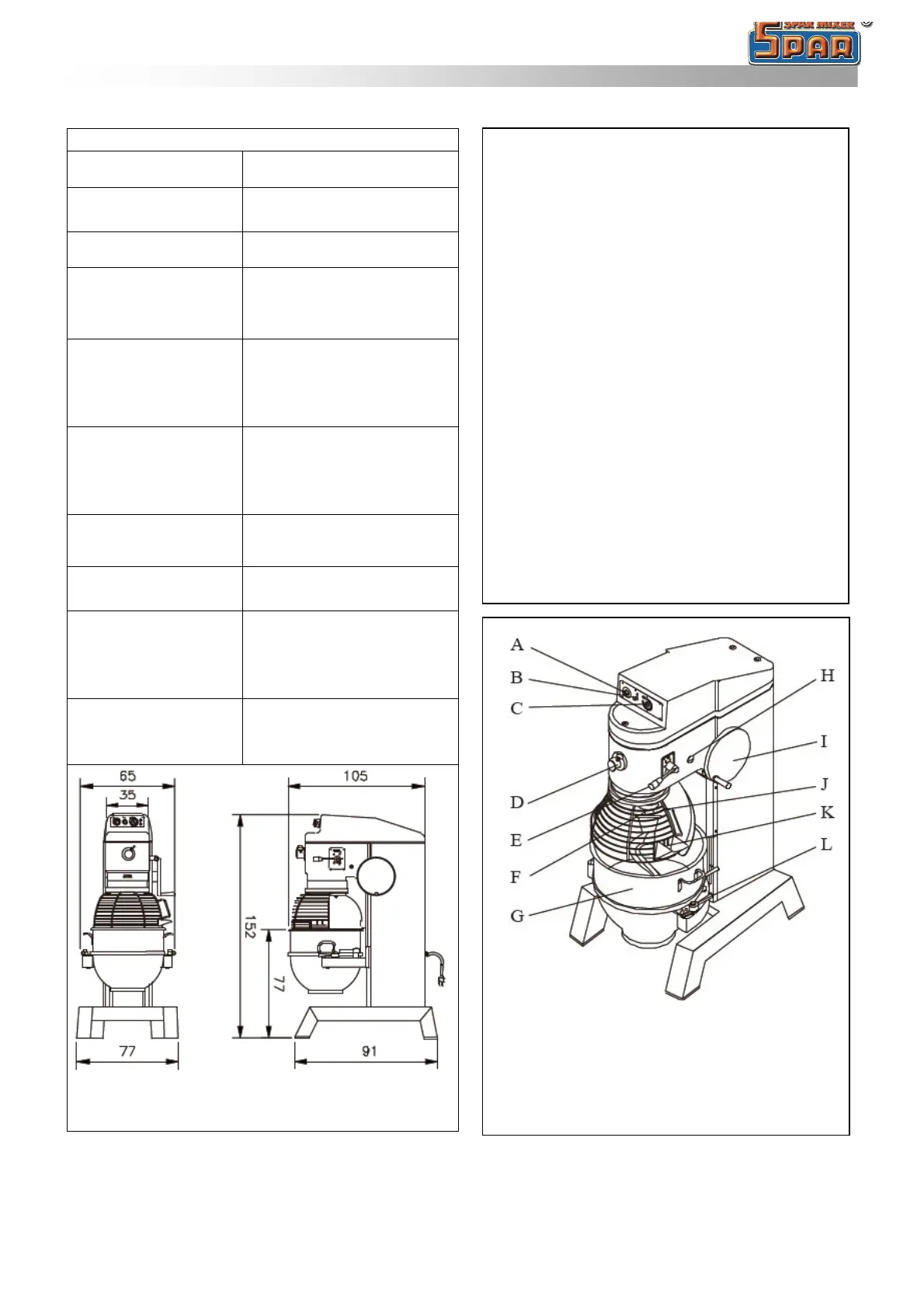

(A) Emergency Stop Button (G) Bowl
