Spartus EasyCUT 40E - The Process of Cutting

USER’S MANUAL
EN
15
A
Power indicator
B
Abnormal indicator – overheating
C
Abnormal indicator – secure cap
is mounted incorrectly
D
Indicator – shows that cutting process
is carried out (The pilot arc is currently
working)
E
Cutting current adjustment knob
F
Two position switch
– normal work/gas test
G
Compressed air supply switch
H
Toggle switch ON/OFF
1
Start – Stop
2
5
Pilot Arc
6
8
Shield nozzle
9

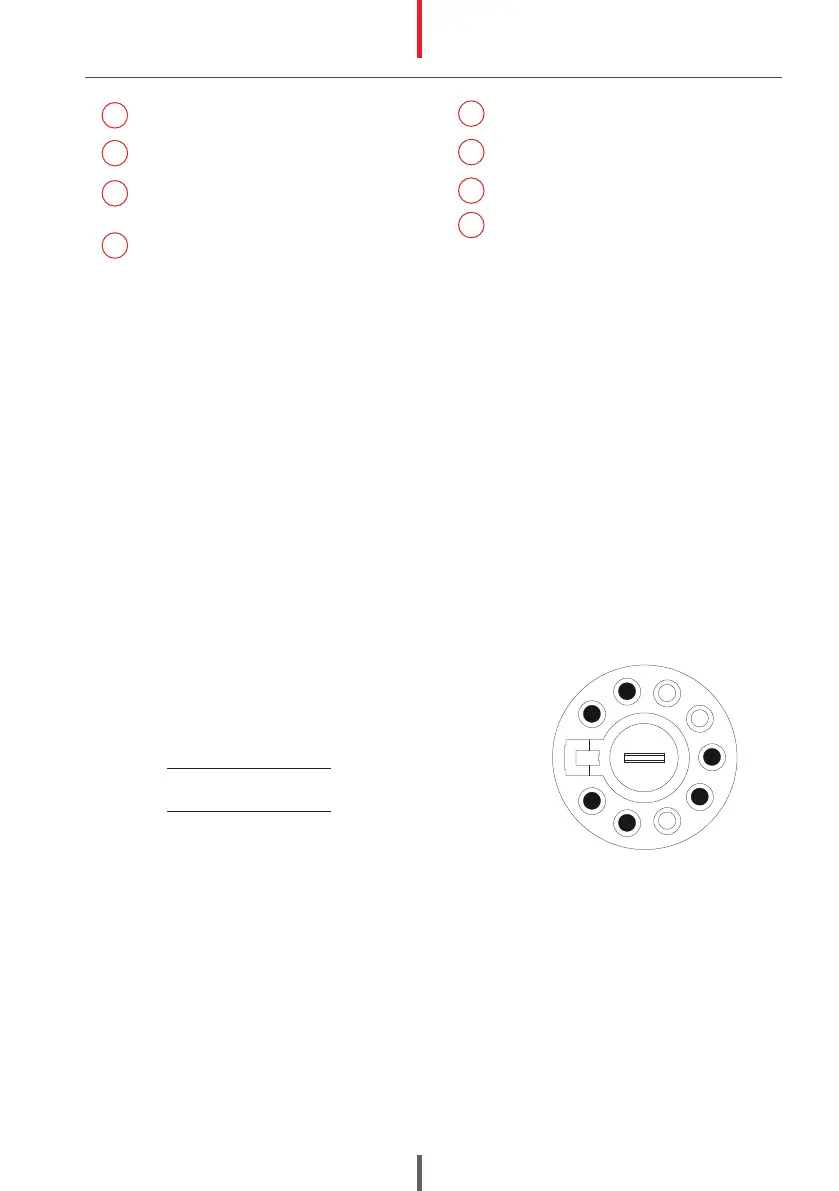

7.8 CENTRAL CONNECTOR – SETUP OF PINS
The device and plasma torch are equipped with
central connector.
1
2 3
4
5
6
7
8
9
7.7 THE PROCESS OF CUTTING
SPARTUS® EasyCUT 40E / 40E Compressor are equipped in standard with system of contactless
arc ignition with HF – high-frequency generator. There is no need for the nozzle tip to contact
the surface to ignite the plasma arc.
For manual plasma cutting, use a special spacers, included to the plasma torch. It is important
to puncture properly through the material and guide the plasma burner at a right speed to
maintain the proper penetration through material.
You should replace nozzles or electrodes for a new one in the following cases:
• when the nozzle head (the hole in the nozzle) is deformed, discalibrated,
• when electrod has cavities above 1mm,
• during the cutting plasma arc appear green flames,
• cutting gap is inclined or too wide,
• the arc flame is diffuse (is not condensed).
