16 CHANNEL, FULLY CONFIGURABLE POWER AMPLIFIERS
INSTALLATION
THE CONTROL OUTPUT
This terminal provides a 12V DC signal
suitable for triggering automated switchers,
some motorized screens, some electric
curtain controls, etc. This voltage is present
only when the amplier is active or on. When
the amplier turns off, the 12V signal is off.
STEP DESCRIPTION
1. Check the requirements of the device you want
to control.
The control output has a maximum current
capability of 150 mA.

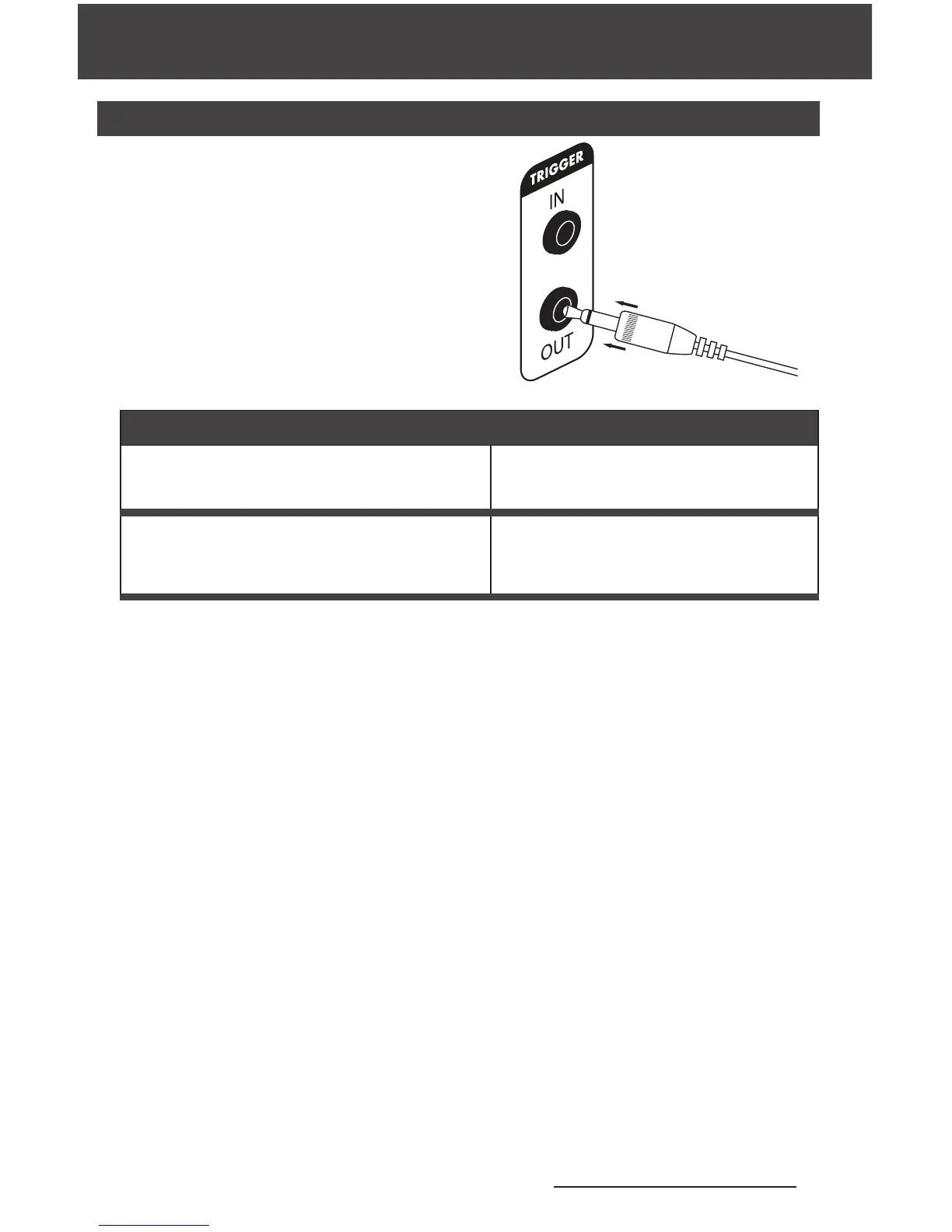

2. Connect the 3.5 mm Jack to the control output
maintaining proper polarity
(tip = +).
