SpeakerCraft SC2-50 User Manual

14
www.SpeakerCraft.com
INSTALLATION
SpEAkER wIRE CONNECTIONS
CAUTION! All speaker wire connections must be made with the amplier off.
STEP DESCRIPTION
1. Label all wires.
If you label the wires for their destination,
rather than which terminal of the
SpeakerCraft 2-Channel Amplifier they
are connected to, it will be easier to
reconfigure your system in the future.
2. Connect one stripped wire
end or banana plug to the
black terminal and one to
the red terminal.
A. Split the speaker wire insulation so
that at least two inches of each
conductor are separated.
B. Strip one half inch of insulation
from the end of each conductor
of the speaker wire.
C. Attach banana plugs or twist the
strands of wire together and insert
them into the appropriate binding post.

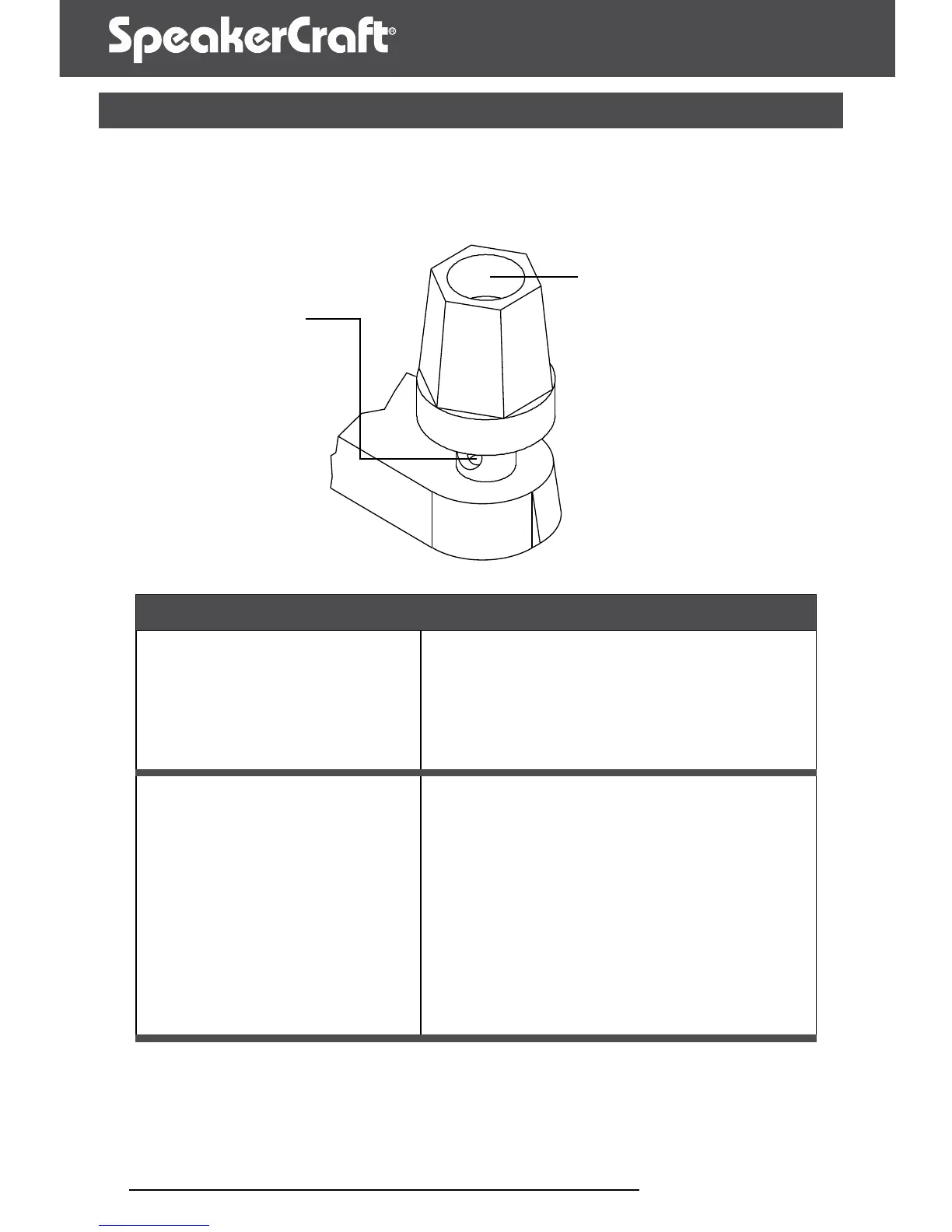

Bare Wire
Unscrew the red or
black plastic knob,
insert the bare wire
end into the opening,
and then tighten the
knob until the wire is
securely clamped
Banana Plugs
There are many types
of banana plugs, some
crimp, some solder. The
SpeakerCraft gold banana
plug has 3 quick-connect
binding post for the bare
wire on the body of the
plug. A banana plug is
simply inserted into the
jack at the end of the
amplier’s binding post.
Dual banana plugs will t
the binding post.
