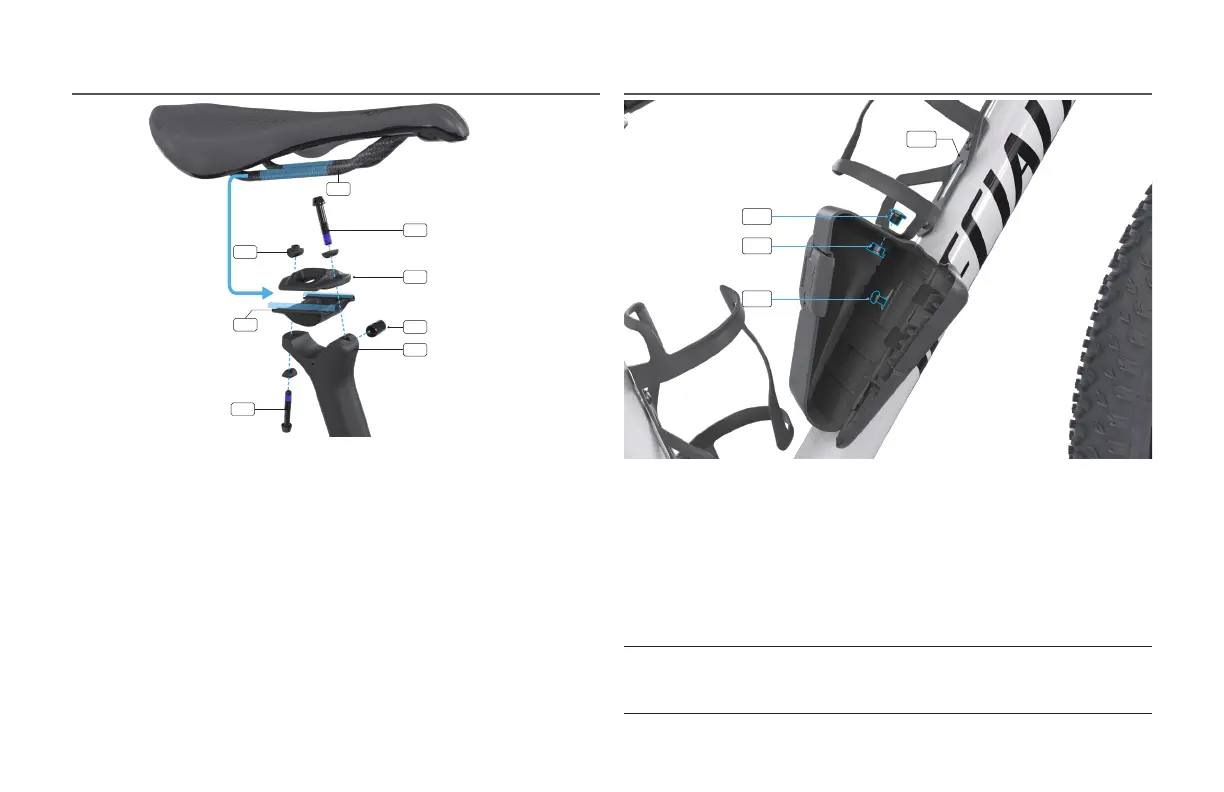

5.5. Installing the saddle
H
E
D
B
G
A
C
F
Assemble the base clamp (A) and top clamp (B) onto the seatpost head
(C).
Insert the barrel nut (D) into the seatpost head using a 6 mm hex key to
hold it in place. Place the washer on the front bolt (E), then insert the
front bolt into the hole in the seatpost head threading it loosely into the
barrel nut.
Place the washer on the rear bolt (F), then insert the rear bolt into the
hole in seatpost head threading it loosely into the nut (G).
Lift up the top clamp and insert the saddle rails (H) into the channels of
the rail clamp.
Align the saddle horizontally with the ground then fully thread the bolts
into the barrel nuts.
Using a torque wrench and 4 mm hex bit, torque (clockwise) the front
bolt to 3.1 Nm / 27 in-lbf. Torque the rear bolt to 6.2 Nm / 55 in-lbf.
5.6. Installing the SWAT box
A
D
C
B
First, install the Zee cage (A) on the down tube. Using a torque wrench
and 3 mm hex bit, torque the bolts to 2.8 Nm / 25 in-lbf.
Insert the mounting bolt (B) through the SWAT Box mounting hole and
into the down tube boss. Using a torque wrench and 3 mm hex bit,
torque the bolt to 2.8 Nm / 25 in-lbf.
Insert the SWAT nut (C) from the inside of the SWAT Box and through
the hole on the base of the Zee cage, then insert the bolt (D) from the
outside of the SWAT Box through the bottom of the Zee cage into the
nut. Torque the nut and bolt to 2.8 Nm / 25 in-lbf.
CAUTION:
Only use SWAT bolts that come pre-installed on your
Epic WC. Aftermarket bolts may be too long and damage the frame
or bottom out in the boss causing a loose assembly.
