DERAILLEUR GUARD INSTALLATION

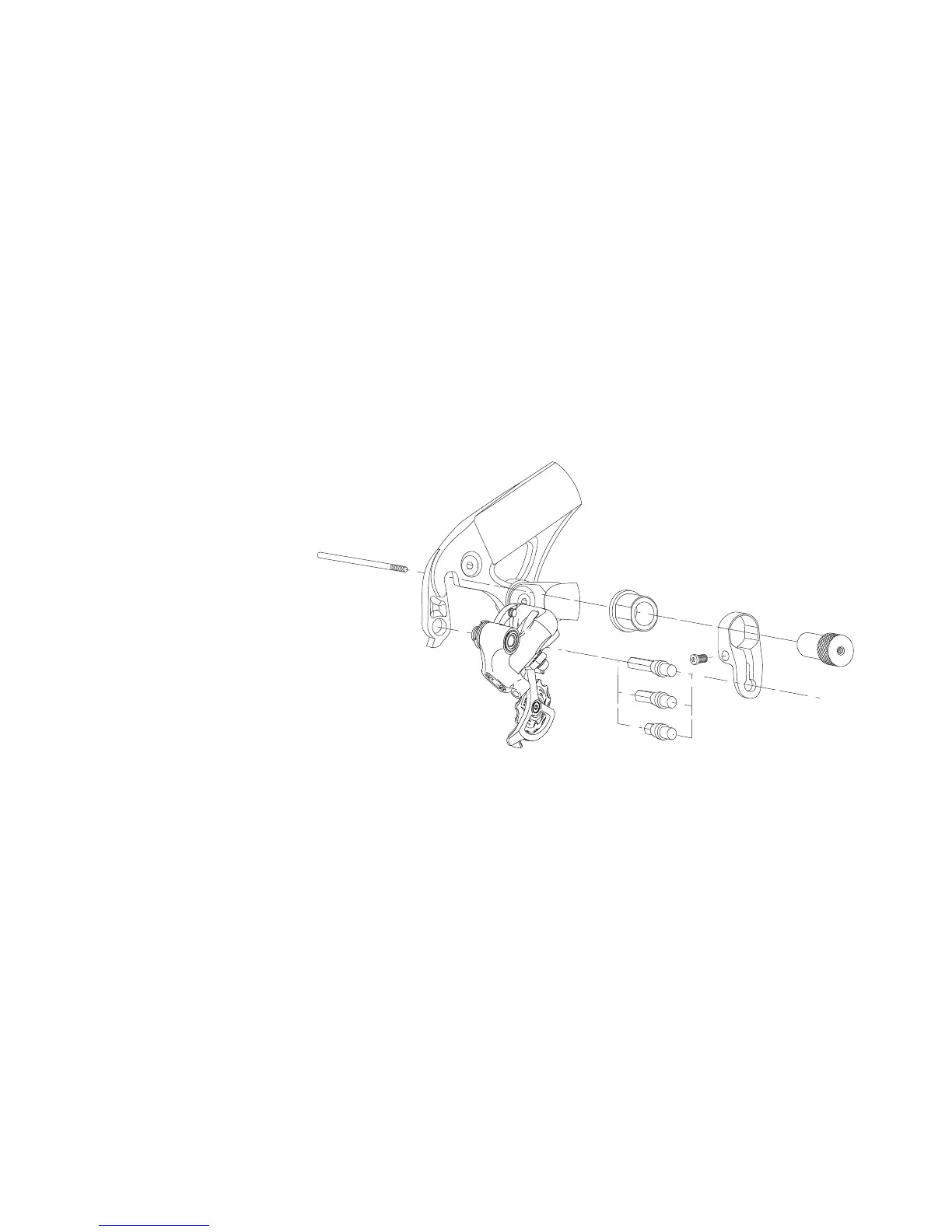

Derailleur Guard Installation (Q/R option):
1. Install rear derailleur on derailleur hanger.
2. Place rear wheel in frame and install Q/R,
with springs and without Q/R end nut.
3. Insert appropriate derailleur guard pin in derailleur.
4. Place guard sleeve in derailleur guard.
5. Slide derailleur guard and sleeve over guard pin and Q/R.
6. Install supplied Q/R nut and tighten Q/R.
7. Torque guard pinch bolt to 80 in-lbf (9 N-m).
The Specialized Derailleur guard is available separately through your local Specialized dealer. The guard
works with solid or Q/R axle types and is compatible with all Mountain bike models using the 2005-2006
Enduro/Demo derailleur hanger.
