Speco D1BD - Physical and Functional Description

D1BD User’s Guide
Rev. 1.0 (Dec 6, 2013)
10
2.3. Physical description
2.3.1. External View

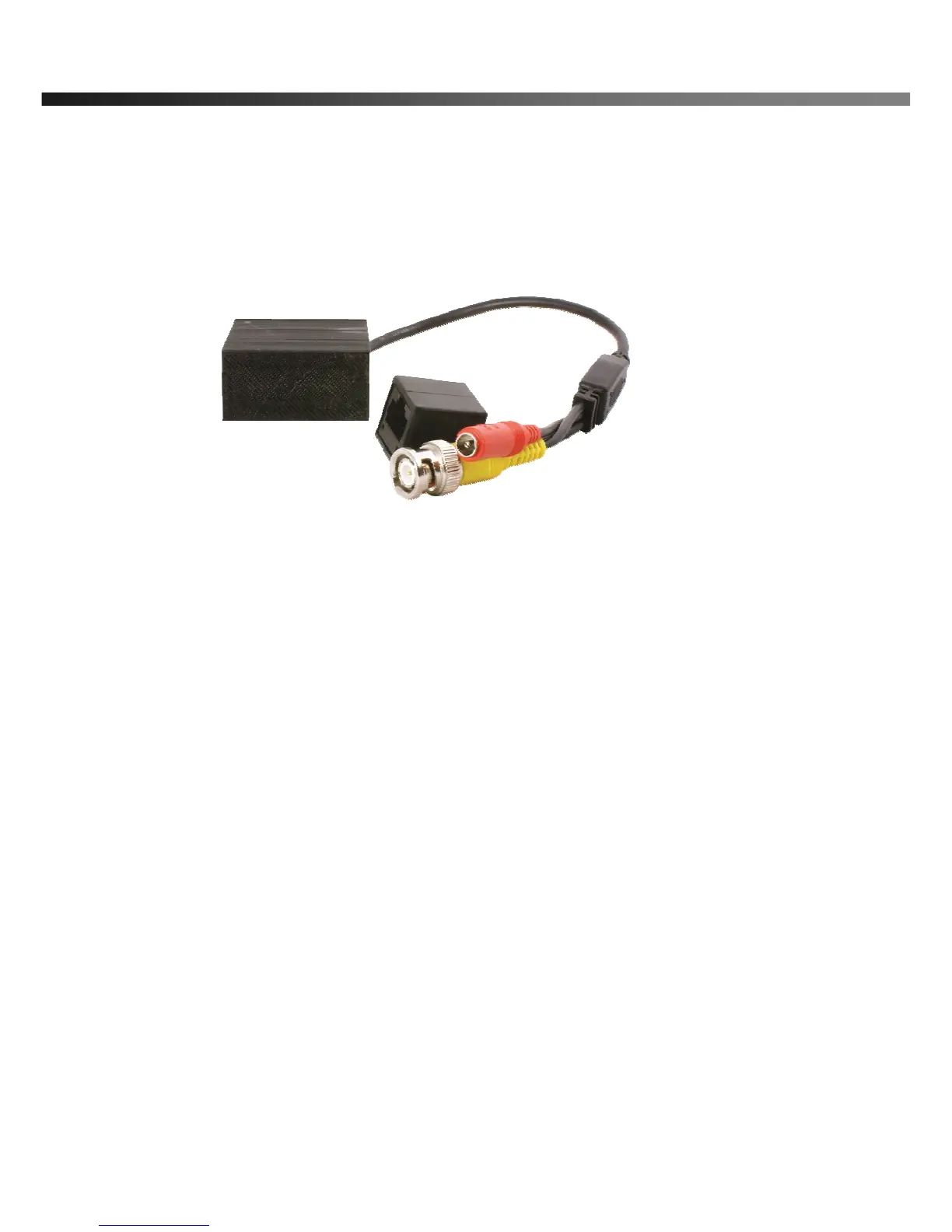

Figure 2-1. External view of ONSIP D1BD
2.4. Functional Description
 RJ-45: 100Mbps Ethernet (RJ-45).
 12VDC Input.
Apply power through 12VDC Input.
 CVBS Video In: Connect conventional analog video signal.
