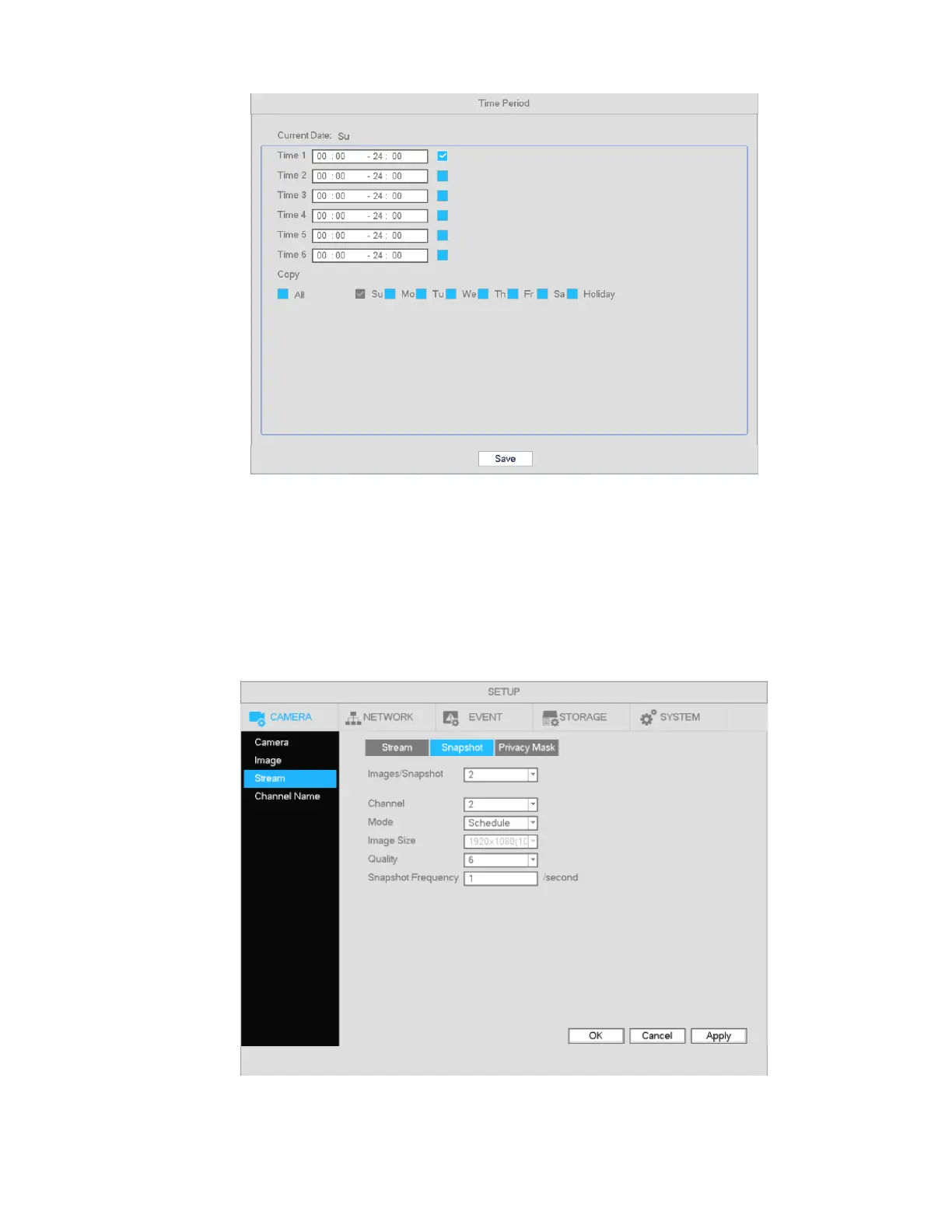

Figure 4-37
4.6.3.2 Motion Detection Snapshot
a) Go to Main Menu->Setup->Camera->Stream->Snapshot. See Figure 4-38.
b) Select the mode from the dropdown list and then set picture size, quality and snapshot frequency.
Click Apply to save.
c) Set up motion detection type and channel as describe in the previous section 4.6.3.1.
Figure 4-38
