Info

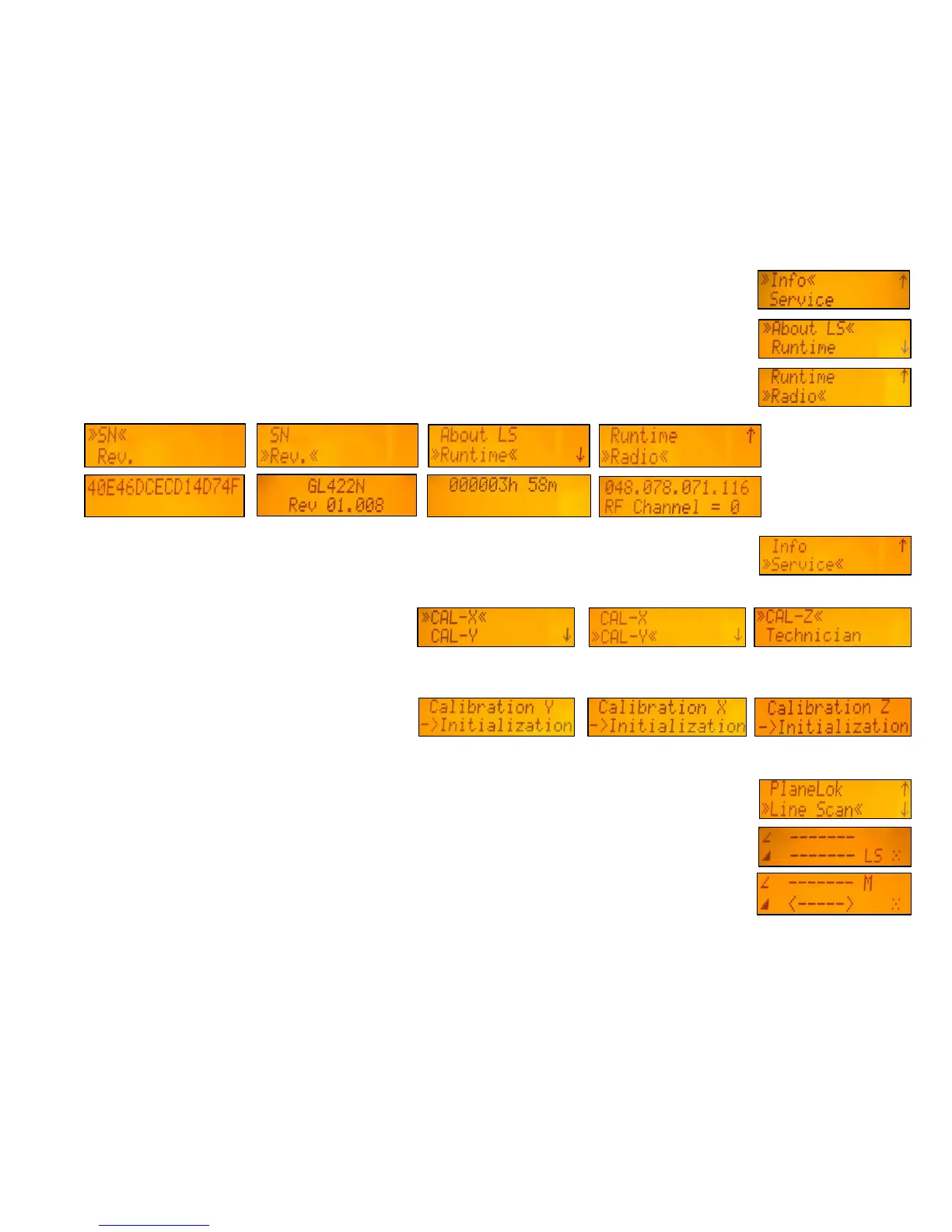

Press and release the M button at the Standard Display and select >>Info<<.
Up and Down Buttons can be used to toggle between About LS, Runtime and Radio
Press and release button E to confirm the selection.
The laser information (software version, serial number.), the runtime of the GL
or the radio channel will be displayed.
Service
Press and release the M button at the Standard Display and select >>Service<<.
Buttons Up/Down can be used to toggle between Calibration X and Calibration Y OR Calibration Z when
set up vertically.
Press and release button E to confirm the selection.
The calibration at the selected axis starts the field calibration procedure.
Line Scan
When setting up the unit vertical, Line Scan centers the rotor horizontally and can be used to align the laser
reference to a desired line position.
Press and release the M button at the Standard Display and select >>Line Scan<<.
Press and release button E to start Line Scan.
The rotor checks the limits of the X- axis (LS is flashing; all laser LEDs are turned off)
and stops at the center position.
Pressing the Manual button stops the movement and changes the unit into manual mode.
Corrections left and right can be done using Left/Right arrow buttons.
Press and release the Manual button to change the unit back to full automatic mode.
