Spectrum Digital, Inc
2-4 XDS560v2 STM JTAG Emulator Technical Reference
The female JTAG connector attached to the end of the emulator tail plugs onto the
target’s male pin header. The figure below shows how the XDS560v2 STM emulator
header plugs onto the target’s JTAG header
The figure below shows the factory installed configuration, MIPI60 to CTI20.
Target Board
DSP
Emulator Tails

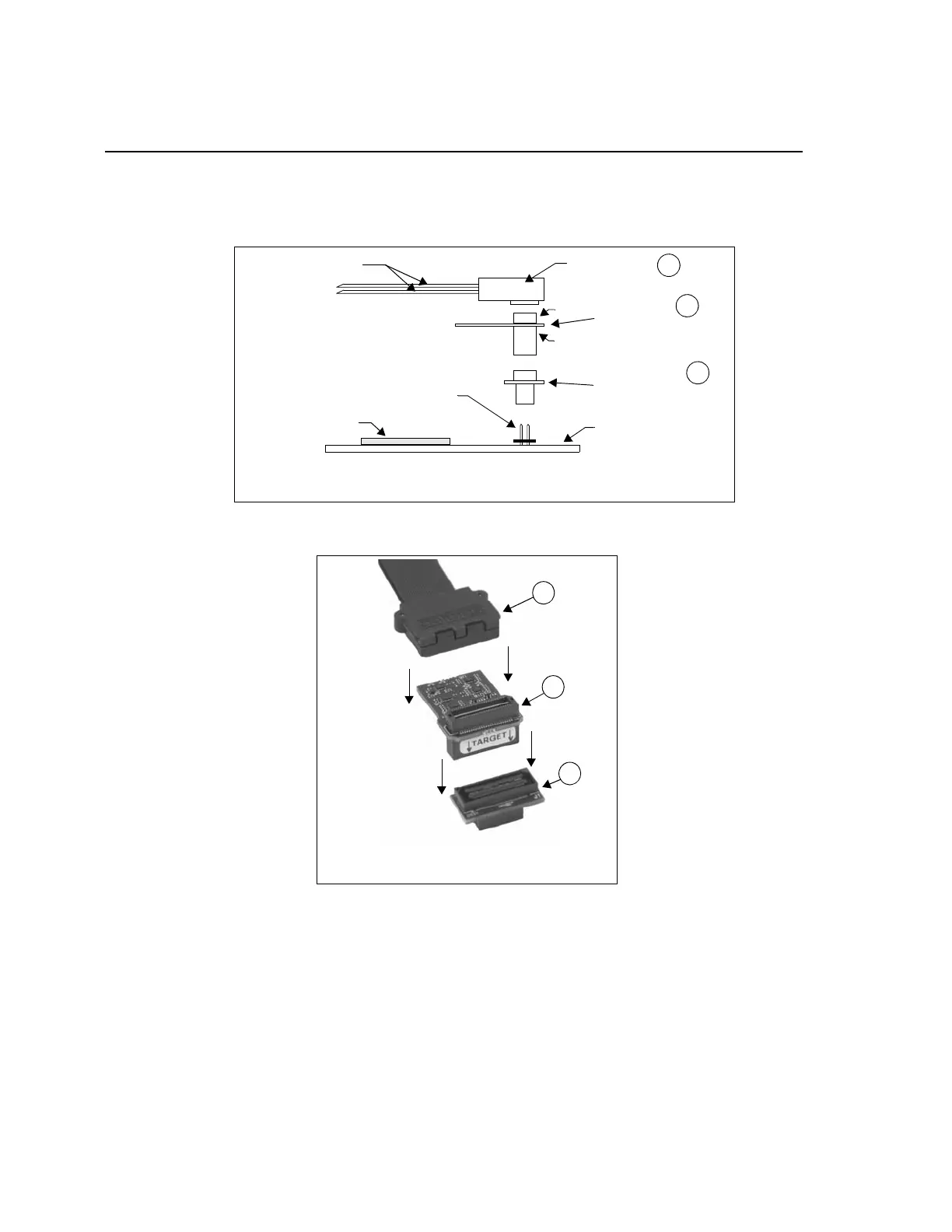

Figure 2-1, Connecting the XDS560v2 STM
JTAG Emulator to the DSP Target Board
J2
J1
Tail Header
Header to
MIPI 60 Adapter
MIPI 60 to
Target JTAG
Adapter
Target JTAG
Connector
A
B
C
Figure 2-2, Tail plugs into MIPI60 which
plugs into CTI20 Adapter
A
B
C
