3.5 Emulator Tail Header Height
The emulator tail header is a stack of plugable adapters. This stack consumes more
physical height than just the target JTAG connector. This height should be taken into
consideration if the target board fits in an enclosure. The figure below shows the
height of the tail header with adapters.

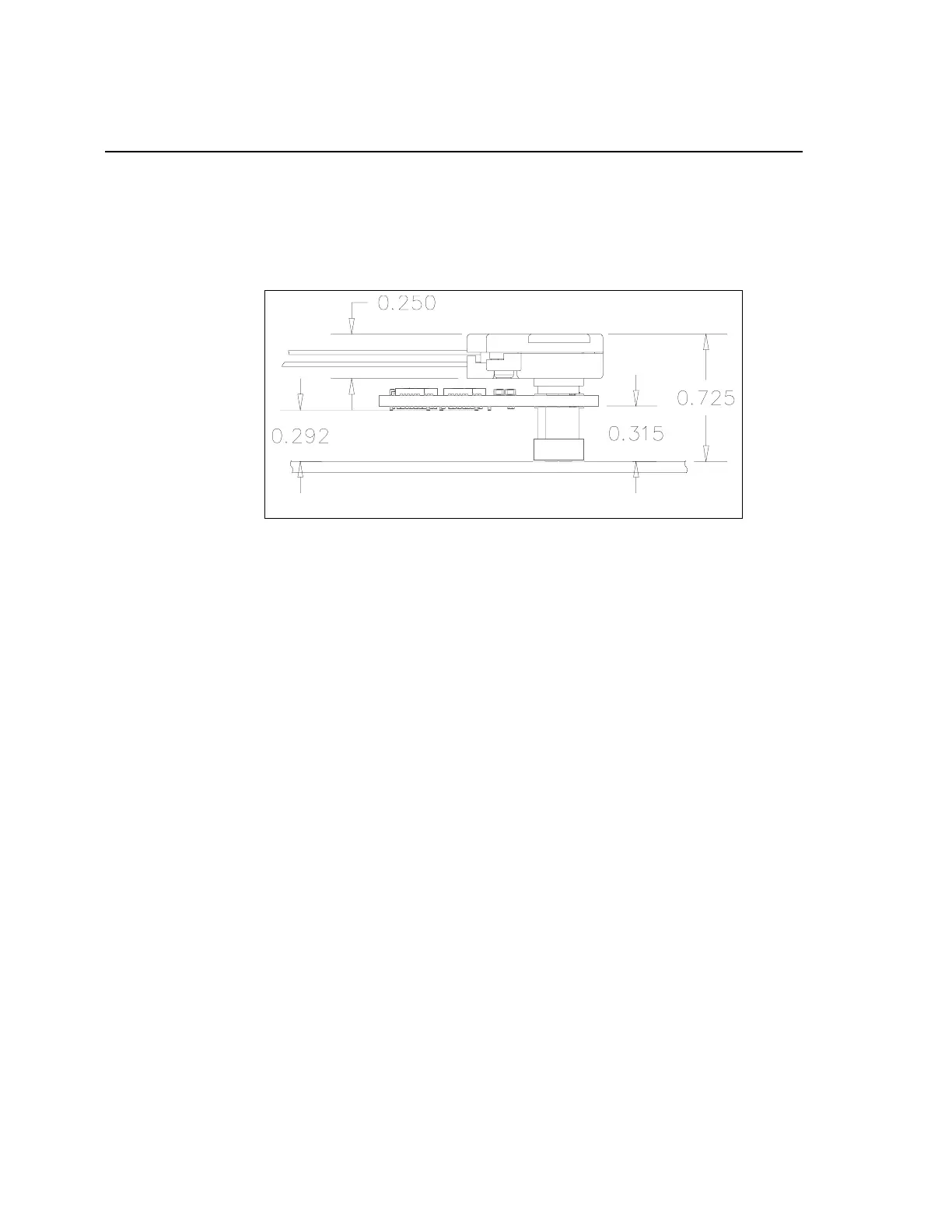

Figure 3-2, XDS560v2 STM Emulator Tail Heights
