3.1 Designing Your Target System’s Emulator Connector
The XDS560v2 STM JTAG emulator tail provides the MIPI 60 interface. If your target
board cannot use or accommodate this connector a target adapter will be required.
Some common target board interfaces are:
- TI 14 pin (2 x 7)
- ARM 20 pin (2 x 10)
- TI 60 pin 9 4 x 15)
- TI 20 CTI (2 x 10)
For more information about the signals on these pins of the above connectors and their
physical characteristics please refer to the specifications for these interfaces on the
vendors web site. These specification will also provide guidelines for the use of the
interfaces.
3.2 References
The following references can assist an engineer in the design and layout of the JTAG
interface on a target board.
- Texas Instruments document SPRU655d.pdf
- MIPI Alliance Recommendation for Test and Debug: Debug and MIP System
Trace Connectors, Version 1.00.00, 5 June 2007
3.3 Physical Layout of MIPI 60 Connector
The following two figures show the 60 pin MIPI header on the tail of the XDS560v2
STM JTAG emulator and the mating connector on an adapter or target board.

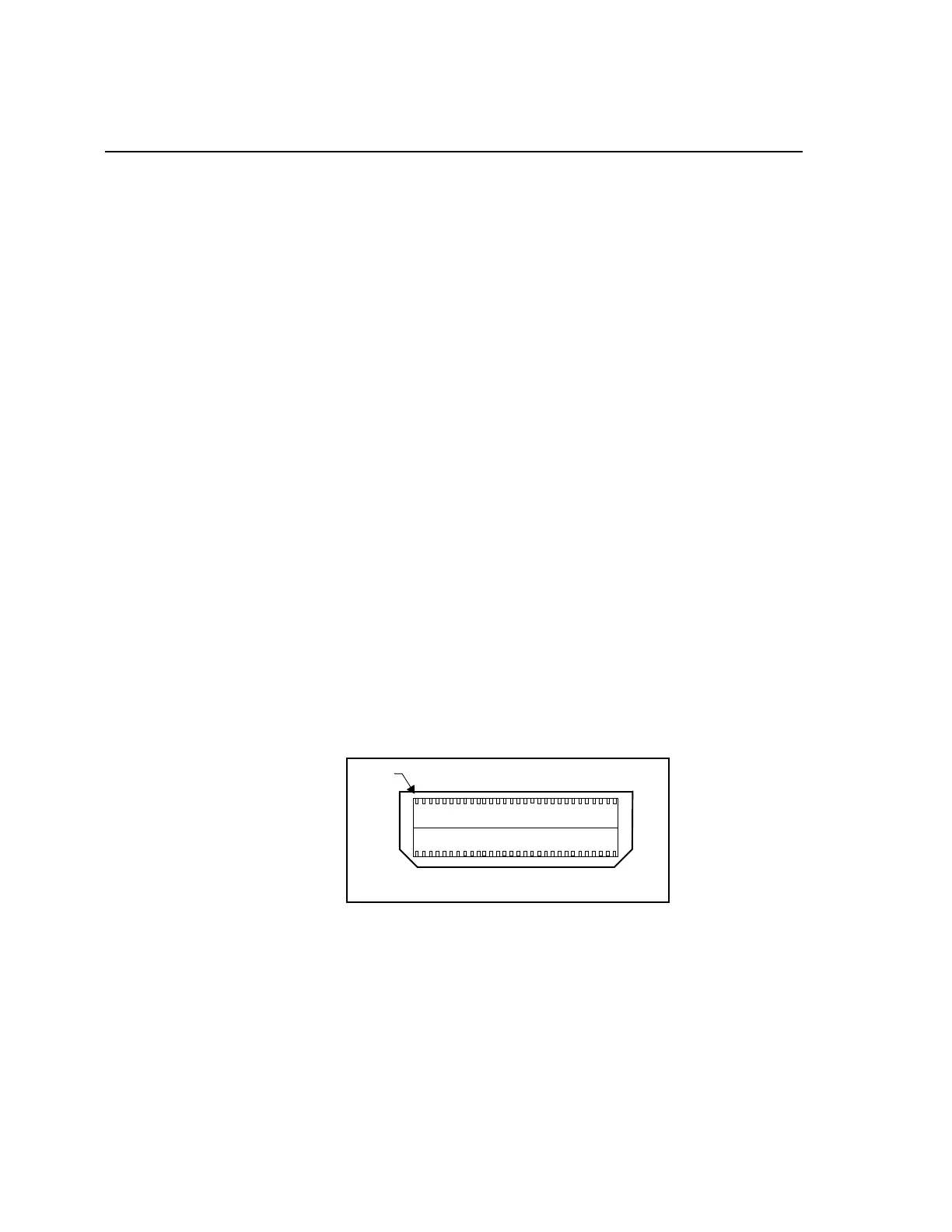

Figure 3-1, XDS560v2 STM MIPI 60 Header
Pin 1
