Spectrum Oxford Series User Manual

Logo/Company Name
4”w x .75”h

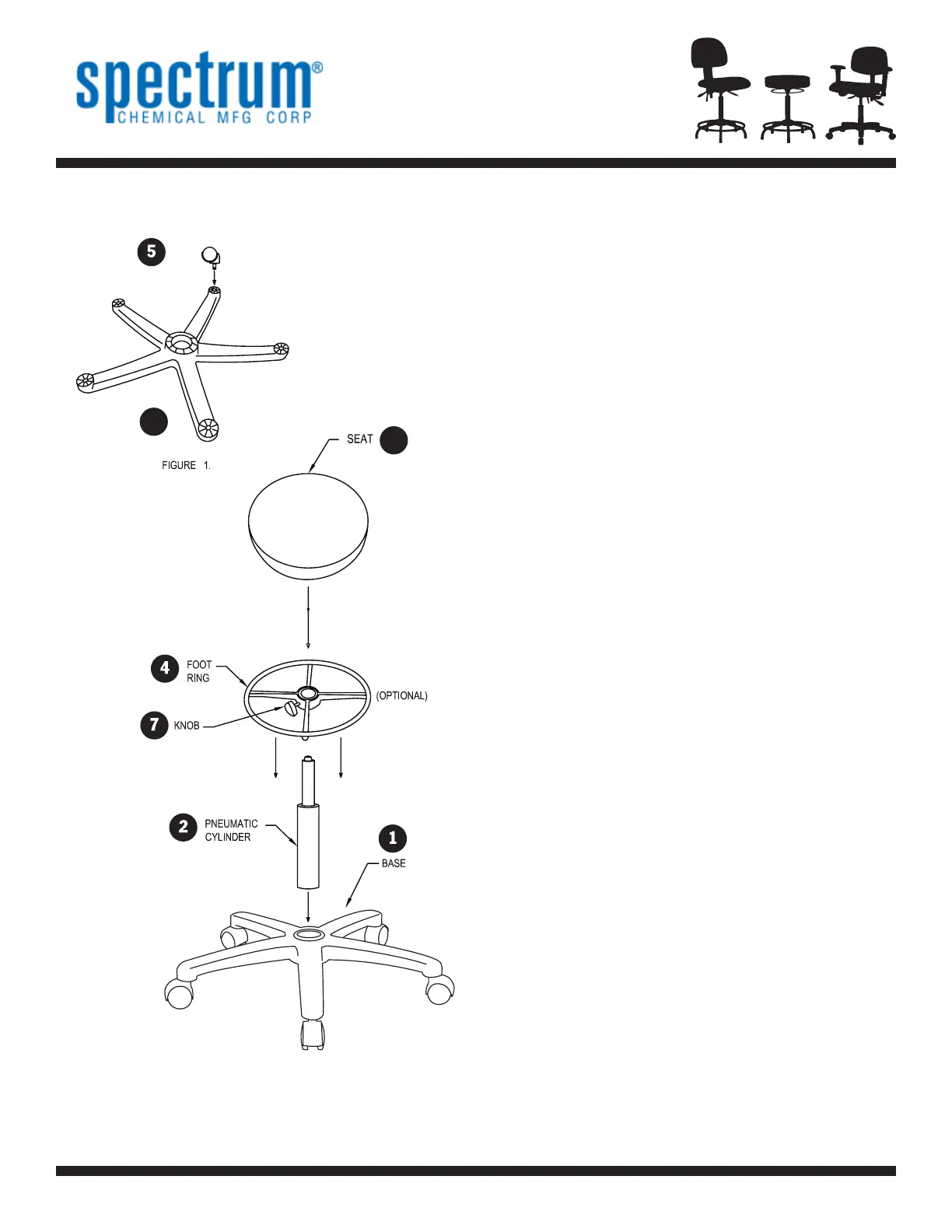

Assembly Instructions
1) Remove base, pneumatic cylinder, seat, foot
ring (if included) and caster/glides from box.
2) Place base (1) upside down and insert
casters/glides (5) (see gure 1).
3) Slide optional foot ring (4) over pneumatic
cylinder from bottom (2) about halfway up
the cylinder and tighten knob (7).
4) Flip the base so casters/glides are on the
oor and insert pneumatic cylinder (2) as
shown in (gure 2) into center hole of base
with colored button up. Lightly push down.
Adjust foot ring to desired height
5) Align the center hole of the underside of
the seat assembly (3) with the top of the
pneumatic cylinder (2) and lightly push down.
With the weight of your body carefully sit on
the seat. This will press the base, pneumatic
cylinder, and seat together.
6) To raise the height of your stool, take your
weight off of the stool and pull on the ring on
the underside of the seat and adjust.
7) To lower the height of your stool you must be
seated with your weight on the seat - lift up
on the ring.
FIGURE 2.
CASTERS/GLIDES
BASE
1
3
CASTERS
CSO-01
