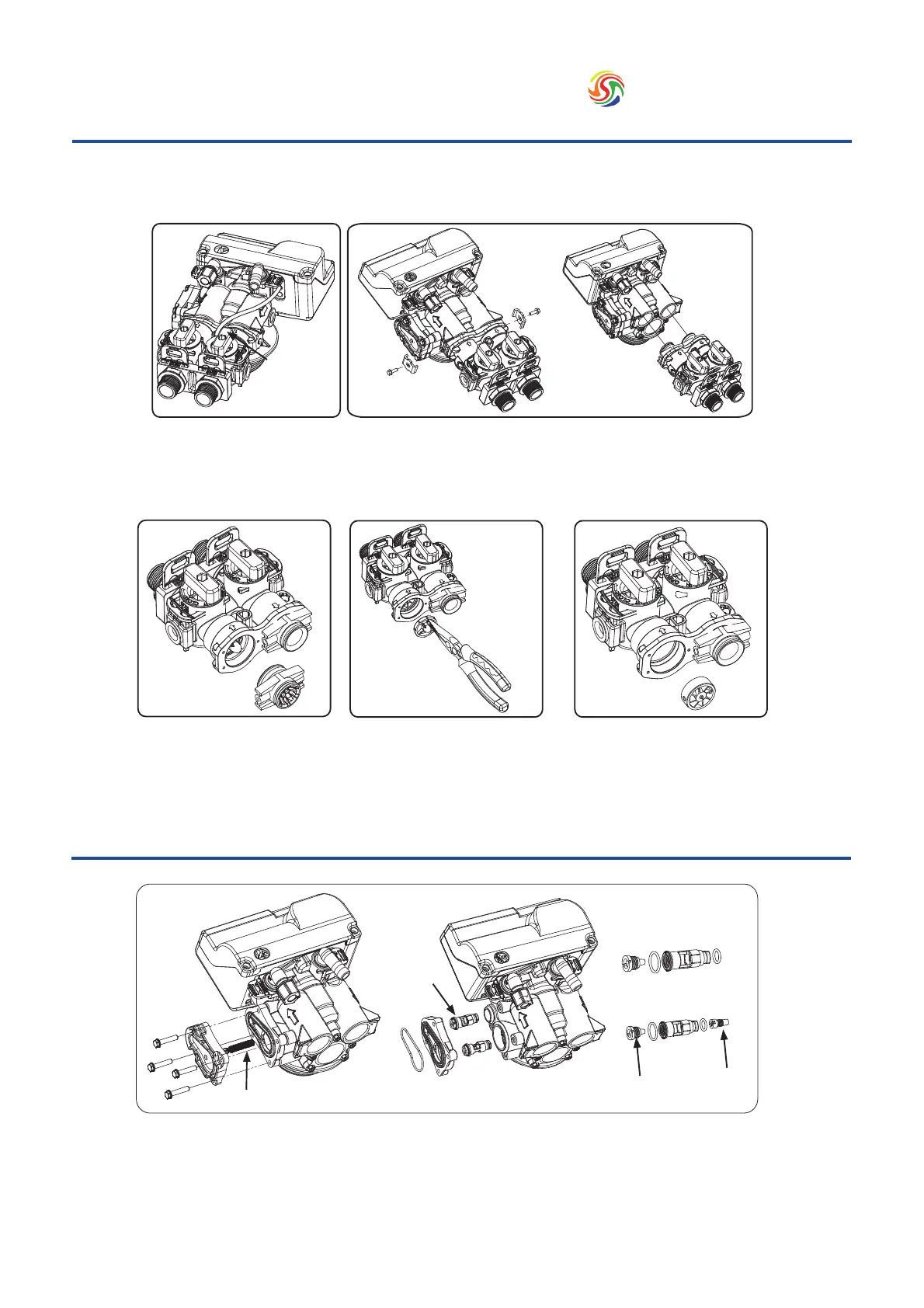

Replace Meter
1. If attached,
disconnect the meter
cable from the meter
2. Disconnect the bypass from the valve by removing clips
3. Remove the coupling
adapter from the bypass
4. Remove the meter
support from the bypass
5. Remove the impeller
and replace
Clean Injector Assembly
1. Remove the four screws on the injector cover.
2. Pull the injector cover out, watch for the screen and O-ring.
3. Pull the injector cap out, pull the injector assembly and injector plug assembly out.
4. Screw the injector nozzle and injector throat out, clean and replace.
5. After servicing, reverse the steps in this section.
Meter cable
2 x screws
2 x clips
Coupling adaptor
Meter support
Meter
Screen
Injector
plug
assembly
O-ring
on cap
Injector
nozzle
plug
Injector
nozzle
Injector
throat
