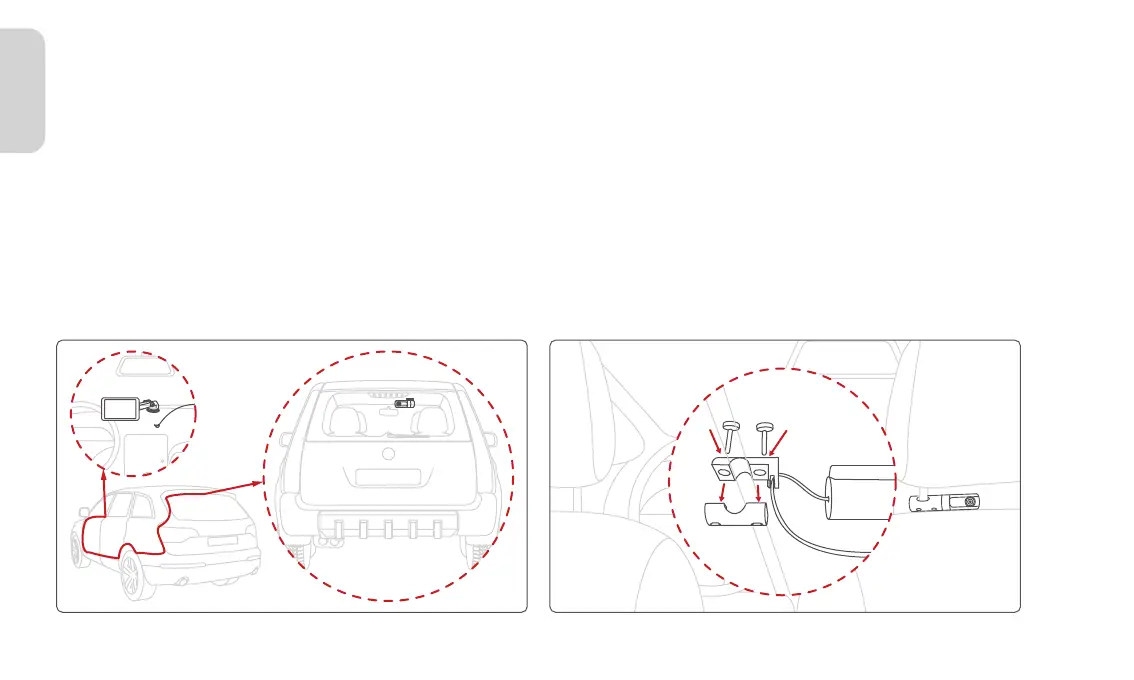

2.6.2 Rear Windshield
1. Thread the camera's wire through the hole on the adhesive
bracket, and following the direction of the arrow, tighten and
rotate the bracket with the camera, ensuring they are securely
fastened together.
2.Peel off the protective film from the adhesive bracket, and
attach the bracket to the vehicle's rear windshield. Press firmly
to ensure it adheres securely.
3.Use the camera extension cable to connect the camera to the
device.
4.Adjust the angle of the lens.
2.6.3 Headrest Support Rod
1. Thread the camera's wire through the two wire holes on the
support pole bracket.
2.Following the direction of the arrow, tighten and rotate the
bracket with the camera, ensuring they are securely fastened
together.
3.Attach the bracket to the headrest support pole.
4.Secure the bracket using the screws provided in the accesso-
ries.
5.Use the camera extension cable to connect the camera to the
device.
6.Adjust the angle of the lens.
